Description

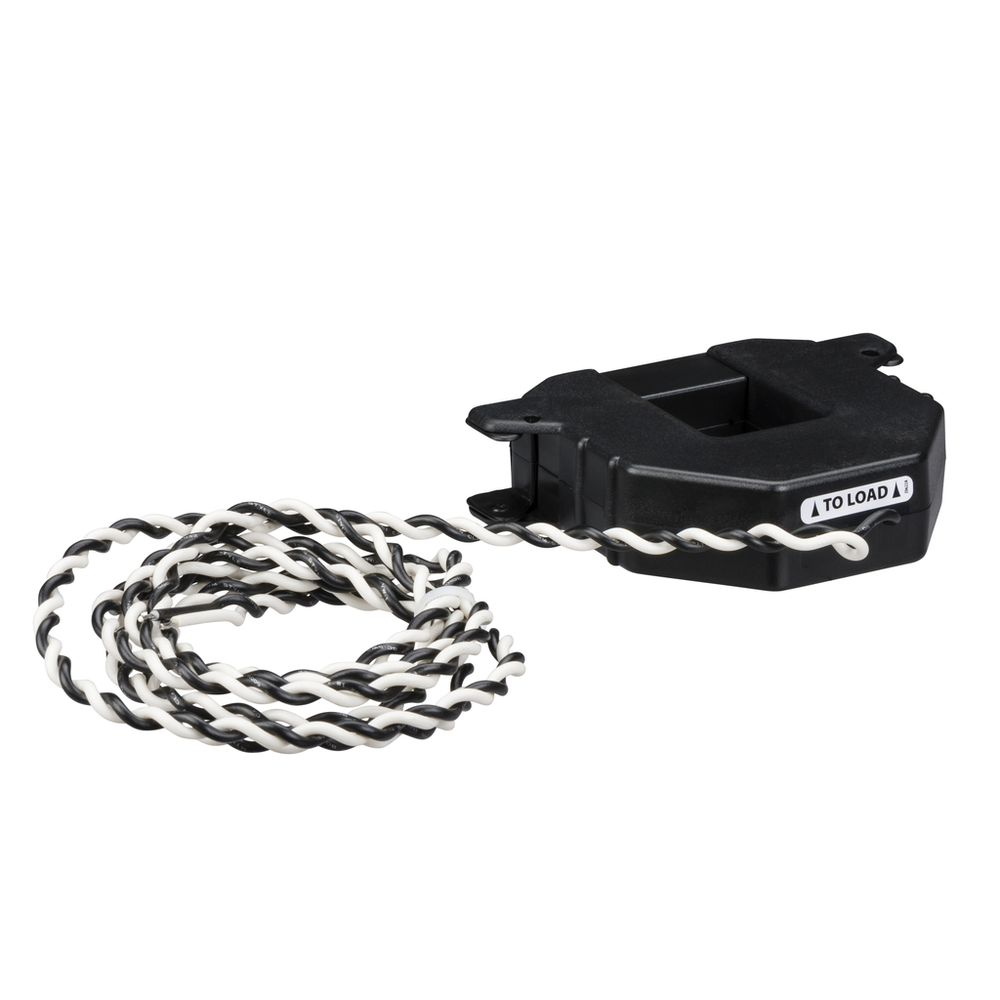

This current transformer, has a line rated current of 0600 A and a secondary current rating of 5 A. Size type 3 with core opening of 2.45 inches by 2.89 inches. Compatible with PowerLogic family of meters, and Acti 9 energy meters. Burden and accuracy class as follows class 1 maximum power 5 VA.Square D - PowerLogic 3090 SCCT - split core CT - 600/5 A - size 3 - 5 VA
Schneider Electric 3090SCCT063 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Current Transformer Ratio
- 600/5
- Current Transformer Type
- split core
- Depth
- 29 mm
- Electrical Connection
- 1.8 m AWG 18 flying leads
- Height
- internal 73 mm || external 141 mm
- Insulation
- basic insulation 600 V AC || reinforced insulation 300 V AC
- Measurement Accuracy
- 1 % full scale
- Mounting Location
- indoor use only
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Primary Operational Current
- 600 A
- Range Compatibility
- PowerLogic (PowerLogic PM3000) power meter || PowerLogic (PowerLogic PM5000) power meter || PowerLogic (PowerLogic PM8000) power meter || PowerLogic (PowerLogic ION7400) power meter || PowerLogic CM4000T circuit monitor || Acti 9 (Acti9 iEM3000) energy meter
- Secondary Current
- 5 A
- Secondary Power
- 5 VA
- Width
- internal 62 mm || external 150 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -15-60 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Installation Category
- III
- Operating Altitude
- <= 9842.52 ft (3000 m)
- Pollution Degree
- 2
- Relative Humidity
- 0-95 % non-condensing
- Standards
- UL 1015 || IEC 61010-1 || UL 61010-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Accessory / Separate Part Category
- measurement accessory
- Product Or Component Type
- current transformer
- Range
- PowerLogic
