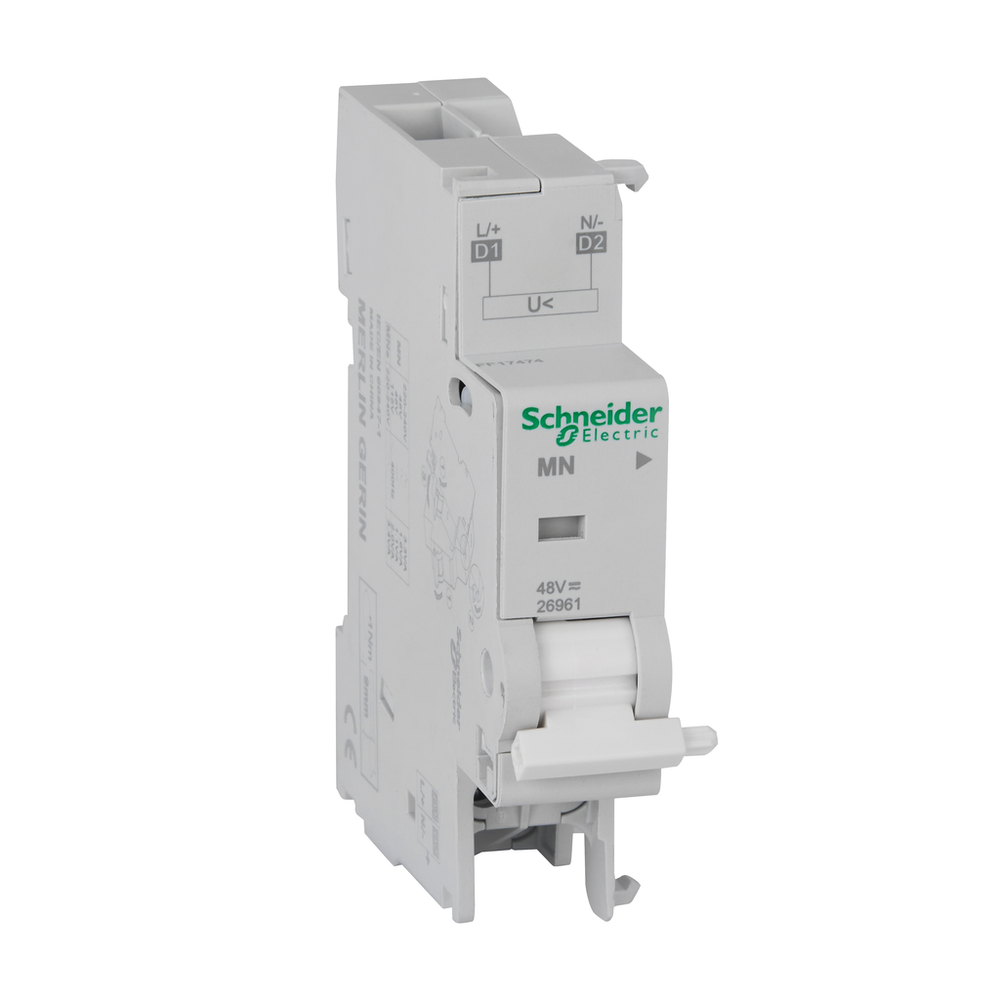

Schneider Electric 26961
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Schneider Electric 26961 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- clamp terminal - 1 2.5-2.5 mm² - flexible || clamp terminal - 1 2.5-2.5 mm² - rigid || clamp terminal - 2 1.5-1.5 mm² - flexible || clamp terminal - 2 1.5-1.5 mm² - rigid
- Depth
- 68 mm
- Height
- 82.5 mm
- Local Signalling
- action indicator
- Mounting Mode
- fixed
- Mounting Support
- 35 mm symmetrical DIN rail
- Range Compatibility
- Multi9 (Multi9 C60) || Multi9 (Multi9 N40) || Acti 9 (Acti9 iDPN)
- Tightening Torque
- 1-1 N.m
- Width
- 18 mm
- Wire Stripping Length
- 9 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-50 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Product Certifications
- ASEFA || LCIE || KEMA || ASTA
- Relative Humidity
- 95-95 % 55-55 °C
- Standards
- EN/IEC 60947-5-1
- Tropicalisation
- 2 EN/IEC 60947-5-1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1305023
- Environmental Disclosure
- ENVPEP1305023
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- 9 Mm Pitches
- 2
- Control Type
- standard
- Device Short Name
- MN
- Product Or Component Type
- undervoltage release
- Range
- Multi9
- [Uc] Control Circuit Voltage
- 48 V AC 50/60 Hz || 48 V DC
