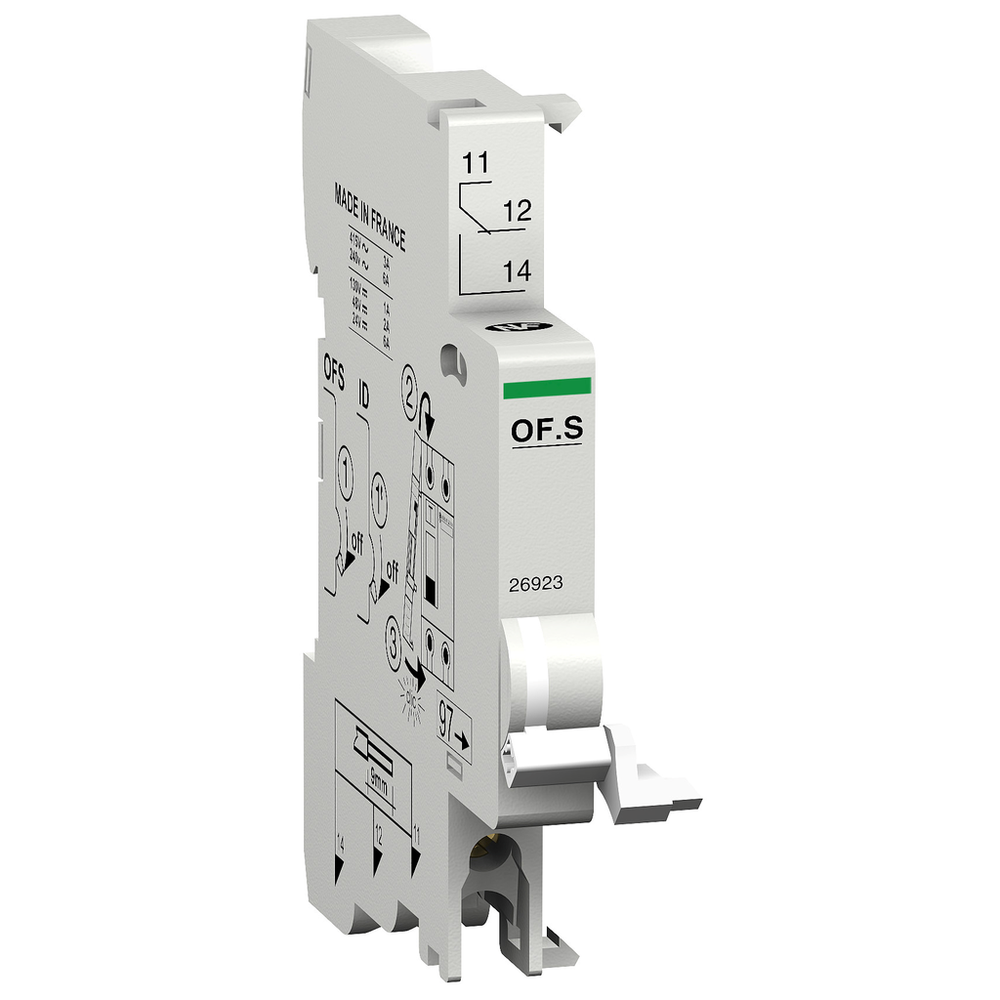

Schneider Electric 26923
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Multi9 auxiliary contact is an open/close contact (OC). It is fixed on DIN rail. The In rated current is 6A at 240VAC with a 50/60Hz frequency.Auxiliary contact, Multi9, 1C/O, 1A to 6A, 220VAC to 415VAC, 24VDC to 130VDC, top connection, for RCCB only
Schneider Electric 26923 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Comb Busbar And Distribution Block Compatibility
- top YES
- Connections - Terminals
- clamp terminal2 1.5-1.5 mm² - flexible || clamp terminal2 1.5-1.5 mm² - rigid || clamp terminal1 0.5-2.5 mm² - flexible || clamp terminal1 0.5-2.5 mm² - rigid
- Depth
- 73 mm
- Height
- 84 mm
- Mounting Mode
- fixed
- Mounting Support
- DIN rail
- Tightening Torque
- 1-1 N.m
- Width
- 9 mm
- Wire Stripping Length
- 9 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-50 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP20 conforming to EN/IEC 60947-5-1
- Pollution Degree
- 3 EN/IEC 60947-5-1
- Product Certifications
- NEMKO || DEMKO || SEMKO || CEBEC || FIMKO
- Relative Humidity
- 95-95 % 55-55 °C
- Standards
- EN/IEC 60947-5-1
- Tropicalisation
- 2 EN/IEC 60947-5-1
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- 9 Mm Pitches
- 1
- Device Short Name
- OFS
- Line Rated Current
- AC-12 3-3 A at 380...415 V, AC 50/60 Hz || AC-12 6-6 A at 220...240 V, AC 50/60 Hz || DC-12 1-1 A at 130 V, DC || DC-12 1.5-1.5 A at 60 V, DC || DC-12 2-2 A at 48 V, DC || DC-12 6-6 A at 24 V, DC
- Product Or Component Type
- OC contact
- Range
- Multi9
- Signal Contacts Composition
- 1 C/O
