Description

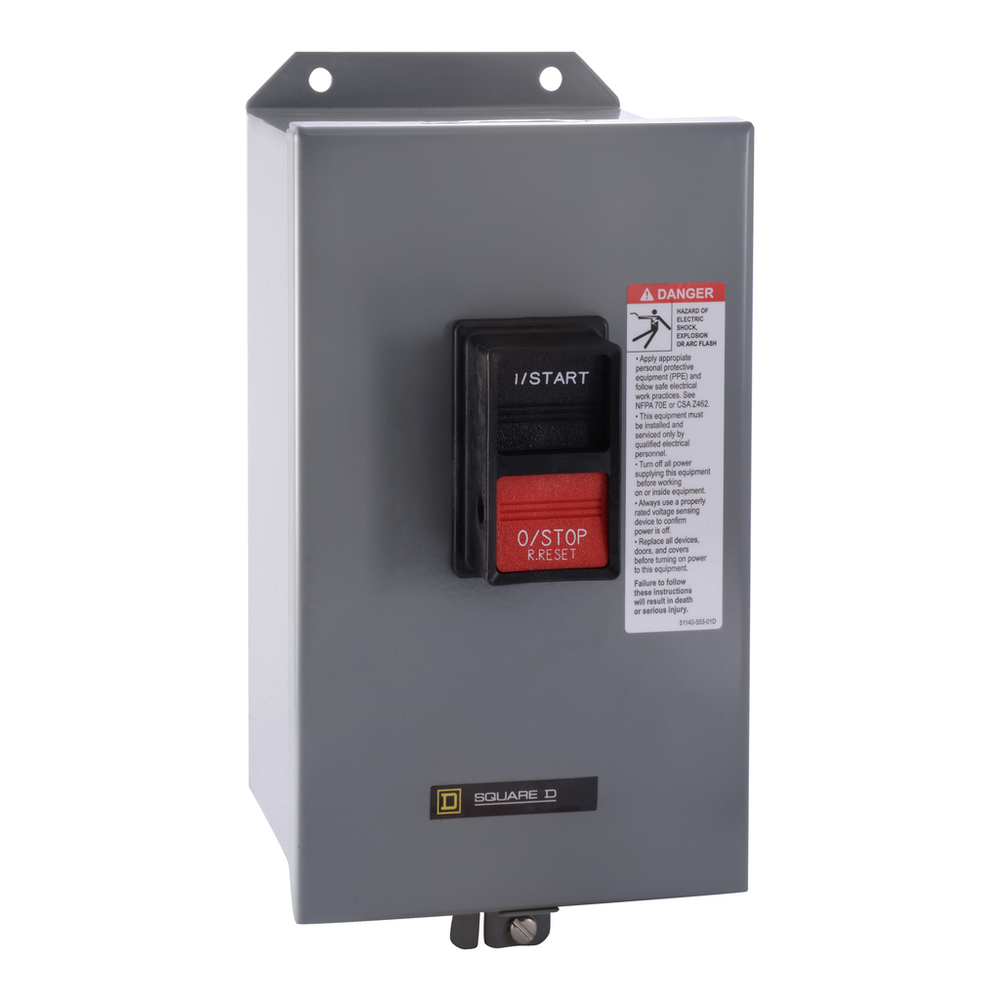

2510M manual motor starters are designed for manual On Off control for small motors. This three pole starter is rated for 7.5 HP at 230 VAC and 10 HP at 480 VAC three phase motors. This starter is NEMA M-1 rated. The proper thermal unit must be selected and ordered separately to provide proper overload protection for the motor. 2510M manual starters can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 12 dust tight and drip tight enclosure. Enclosure as a provision to allow padlocking of this device. 2510M manual starters are UL listed and CSA certified. A NEMA 12 dusttight and driptight industrial use enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 10.92 inches tall, 5.78 inches wide and 5.76 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.Manual Starter, integral horsepower, NEMA M1, 600 VAC, 3 pole, 10 HP at 380/575 VAC, three phase, no indicator, NEMA 12
Schneider Electric 2510MCA3 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Auxiliary Contact Composition
- without
- Awg Gauge
- AWG 14...AWG 8 copper
- Control Type
- push-button
- Depth
- 5.76 in
- Electrical Connection
- pressure wire clamp
- Height
- 10.92 in
- Local Signalling
- no indicator
- Maximum Horse Power Rating
- 7.5-7.5 hp 200...230 V AC, 3 phase || 10-10 hp 380...575 V AC, 3 phase
- Motor Starter Type
- non reversing
- Number Of Thermal Units Required
- 3
- Poles Description
- 3P
- Thermal Overload Type
- melting alloy
- [Ue] Rated Operational Voltage
- 600 V AC
- Width
- 5.78 in
Contractual warranty
- Warranty
- 18 months
Environment
- Nema Degree Of Protection
- NEMA 12 painted sheet steel
- Product Certifications
- UL listed file E42243 CCN NLRV || CSA LR60905 class 3211 05
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Nema Size
- M-1
- Product Or Component Type
- Manual Starter
- Range Of Product
- M
