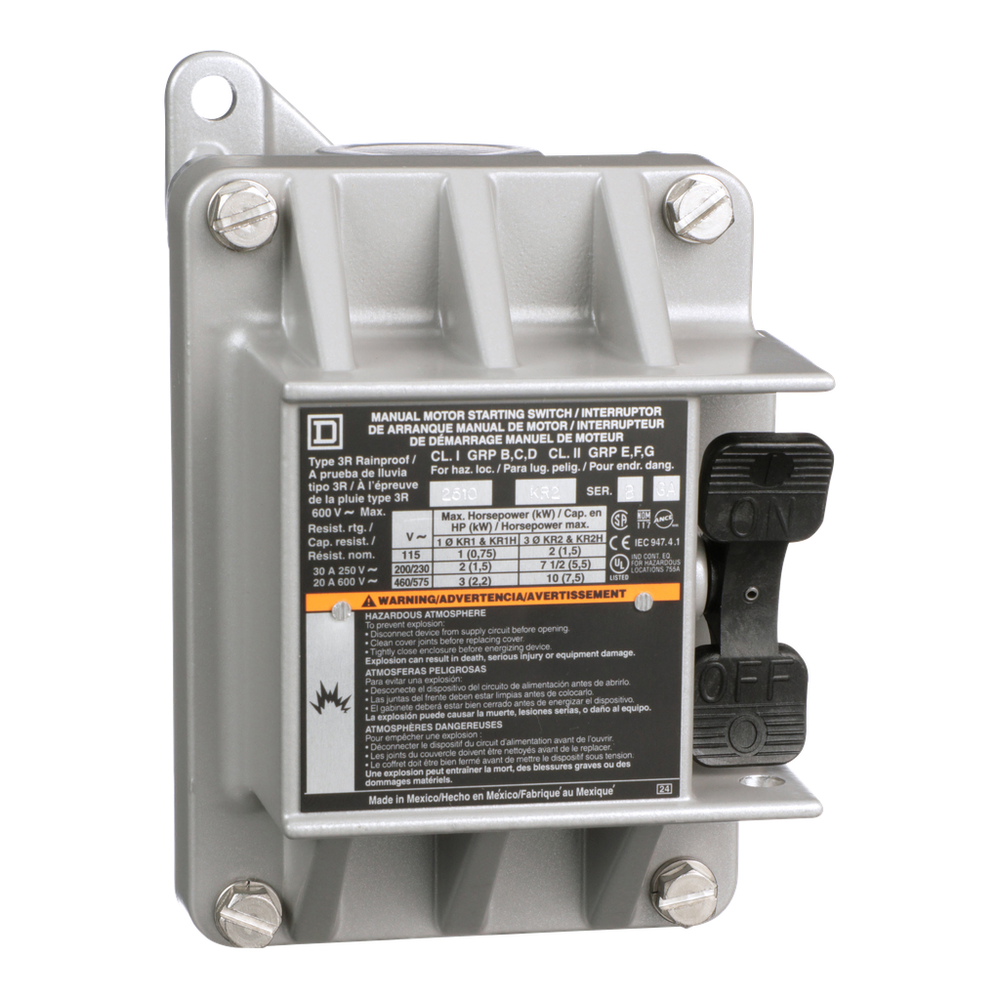

Schneider Electric 2510KR2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
2510K manual motor switches are designed for manual On Off control for small motors. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, and 10 HP at 600VAC three phase. It is also rated for 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC motors. Overload protection for the motor must be supplied separately. 2510K switches can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 7&9 hazardous location enclosure. A 3/4 inch conduit opening is on the bottom of the enclosure. Enclosure as a provision to allow padlocking of this device. 2510K manual switches are UL listed and CSA certified. This switch has no pilot light indicator. A cast aluminum NEMA 7 and 9 hazardous location, Class 1, Groups B, C & D and Class II, Groups E, F, & G enclosure is used to protect this starter. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. Enclosure is 6.36 inches tall, 3.95 inches wide and 4.35 inches deep. This device is UL Listed and CSA certified.Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 7/9, one conduit opening
Schneider Electric 2510KR2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 14...AWG 10 copper
- Cable Entry
- 0.75 NPT (bottom)
- Control Type
- toggle
- Depth
- 4.35 in
- Electrical Connection
- screw clamp terminals
- Height
- 6.36 in
- Line Rated Current
- 20 A
- Local Signalling
- no indicator
- Maximum Horse Power Rating
- 2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
- Motor Starter Type
- non reversing
- Phase
- 3 phase
- Poles Description
- 3P
- [Ue] Rated Operational Voltage
- 600 V AC || 230 V DC
- Width
- 3.95 in
Contractual warranty
- Warranty
- 18 months
Environment
- Nema Degree Of Protection
- NEMA 3R/7/9 Cast Aluminium standard size
- Product Certifications
- UL listed file E58760 CCN NPXZ || CSA LR26817 class 3218 04
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Specifications
- Product Or Component Type
- Single Unit Manual Switch
- Range Of Product
- K
