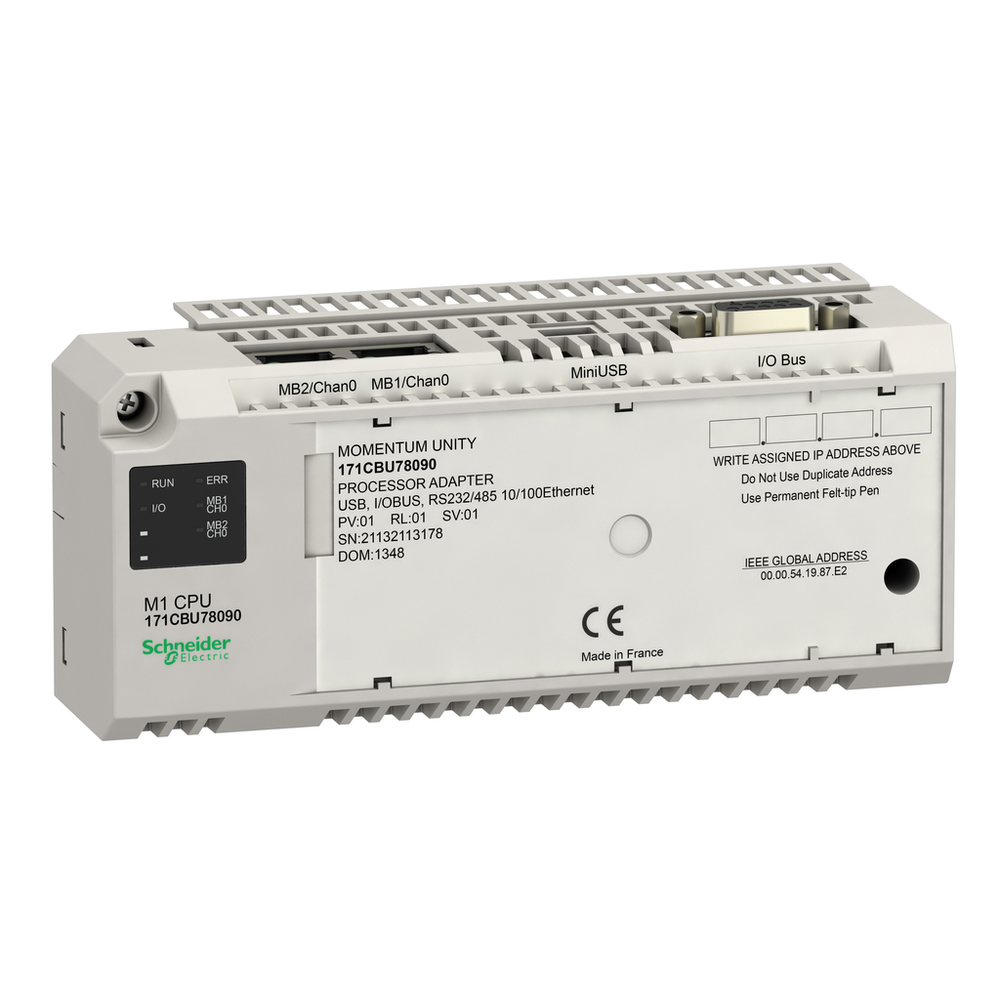

Schneider Electric 171CBU78090
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This processor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1 processor is equipped with USB integrated connection port. The Spear 320s processor offers 125 words Modbus messaging and 200 I/O message per second. The processor is accessible through master/slave method. This processor provides web services like CPU status, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height). It weighs 0.159kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.Unity M1 processor - RS232/485 - USB - I/O bus
Schneider Electric 171CBU78090 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Addressing
- 1...247 Modbus
- Clock Frequency
- 333 MHz
- Communication Port Protocol
- Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire
- Communication Service
- Modbus messaging 100 words, 200 I/O message per second
- Concept
- Transparent Ready class B
- Control Parameter
- CRC-16 for Modbus
- Current Consumption
- 500 mA 5 V DC
- Depth
- 53.47 mm
- Exact Time For 1 Kinstruction
- 83 ns
- Fail State
- safe I/O mode
- Height
- 60.6 mm
- I/O Limit Processor Capacity
- 2048 inputs/2048 outputs
- Local Signalling
- for processor running (RUN) 1 LED (green) || for processor or system fault (ERR) 1 LED (red) || for I/O module fault (I/O) 1 LED (red) || for channel 0 operating (CH0) 1 LED (yellow) || for channel 1 operating (CH1) 1 LED (yellow)
- Marking
- CE
- Memory Description
- program memory IEC 3584 kB || program memory LL984 3584 kB
- Method Of Access
- master/slave
- Module Format
- standard
- Net Weight
- 0.159 kg
- Number Of Devices
- 32 Modbus
- Processor Name
- Spear 320s
- Product Mounting
- 35 mm symmetrical DIN rail
- Register Words
- 26048
- Software Designation
- Unity Pro
- Supply Voltage Limits
- 4.75-5.25 V
- Topology
- multidrop Modbus
- Web Services
- home pages || properties || CPU status
- Width
- 144 mm
- Word Length
- 32 bit
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 0 V not isolated RS485/RS232 || 5000 V for 1 minute RS485
- Ip Degree Of Protection
- IP20
- Material
- lexan
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Product Certifications
- C-tick || FM
- Relative Humidity
- 5-96 %
- Resistance To Electromagnetic Fields
- 15 V/m 80...2700 MHz EN/IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 6 kV contact EN/IEC 61131-2 zone B || 6 kV contact IACS E10 || 8 kV on air EN/IEC 61000-4-2
- Shock Resistance
- 15 gn 11 ms sinusoidal vibrations
- Standards
- EN/IEC 61131-2 || CSA C22.2 No 142 || UL 508
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Integrated Connection Type
- USB port
- Product Or Component Type
- processor
- Range Of Product
- Modicon Momentum automation platform
