Description

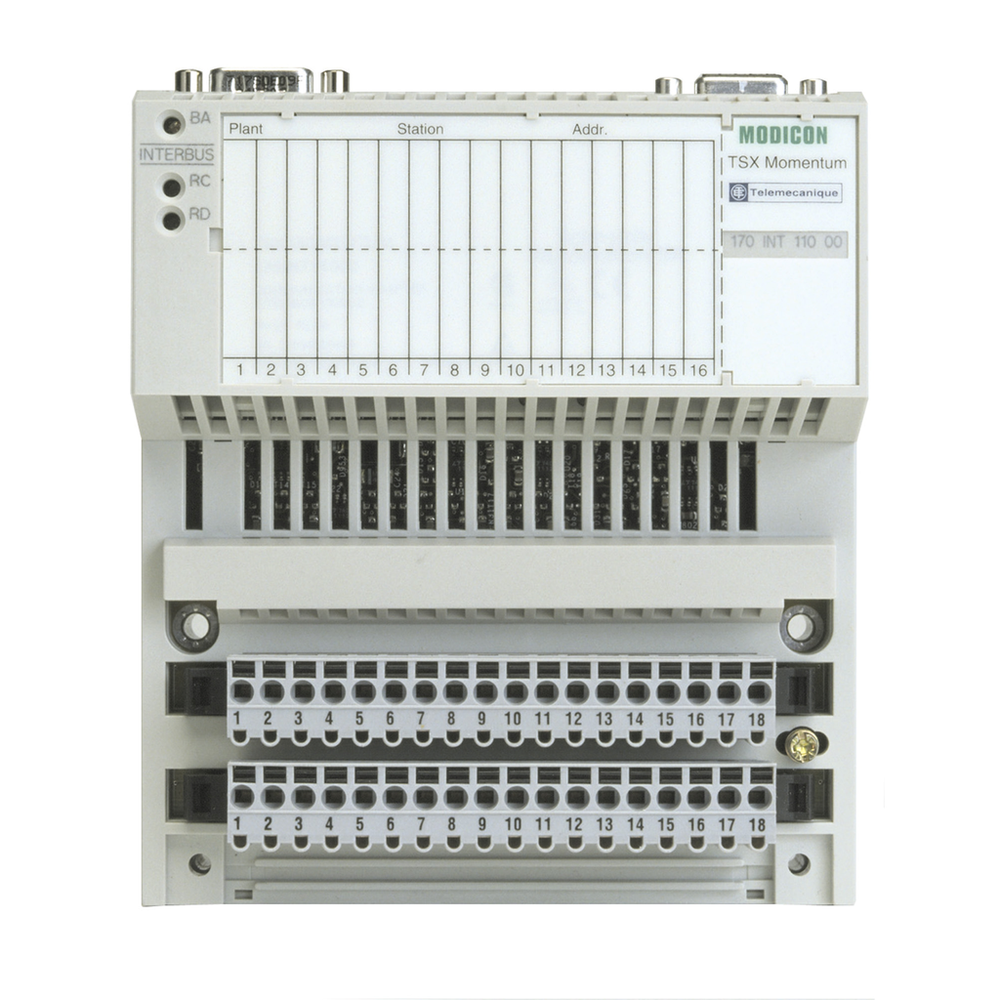

This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. The Interbus communication adaptor supports ring topology. It offers twisted pair cable transmission support medium and 500kbps data transmission rate. The adaptor is accessible through the continuous shift register and master/slave method. It is furnished with 2 D-sub (DE-09) connectors for connecting Interbus. It is an IP20 rated product. It weighs 0.07kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.Modicon Momentum - Interbus communication adaptor - twisted pair
Schneider Electric 170INT11000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Control Parameter
- CRC-16
- Electrical Connection
- 2 connectors SUB-D 9 for connecting Interbus
- Fail State
- fail safe
- Local Signalling
- for bus enable (BA) 1 LED (green) || for remote bus check (RC) 1 LED (green) || for remote bus disabled (RD) 1 LED (green)
- Marking
- CE
- Maximum Cable Distance Between Devices
- 12800 m || 400 m between two modules
- Module Format
- standard
- Net Weight
- 0.07 kg
- Number Of Devices Per Segment
- 0-254
- Supply
- from I/O base
- Topology
- ring
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP20
- Operating Altitude
- <= 16404.2 ft (5000 m)
- Product Certifications
- UL || FM Class 1 Division 2 || CSA
- Protective Treatment
- TC
- Relative Humidity
- 95-95 % without condensation
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Resistance To Electrostatic Discharge
- 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Communication Port Protocol
- Interbus generation SUPI 2
- Method Of Access
- continuous shift register || master/slave
- Product Or Component Type
- Interbus communication adaptor
- Range Of Product
- Modicon Momentum automation platform
- Transmission Rate
- 500 kbit/s
- Transmission Support Medium
- twisted pair
