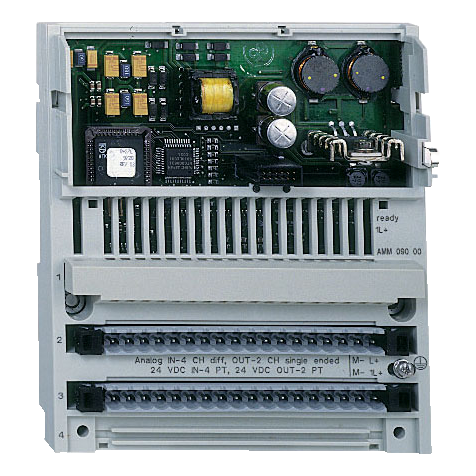

Schneider Electric 170AMM09000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analogue/discrete module has 1 group of 2 discrete outputs, 4 discrete inputs, 4 analogue differential inputs and 2 analogue output with positive discrete input logic. It is an analogue/discrete module with a rated supply voltage of 24V DC, a discrete output current of 1A per point, 2A per group, 2A per module and a maximum power dissipation of 6W. It is furnished with 2 connectors for removable terminal blocks. Analogue input range of this product is ±10V, ±20mA, ±5V, 1V to 5V, 4mA to 20mA and analogue output range is ±10V 12bit and 0mA to 20mA 12bit. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height) and weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.distributed analog/discrete I/O Modicon Momentum
Schneider Electric 170AMM09000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Common Mode Rejection
- > 54 dB analogue input circuit
- Conversion Consistency
- +/- 0.02 % +/- 10 V analogue input circuit || +/- 0.04 % +/- 20 mA analogue input circuit || +/- 0.04 % +/- 5 V analogue input circuit || +/- 0.04 % 1...5 V analogue input circuit || +/- 0.04 % 4...20 mA analogue input circuit
- Conversion Error
- +/- 0.35 % +/- 10 V 25 °C analogue output || 0,0016 4...20 mA 25 °C analogue input circuit || 0,003 +/- 20 mA 60 °C analogue input circuit || 0,003 +/- 5 V 60 °C analogue input circuit || 0,003 1...5 V 60 °C analogue input circuit || 0,003 4...20 mA 60 °C analogue input circuit || +/- 0.35 % 0...20 mA 25 °C analogue output || +/- 0.70 % +/- 10 V 60 °C analogue output || +/- 0.70 % 0...20 mA 60 °C analogue output || 0,0008 +/- 10 V 25 °C analogue input circuit || 0,0015 +/- 10 V 60 °C analogue input circuit || 0,0016 +/- 20 mA 25 °C analogue input circuit || 0,0016 +/- 5 V 25 °C analogue input circuit || 0,0016 1...5 V 25 °C analogue input circuit
- Conversion Time
- 1 ms analogue output || 10 ms analogue input circuit
- Current Consumption
- <= 350 mA 24 V DC || 200 mA 24 V DC
- Current State 0 Guaranteed
- <= 1.2 mA discrete input)
- Current State 1 Guaranteed
- >= 2.5 mA discrete input)
- Depth
- 47.5 mm
- Discrete Input Logic
- positive
- Discrete Input Number
- 4 IEC 1131-2 Type 1
- Discrete Output Current
- 1 A per point || 2 A per group || 2 A per module
- Discrete Output Logic
- positive
- Discrete Output Type
- transistor
- Electrical Connection
- 2 connectors for removable terminal blocks
- Fail State
- analogue input circuit hold || analogue input circuit reset to zero
- Height
- 125 mm
- Input Overvoltage Protection
- -50-50 V <= 100 s analogue input circuit || -30-30 V 24 V analogue input circuit
- Input Resistance
- 1 MOhm analogue input circuit || 4 kOhm discrete input
- Input Voltage Limits
- < 30 V
- Isolation Voltage
- 500 V 1 min) between analogue I/O and operating voltage || 500 V 1 min) between operating voltage and I/O from ground
- Local Signalling
- for channel status 8 LEDs
- Marking
- CE
- Maximum Leakage Current
- 1 mA DC 24 V discrete output
- Maximum Power Dissipation In W
- 6 W
- Maximum Voltage Drop
- <0.5 V 1 A at state on discrete output
- Net Weight
- 0.24 kg
- Operating Rate
- 100 cyc/s resistive 1 A discrete output || 1000 cyc/h inductive 1 A discrete output || 8 cyc/s tungsten <2.4 W discrete output
- Output Load
- <= 600 Ohm 0...20 mA analogue output || >= 3 kOhm +/- 10 V analogue output
- Response Time
- < 0.1 ms from state 0 to state 1 discrete output || < 0.1 ms from state 1 to state 0 discrete output || 2.2 ms from state 0 to state 1 discrete input || 3.3 ms from state 1 to state 0 discrete input
- [Us] Rated Supply Voltage
- 24 VDC
- Voltage State 0 Guaranteed
- -3...5 V discrete input
- Voltage State 1 Guaranteed
- 11...30 V discrete input
- Width
- 141.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Operating Altitude
- <= 16404.2 ft (5000 m)
- Product Certifications
- UL || CSA || FM Class 1 Division 2
- Protective Treatment
- TC
- Relative Humidity
- 95-95 % without condensation
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Resistance To Electrostatic Discharge
- 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403005EN
- Environmental Disclosure
- ENVPEP1403005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Range
- +/- 10 V || +/- 20 mA || +/- 5 V || 1...5 V || 4...20 mA
- Analogue Input Resolution
- 12 bits 1...5 V || 12 bits 4...20 mA || 13 bits +/- 20 mA || 13 bits +/- 5 V || 14 bits +/- 10 V
- Analogue Input Type
- differential
- Analogue Output Range
- +/- 10 V 12 bits || 0...20 mA 12 bits
- Discrete Input Voltage
- 24 V DC
- Discrete Output Voltage
- <= 30 V
- Group Of Channels
- 1 group of 2 discrete outputs || 1 group of 4 discrete inputs || 1 group of 4 analog differential inputs || 1 group of 2 analog outputs
- Output Overload Protection
- with discrete output
- Output Short-Circuit Protection
- with discrete output
- Product Or Component Type
- analogue,discrete I/O base
- Range Of Product
- Modicon Momentum automation platform
