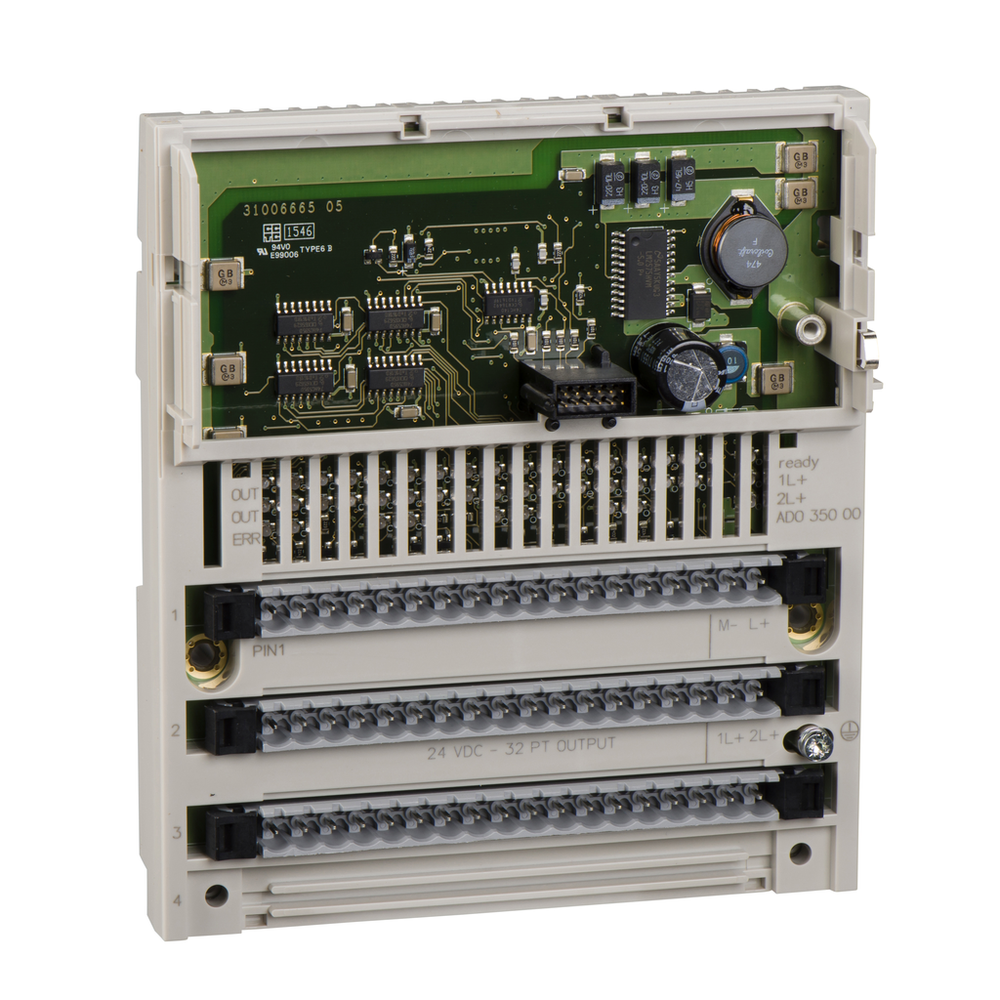

Schneider Electric 170ADO34000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This output module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete output base DC module offers 2 groups of 8 outputs, 16 discrete outputs with solid state switch type. It offers discrete output voltage of 24V DC. There is an isolation between channels and bus at 500V AC. It features 16 LEDs for channel status signaling. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.21kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.discrete output module Modicon Momentum - 16 O solid state
Schneider Electric 170ADO34000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Current Consumption
- 250 mA 24 V DC
- Depth
- 47.5 mm
- Discrete Output Current
- 4 A per group || 8 A per module
- Height
- 141.5 mm
- Isolation Between Channels And Bus
- 500 V AC
- Local Signalling
- for channel status 16 LEDs
- Marking
- CE
- Maximum Leakage Current
- 1 mA 24 V DC
- Maximum Voltage Drop
- <0.5 V 0.5 A at state 1
- Net Weight
- 0.21 kg
- Output Overload Protection
- outputs electronically protected
- Power Dissipation
- 3.5 W typical || 4.5 W maximum
- Response Time
- 0.1 ms from state 0 to state 1 || 0.1 ms from state 1 to state 0
- Surge Current
- 5 A 1 ms
- Terminals Description Plc N°1
- (14)OUT_DIS#14 || (2L+)PW_POS || (L+)PW_POS || (5)OUT_DIS#5 || (1)OUT_DIS#1 || (15)OUT_DIS#15 || (M-)PW_NEG || (12)OUT_DIS#12 || (8)OUT_DIS#8 || (4)OUT_DIS#4 || (16)OUT_DIS#16 || (6)OUT_DIS#6 || (2)OUT_DIS#2 || (10)OUT_DIS#10 || (11)OUT_DIS#11 || TB || (13)OUT_DIS#13 || (7)OUT_DIS#7 || (9)OUT_DIS#9 || (3)OUT_DIS#3 || (1L+)PW_POS
- [Ue] Rated Operational Voltage
- 24 V DC
- Width
- 125 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Operating Altitude
- <= 16404.2 ft (5000 m)
- Product Certifications
- UL || FM Class 1 Division 2 || CSA
- Relative Humidity
- 95-95 % without condensation
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Resistance To Electrostatic Discharge
- 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403005EN
- Environmental Disclosure
- ENVPEP1403005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Current Per Channel
- 0.5 A
- Discrete Output Number
- 16
- Discrete Output Type
- solid state switch
- Discrete Output Voltage
- 24 V DC
- Group Of Channels
- 2 groups of 8 outputs
- Product Or Component Type
- discrete output base DC
- Protective Treatment
- TC
- Range Of Product
- Modicon Momentum automation platform
- Short-Circuit Protection
- outputs electronically protected
