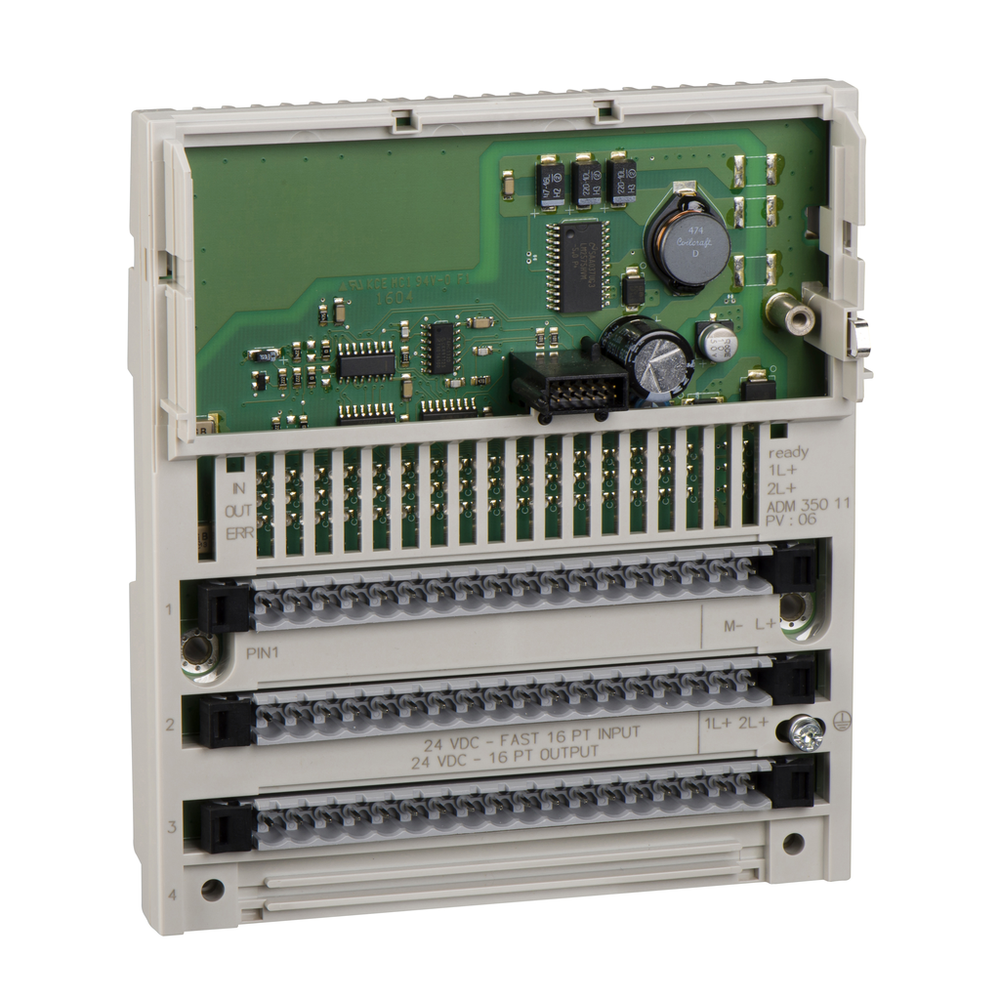

Schneider Electric 170ADM85010

Complementary

• Current Consumption
  • 250 mA 24 V DC || 125 mA 48 V DC || 500 mA 12 V DC
• Current State 1 Guaranteed
  • 2.3 mA 12 V || 2.7 mA 24 V || 2.9 mA 48 V
• Depth
  • 47.5 mm
• Discrete Output Current
  • 0.5 A per point || 7 A 60 °C per module || 8 A 50 °C per group
• Fault Type
  • overload on output
• Height
  • 141.5 mm
• Input Voltage Limits
  • 10...60 V
• Isolation Between Channels And Bus
  • 707 V DC
• Isolation Between Group Of I/O Channels
  • 707 V DC
• Maximum Leakage Current
  • 1 mA 60 V output circuit)
• Maximum Voltage Drop
  • <1 V 0.5 A at state 1 output circuit
• Peak Output Current
  • 5 A
• Power Dissipation
  • 6.0 + (0.144 x number of input points) + (0.25 x number of output points)
• Response Time
  • < 0.1 ms from state 0 to state 1 on output || < 0.1 ms from state 1 to state 0 on output || 2.2 ms from state 0 to state 1 on input || 3.3 ms from state 1 to state 0 on input
• [Us] Rated Supply Voltage
  • 12 V DC || 24 V DC || 48 V DC
• Voltage State 0 Guaranteed
  • < 10 V 48 V || < 2.5 V 12 V || < 5 V 24 V
• Voltage State 1 Guaranteed
  • > 11 V 24 V || > 30 V 48 V || > 7.5 V 12 V
• Width
  • 125 mm

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • 0-60 °C
• Ambient Air Temperature For Storage
  • -40-85 °C
• Operating Altitude
  • <= 16404.2 ft (5000 m)
• Product Certifications
  • FM Class 1 Division 2 || UL || CSA
• Relative Humidity
  • 95-95 % without condensation
• Resistance To Electromagnetic Fields
  • 10 V/m 80...1000 MHz IEC 801-3
• Resistance To Electrostatic Discharge
  • 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1403005EN
• Environmental Disclosure
  • ENVPEP1403005EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Discrete Input Logic
  • positive
• Discrete Input Number
  • 16 IEC 1131-2 Type 3
• Discrete Input Voltage
  • 24 V DC || 12 V DC || 48 V DC
• Discrete Output Logic
  • positive
• Discrete Output Number
  • 16
• Discrete Output Type
  • solid state switch
• Discrete Output Voltage
  • <= 60 V DC || 12 V DC || 24 V DC || 48 V DC
• Group Of Channels
  • 1 group of 16 outputs || 1 group of 16 inputs
• Product Or Component Type
  • discrete relay I/O base DC
• Protective Treatment
  • TC
• Range Of Product
  • Modicon Momentum automation platform
