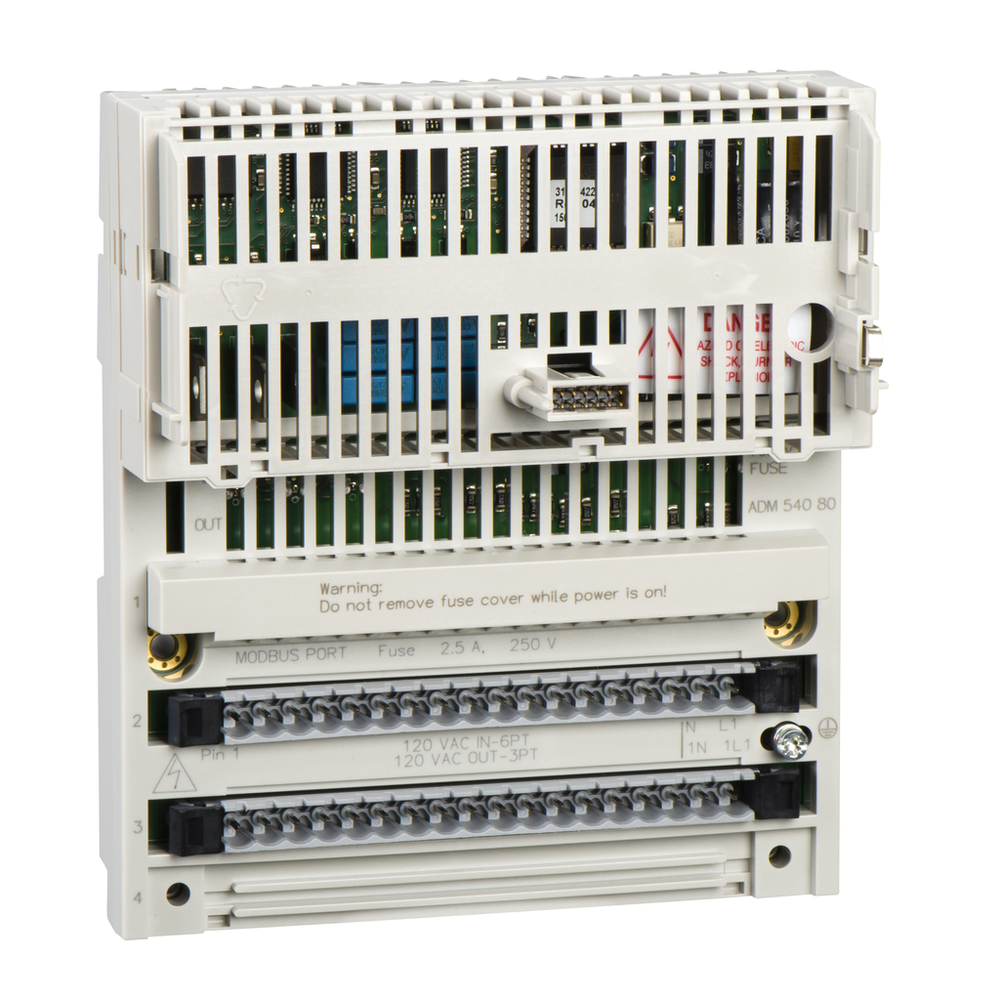

Schneider Electric 170ADM54080
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Modicon Momentum - Modbus I/O module base - 6 I / 3 O
Schneider Electric 170ADM54080 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Port Support
- RS485
- Current Consumption
- 125 mA 120 V
- Current State 0 Guaranteed
- <= 1.9 mA
- Current State 1 Guaranteed
- >= 5.5 mA
- Data Format
- 8-bit RTU || 7-bit ASCII
- Discrete Input Logic
- positive
- Discrete Input Voltage
- 120 V AC 47...63 Hz || 0...132 V AC
- Discrete Output Current
- 0.5 mA per point || 1.5 mA per module
- Discrete Output Logic
- positive
- Discrete Output Voltage
- 120 V 47...63 Hz
- Electrical Connection
- 2 connectors for removable terminal blocks
- Input Overvoltage Protection
- 200-200 V
- Marking
- CE
- Maximum Leakage Current
- 1.9 mA AC 120 V
- Maximum Voltage Drop
- <1.5 V 0.5 A at state on
- Net Weight
- 0.24 kg
- Number Of Addresses
- 0-247
- Port Timeout
- 150 ms
- Response Time
- < 12.3 ms 60 Hz from state 1 to state 0 input circuit || < 12.3 ms 60 Hz from state 1 to state 0 output circuit || < 12.5 ms 60 Hz from state 0 to state 1 input circuit || < 12.5 ms 60 Hz from state 0 to state 1 output circuit
- Surge Current
- 30 mA
- Transmission Rate
- 9600 bit/s || 19200 bit/s
- Voltage State 0 Guaranteed
- <= 20 V
- Voltage State 1 Guaranteed
- >= 79 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Operating Altitude
- <= 16404.2 ft (5000 m)
- Product Certifications
- CSA || UL
- Protective Treatment
- TC
- Relative Humidity
- 95-95 % without condensation
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Resistance To Electrostatic Discharge
- 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403005EN
- Environmental Disclosure
- ENVPEP1403005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Communication Port Protocol
- Modbus
- Discrete Input Number
- 6
- Discrete Output Number
- 3
- Group Of Channels
- 1 group of 6 discrete inputs || 1 group of 3 discrete outputs
- Number Of Port
- 1
- Product Or Component Type
- Modbus I/O module base
- Range Of Product
- Modicon Momentum automation platform
- Wiring Mode
- 2 or 4 wires
