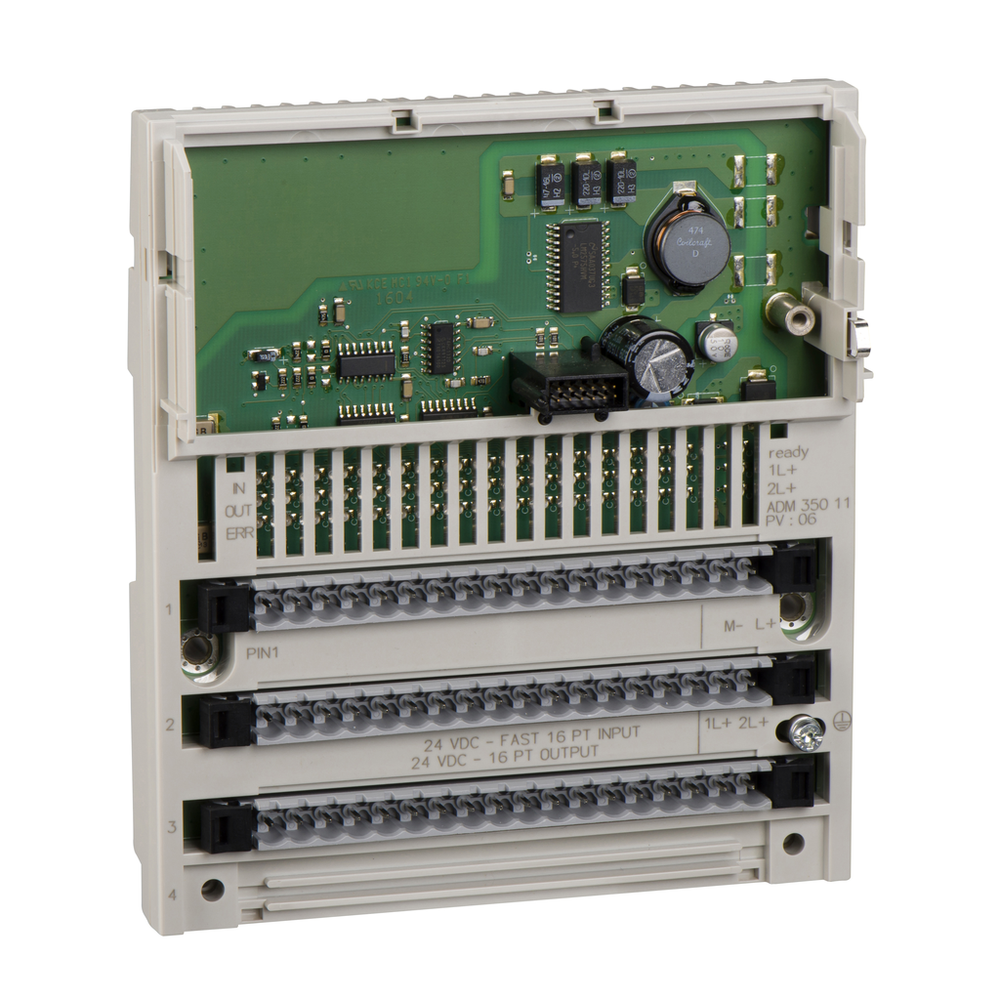

Schneider Electric 170ADM35011
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
discrete I/O module Modicon Momentum - 16 I/O solid state
Schneider Electric 170ADM35011 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Current Consumption
- 250 mA 24 V DC
- Current State 0 Guaranteed
- <= 1.2 mA
- Current State 1 Guaranteed
- >= 2.5 mA
- Depth
- 47.5 mm
- Discrete Output Current
- 4 A per group || 8 A per module || 0.5 A per point
- Fault Type
- overload on output
- Height
- 141.5 mm
- Input Resistance
- 4 kOhm
- Input Voltage Limits
- 3...30 V
- Isolation Between Channels And Bus
- 500 V AC
- Marking
- CE
- Maximum Leakage Current
- 1 mA 24 V output circuit)
- Maximum Voltage Drop
- <0.5 V 0.5 A at state 1 output circuit
- Net Weight
- 0.2 kg
- Peak Output Current
- 5 A
- Power Dissipation
- <= 8 W || 6 W
- Response Time
- < 0.1 ms from state 0 to state 1 on output || < 0.1 ms from state 1 to state 0 on output || 0.06 ms from state 0 to state 1 on input || 0.08 ms from state 1 to state 0 on input
- Terminals Description Plc N°1
- (6)IN_DIS#6 || (1)IN_DIS#1 || (4)IN_DIS#4 || (8)IN_DIS#8 || (14)IN_DIS#14 || (L+)PW_POS || (10)IN_DIS#10 || (3)IN_DIS#3 || (M-)PW_NEG || (12)IN_DIS#12 || (16)IN_DIS#16 || (9)IN_DIS#9 || (11)IN_DIS#11 || (5)IN_DIS#5 || TB || (2)IN_DIS#2 || (15)IN_DIS#15 || (7)IN_DIS#7 || (13)IN_DIS#13
- Terminals Description Plc N°2
- (16)OUT_DIS#16 || TB_1 || (12)OUT_DIS#12 || (13)OUT_DIS#13 || (4)OUT_DIS#4 || (2)OUT_DIS#2 || (10)OUT_DIS#10 || (15)OUT_DIS#15 || (5)OUT_DIS#5 || (6)OUT_DIS#6 || (11)OUT_DIS#11 || (1L+)PW_POS || (9)OUT_DIS#9 || (1)OUT_DIS#1 || (14)OUT_DIS#14 || (2L+)PW_POS || (7)OUT_DIS#7 || (8)OUT_DIS#8 || (3)OUT_DIS#3
- [Us] Rated Supply Voltage
- 24 V DC
- Voltage State 0 Guaranteed
- -3...5 V
- Voltage State 1 Guaranteed
- 11...30 V
- Width
- 125 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Operating Altitude
- <= 16404.2 ft (5000 m)
- Product Certifications
- CSA || UL
- Relative Humidity
- 95-95 % without condensation
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Resistance To Electrostatic Discharge
- 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403005EN
- Environmental Disclosure
- ENVPEP1403005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Input Logic
- positive
- Discrete Input Number
- 16 IEC 1131-2 Type 1
- Discrete Input Voltage
- 24 V DC
- Discrete Output Logic
- positive
- Discrete Output Number
- 16
- Discrete Output Type
- solid state switch
- Discrete Output Voltage
- <= 30 V DC || 24 V DC
- Group Of Channels
- 2 groups of 8 outputs || 1 group of 16 inputs
- Product Or Component Type
- discrete solid state I/O base DC
- Protective Treatment
- TC
- Range Of Product
- Modicon Momentum automation platform
