Description

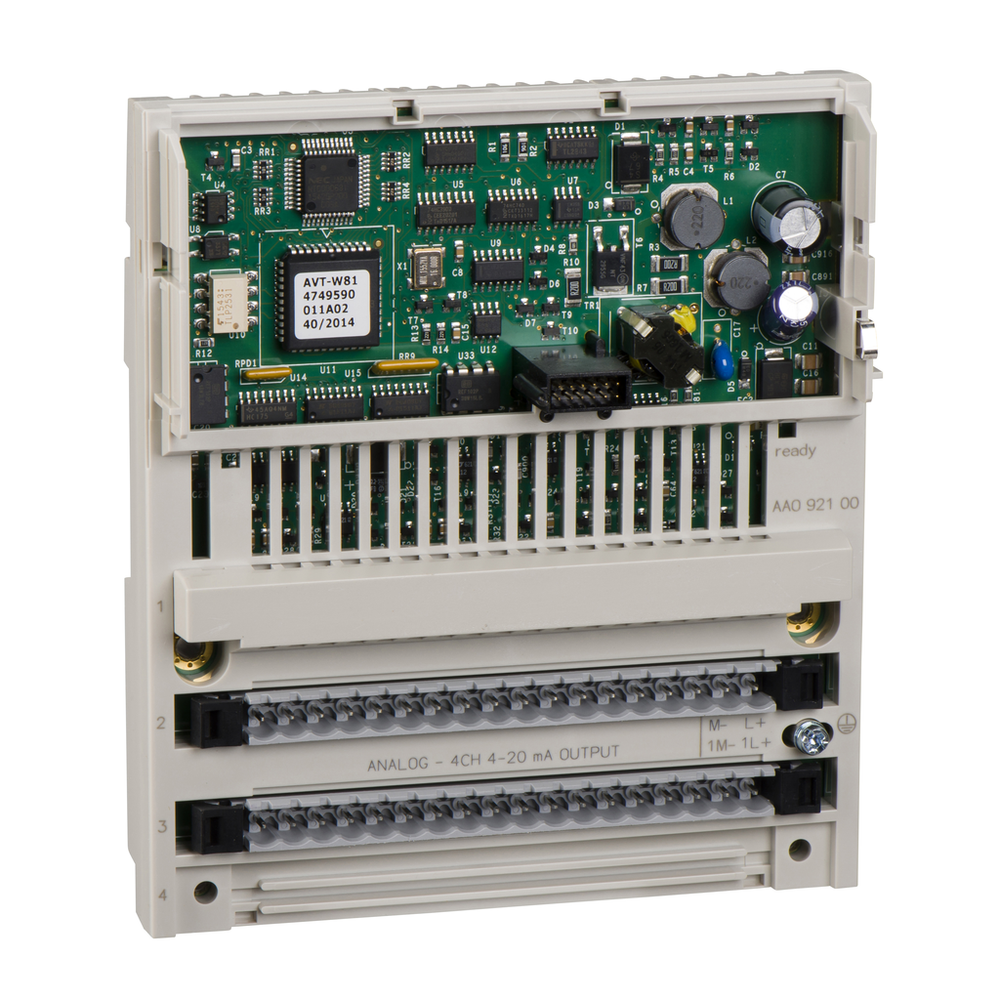

This output base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog output base offers 4 outputs with a full 16bit signed resolution. It offers analog output ranges from ±10V, 0mA to 2mA. There is an isolation between channels and ground at 500V AC. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.distributed analog output Modicon Momentum - 4 Output - 0..20 mA
Schneider Electric 170AAO12000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Accuracy Error
- +/- 0.2 % of full scale +/- 10 V 25 °C || +/- 0.25 % full scale +/- 10 V 60 °C || +/- 0.3 % of full scale 0...20 mA 25 °C || +/- 0.4 % of full scale 0...20 mA 60 °C
- Analogue Output Number
- 4
- Analogue Output Range
- +/- 10 V 12 bits + sign >= 1 kOhm || 0...20 mA 12 bits + sign <= 0.6 kOhm
- Current Consumption
- 150 mA 24 V DC actuator || 530 mA 24 V DC base
- Data Format
- full 16 bits signed
- Depth
- 47.5 mm
- External Power Requirement
- +/- 30 V DC || 24 V DC
- Fail State
- reset to full scale || hold || reset to zero
- Full Scale
- 10 V +/- 10 V || 2 mA 0...20 mA
- Height
- 125 mm
- Isolation Between Channels And Ground
- 500 V AC for 1 minute
- Local Signalling
- for channel status 4 LEDs
- Marking
- CE
- Maximum Load Capacitance
- 1 µF
- Maximum Power Dissipation In W
- 8.5 W
- Module Format
- standard
- Net Weight
- 0.215 kg
- Output Short-Circuit Protection
- with in voltage circuit
- Permissible Common Mode Voltage
- 250 V 47...63 Hz AC between channels to ground || 250 V 47...63 Hz DC
- Protection Type
- internal 2 A slow-blow
- Reverse Polarity Protection
- internal
- Temperature Drift
- 10 %oFS/°C +/- 10 V 60 °C || 30 %oFS/°C 0...20 mA 60 °C
- Update Time
- 2 ms
- Width
- 141.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Operating Altitude
- <= 16404.2 ft (5000 m)
- Product Certifications
- UL || CSA
- Protective Treatment
- TC
- Relative Humidity
- 95-95 % without condensation
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Resistance To Electrostatic Discharge
- 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403005EN
- Environmental Disclosure
- ENVPEP1403005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- analogue output base
- Range Of Product
- Modicon Momentum automation platform
