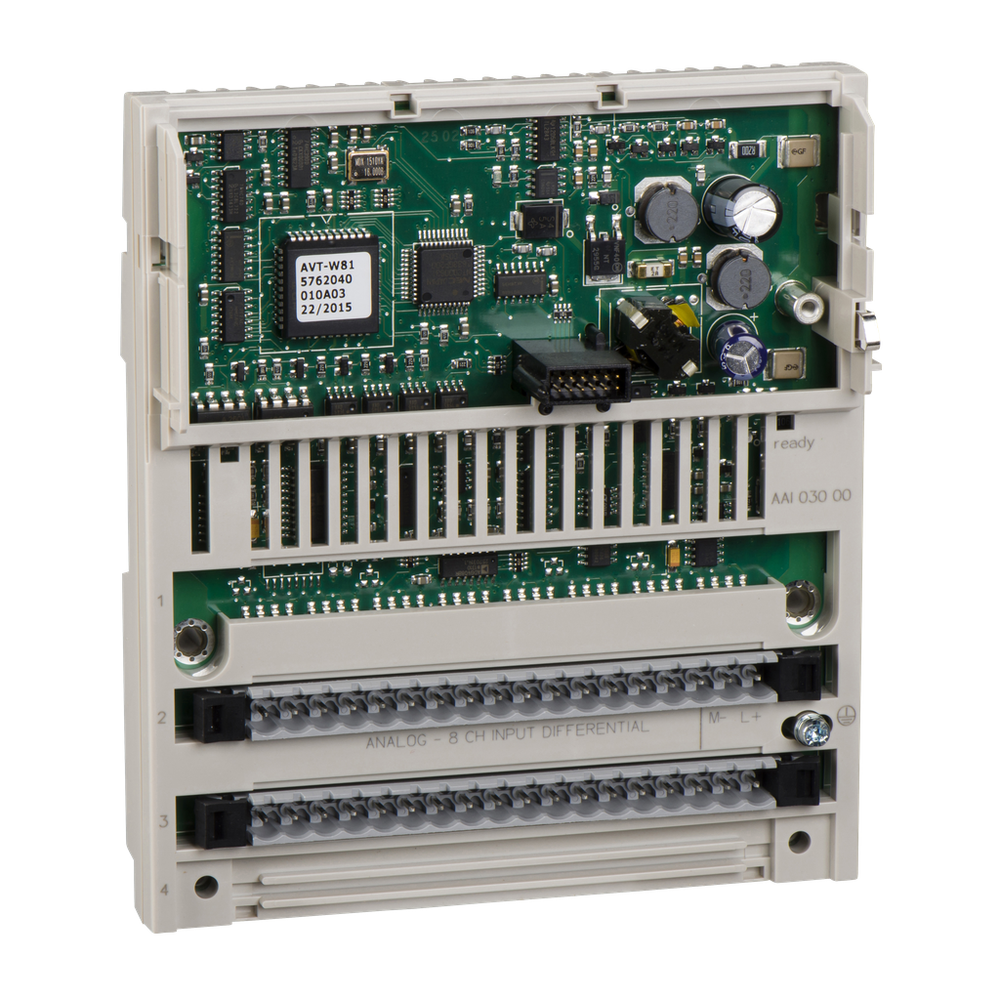

Schneider Electric 170AAI52040
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 4 inputs with a full 16bit signed resolution. It offers differential analog input ranges from ±100mV, ±25mV. There is an isolation between channels and bus, channels and ground at 500V AC. It is furnished with 2 removable terminal blocks for electrical connection. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.distributed analog input Modicon Momentum - 4 Input
Schneider Electric 170AAI52040 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Absolute Accuracy Error
- +/- 21 µV 25 °C +/- 25 mV || +/- 27 µV 25 °C +/- 100 mV || +/- 46 µV 60 °C +/- 25 mV || +/- 94 µV 60 °C +/- 100 mV
- Associated Fuse Rating
- 500 mA, fast blow
- Common Mode Rejection
- 120 dB DC between channels || 130 dB 50 Hz AC between channels || 135 dB DC between channels to ground || 140 dB 60 Hz AC between channels || 145 dB 50 Hz AC between channels to ground || 155 dB 60 Hz AC between channels to ground
- Current Consumption
- 305 mA 24 V DC
- Data Format
- full 16 bits signed
- Depth
- 47.5 mm
- Electrical Connection
- 2 connectors for removable terminal blocks
- External Power Requirement
- +/- 30 V DC
- Height
- 125 mm
- Isolation Between Channels
- 400 V DC
- Isolation Between Channels And Ground
- 500 V AC for 1 minute
- Isolation Between Supply And Ground
- 500 V for 1 minute
- Local Signalling
- for channel status 4 LEDs
- Marking
- CE
- Maximum Power Dissipation In W
- 5.5 W
- Net Weight
- 0.215 kg
- Permissible Common Mode Voltage
- 100 V DC between channels to ground || 115 V AC single or three phases between channels || 200 V DC between channels || 250 V AC between channels to ground || 250 V AC single phase between channels
- Protection Type
- internal 2 A slow-blow
- Reverse Polarity Protection
- internal
- Serial Mode Rejection
- 35 dB 50 Hz AC || 45 dB 60 Hz AC
- Temperature Probe Type
- Ni 100 0.125 mA +/- 25 mV || Ni 1000 0.125 mA +/- 100 mV || Pt 100 0.125 mA +/- 25 mV || Pt 1000 0.125 mA +/- 100 mV
- Update Time
- 500 ms
- Width
- 141.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Operating Altitude
- <= 16404.2 ft (5000 m)
- Product Certifications
- FM Class 1 Division 2 || CSA || UL
- Protective Treatment
- TC
- Relative Humidity
- 95-95 % without condensation
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Resistance To Electrostatic Discharge
- 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403005EN
- Environmental Disclosure
- ENVPEP1403005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Number
- 4
- Analogue Input Range
- +/- 100 mV 15 bits + sign > 10000 kOhm || +/- 25 mV 15 bits + sign > 10000 kOhm
- Analogue Input Type
- differential
- Product Or Component Type
- analogue input base
- Range Of Product
- Modicon Momentum automation platform
- Thermocouple Type
- thermocouple E || thermocouple S || thermocouple K || thermocouple N || thermocouple B || thermocouple R || thermocouple J || thermocouple T
