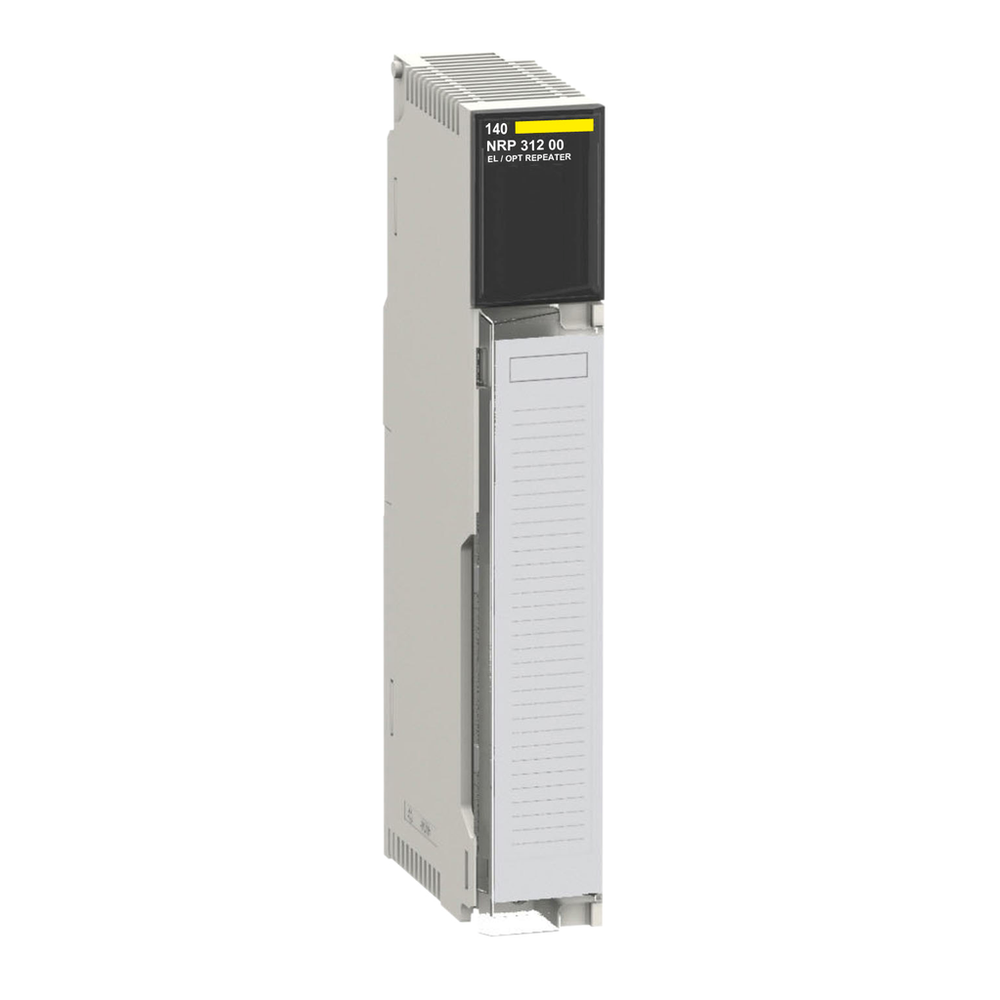

Schneider Electric 140NRP31200
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Ethernet fibre converter MM/LC 2CH - 100 MB
Schneider Electric 140NRP31200 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Attenuation
- -23.5--14 dB 50/125 µm) || -20--14 dB 62.5/125 µm)
- Bus Current Requirement
- 1000 mA
- Depth
- 103.85 mm
- Detected Silence
- -45 dBm
- Height
- 250 mm
- Inrush Current
- 1 A 5 V DC
- Local Signalling
- 1 LED green RDY module status || 1 LED red ERR internal fault, module failure || 1 LED green STS1 channel 1 link status || 1 LED green FX1 ACT channel 1 communication status || 1 LED green STS2 channel 2 link status || 1 LED green FX2 ACT channel 2 communication status
- Marking
- CE
- Material
- PC (polycarbonate)
- Net Weight
- 0.554 kg
- Number Of Port
- 2 fiber optic LC || 2 ETHERNET RJ45
- Optic Distance Between 2 Transceivers
- 2000 m 50/125 µm)-23.5--14 dBm || 3000 m 62.5/125 µm)-20--14 dBm
- Power Dissipation In W
- 5 W
- Receiver Sensitivity
- 30 dBm
- Rise/Fall Time
- 3 ns
- Wavelength
- 1310 nm
- Width
- 40.34 mm
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Product Certifications
- C-tick || TÜV || Merchant Navy
- Relative Humidity
- 0-95 %
- Standards
- CSA C22.2 No 142 || FM Class 1 Division 2 || UL 508
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI0712001EN
- Environmental Disclosure
- ENVPEP071201EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Optic Fiber Type
- multi mode
- Product Or Component Type
- fibre converter
- Range Of Product
- Modicon Quantum automation platform
