Schneider Electric 10285
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

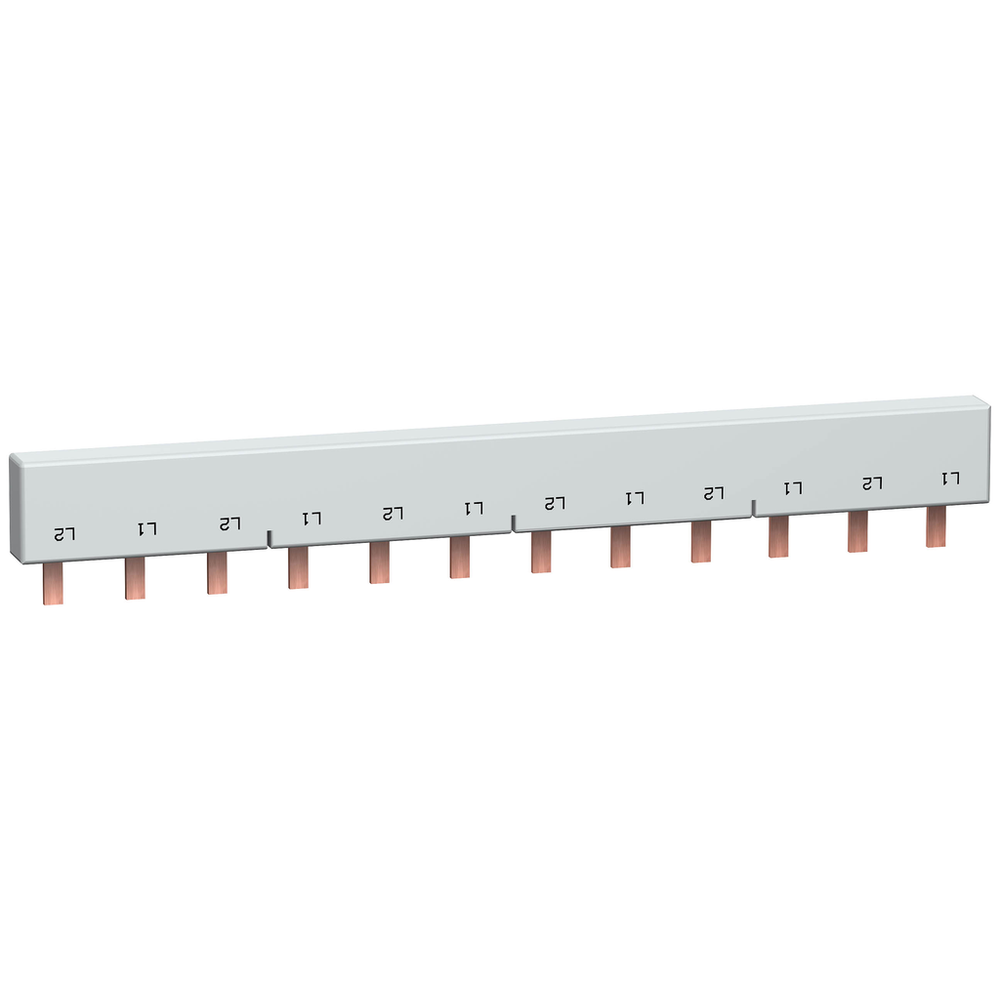

This Multi9 product is a comb busbar 12 modules. It is dedicated to (Line) installations. The distribution type is 1L. It is insulated and uncuttable. It is a set of 1 device. It is suitable for 12 devices (1P). This comb busbar is compatible with Multi9 C60SP devices. The total number of modules of 18mm is 12. The Ue rated operational voltage is 277VAC (phase to neutral) and 480VAC (phase to phase). The Ui rated insulation voltage is 690VAC. Its width is 216mm. The color is light grey (RAL 7035). The pollution degree is 3. The resistance of the plastic to flames and to abnormal heat is 960°C within 30s.Multi9 - comb busbar - 1L - 18 mm pitch - 12 modules - 100A
Schneider Electric 10285 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 9 Mm Pitches
- 24
- Color
- Light gray RAL 7035)
- Connection Pitch
- 18 mm
- Connector Type
- tooth
- Device Presentation
- uncuttable
- Distance Between Way
- 18 mm
- [Ie] Rated Operational Current
- 100 A 40 °C
- Insulation
- insulated
- Marking
- L
- Mounting Location
- top tunnel type terminals
- Number Of Ways
- 12 ways 1 L
- Poles Configuration For 1 Way
- 1 x 1P
- Range Compatibility
- Multi9 (Multi9 C60SP)
- [Ue] Rated Operational Voltage
- 277 V AC Ph/N || 480 V AC Ph/Ph
- [Uimp] Rated Impulse Withstand Voltage
- 12 kV
- [Ui] Rated Insulation Voltage
- 690 V AC
- Width
- 216 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Fire Resistance
- 960 °C 30 s )
- Standards
- IEC 60947-2 || GB 14048.2 || UL 1077
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Accessory / Separate Part Category
- connection accessory
- Lines Description
- 1L
- Mounting Mode
- horizontal
- Product Or Component Type
- comb busbar
- Range
- Multi9
- Total Number Of 18 Mm Modules
- 12
