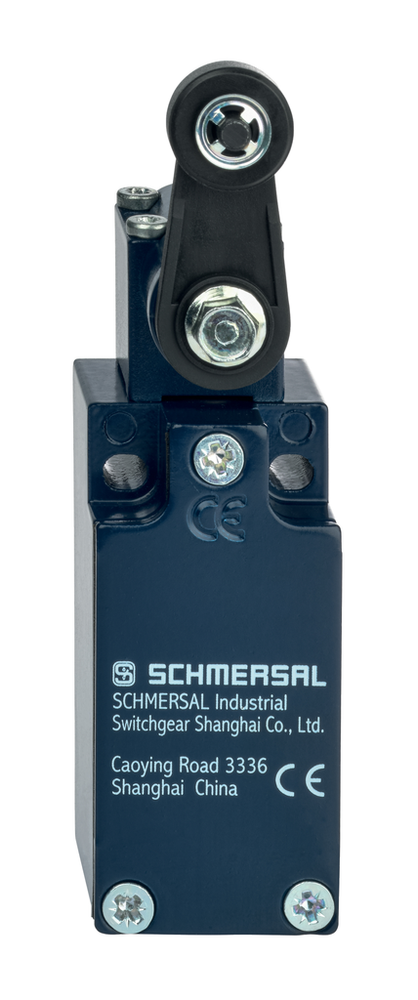

Schmersal 151164167

Ambient conditions

• Ambient temperature
  • -30 ... +80 °C
• Degree of protection
  • IP65 | IP67

Ambient conditions - Insulation values

• Rated impulse withstand voltage U
  • 6 kV
• Rated insulation voltage U
  • 500 V

Approvals - Standards

• Certificates
  • cULus | CCC

Electrical data

• Material of the contacts, electrical
  • Silver
• Required rated short-circuit current
  • 1,000 A
• Switching element
  • NO contact, NC contact
• Switching frequency
  • 5,000 /h
• Switching principle
  • Slow action
• Thermal test current
  • 10 A
• Utilisation category AC-15
  • 4 A
  • 230 VAC
• Utilisation category DC-13
  • 1 A
  • 24 VDC

General data

• Actuator type to EN 50047
  • A
• Enclosure material
  • Metal, zinc die-cast
• Gross weight
  • 200 g
• Housing construction form
  • Norm construction design
• Lever material
  • Plastic
• Standards
  • BG-GS-ET-15 | EN ISO 13849-1 | EN IEC 60947-5-1

General data - Features

• Number of auxiliary contacts
  • 1
• Number of safety contacts
  • 1
• Safety functions
  • Yes

Mechanical data

• Actuating element
  • Roller lever
• Actuating speed, maximum
  • 1 m/s
• Actuating speed, minimum
  • 492 mm/min
• Actuating torque, minimum
  • 0.2 Nm
• Mechanical life, minimum
  • 20,000,000 Operations
• Note (Actuating speed)
  • Actuating speed with actuating angle 30° to switch axis
• Note Bounce duration
  • Bounce duration in accordance with actuating speed
• Note (Switchover time)
  • Switchover time in accordance with actuating speed
• Positive break torque
  • 0.2 Nm
• Roller material
  • Plastic

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm²
• Cable section, minimum
  • 0.75 mm²
• Note (Cable section)
  • All indications including the conductor ferrules.
• Termination
  • Screw terminals M20 x 1.5

Mechanical data - Dimensions

• Height of sensor
  • 111 mm
• Length of sensor
  • 42.5 mm
• Width of sensor
  • 30 mm

Safety classification

• Mission time
  • 20 Year(s)
• Standards
  • EN ISO 13849-1

Safety classification - Safety outputs

• B
  • 20,000,000 Operations
