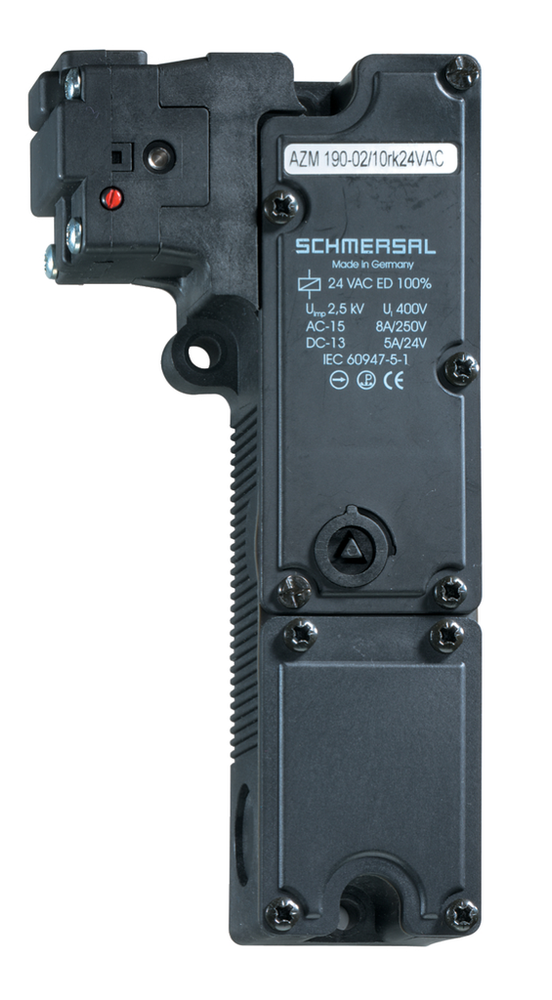

Schmersal 133006276

Ambient conditions

• Ambient temperature, maximum
  • +50 °C
• Ambient temperature, minimum
  • +0 °C
• Degree of protection
  • IP67 to EN 60529

Ambient conditions - Insulation value

• Rated impulse withstand voltage U
  • 4 kV
• Rated insulation voltage U
  • 250 V

Approval - Standards

• Certificates
  • TÜV | cULus | CCC | EAC

Electrical data

• Electrical power consumption, maximum
  • 8.5 W
• Rated control voltage
  • 24 VDC
• Required rated short-circuit current to EN 60947-5-1
  • 1,000 A
• Switching element
  • Opener (NC)
• Switching frequency
  • 1.2 /h
• Switching principle
  • Creep circuit element
• Thermal test current
  • 4 A

Electrical data - Auxiliary contacts

• Current, Utilisation category AC-15
  • 4 A
• Current, Utilisation category DC-13
  • 4 A
• Voltage, Utilisation category AC-15
  • 230 VAC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Safety contacts

• Current, Utilisation category AC-15
  • 4 A
• Current, Utilisation category DC-13
  • 4 A
• Voltage, Utilisation category AC-15
  • 230 VAC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Active principle
  • electromechanical
• Coding level according to ISO 14119
  • Low
• Enclosure material
  • Glass-fibre, reinforced thermoplastic
• Gross weight
  • 480 g
• Material of the contacts, electrical
  • Silver
• Standards
  • EN 60947-5-1 | BG-GS-ET-19

General data - Features

• Manual release
  • Yes
• Number of actuating directions
  • 4
• Number of cable glands
  • 2
• Number of safety contacts
  • 4
• Power to unlock
  • Yes

Mechanical data

• Actuating speed, maximum
  • 0.3 m/s
• Clamping force
  • 1,950 N
• Latching force
  • 20 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Positive break force, minimum
  • 20 N

Mechanical data - Connection technique

• Cable entry
  • M20 cable gland
• Cable section, maximum
  • 1 x 1.5 mm²
• Cable section, minimum
  • 1 x 0.5 mm²
• Note (Cable section)
  • All indications about the cable section are including the conductor ferrules.
• Terminal Connector
  • Screw terminals

Mechanical data - Dimensions

• Height of sensor
  • 178 mm
• Length of sensor
  • 41 mm
• Width of sensor
  • 52 mm

Other data

• Note (applications)
  • sliding safety guard | removable guard | hinged safety guard

Safety appraisal

• Mission Time
  • 20 Year(s)
• Standards
  • EN ISO 13849-1

Safety appraisal - Safety outputs

• B10d Normally-closed contact (NC)
  • 2,000,000 Operations
• B10d Normally open contact (NO)
  • 1,000,000 Operations

Scope of delivery

• Included in delivery
  • Actuators must be ordered separately.
