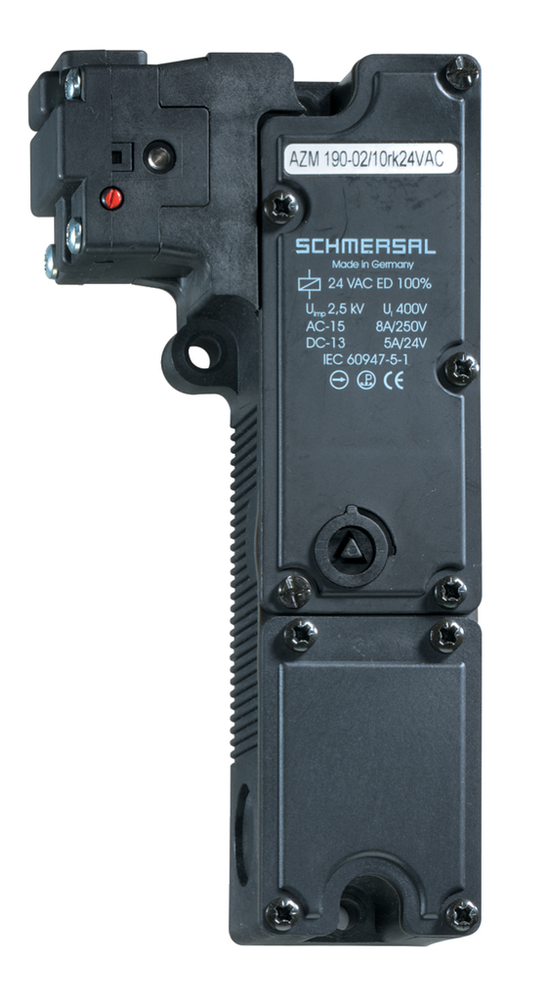

Schmersal 131030169
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AZM190-11/01RKN-24VDC
Schmersal 131030169 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- +0 ... +50 °C
- Degree of protection
- IP65 | IP67
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 250 VAC
Approvals - Standards
- Certificates
- TÜV | cULus | CCC
Electrical data
- Electrical power consumption, maximum
- 8.5 W
- Material of the contacts, electrical
- Silver
- Rated control voltage
- 24 VDC
- Required rated short-circuit current
- 1,000 A
- Switching element
- NO contact, NC contact
- Switching frequency
- 1.2 /h
- Switching principle
- slow action, positive break NC contact
- Thermal test current
- 4 A
Electrical data - Auxiliary contacts
- Current, Utilisation category AC-15
- 4 A
- Current, Utilisation category DC-13
- 4 A
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Electrical data - Magnet control
- Magnet switch-on time
- 100 %
- Test pulse duration, maximum
- 5 ms
- Test pulse interval, minimum
- 50 ms
Electrical data - Safety contacts
- Current, Utilisation category AC-15
- 4 A
- Current, Utilisation category DC-13
- 4 A
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
General data
- Coding level according to EN ISO 14119
- Low
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Gross weight
- 500 g
- Standards
- BG-GS-ET-19 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
General data - Features
- Emergency release
- Yes
- Number of actuating directions
- 4
- Number of auxiliary contacts
- 1 | 2
- Number of cable glands
- 2
- Number of safety contacts
- 1
- Power to unlock
- Yes
Mechanical data
- Actuating speed, maximum
- 0.3 m/s
- Holding force F
- 1,950 N
- 2,550 N
- Latching force
- 20 N
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break force, minimum
- 20 N
Mechanical data - Connection technique
- Cable entry
- 2 x M20 x 1,5
- Cable section, maximum
- 1.5 mm²
- Cable section, minimum
- 0.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals
Mechanical data - Dimensions
- Height of sensor
- 178 mm
- Length of sensor
- 41 mm
- Width of sensor
- 52 mm
Note
- Note (Emergency release)
- For cases of danger | Mounting only outside the guarded area
- Note (Manual release)
- front
Other data
- Note (applications)
- sliding safety guard | removable guard | hinged safety guard
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 2,000,000 Operations
- 1,000,000 Operations
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
