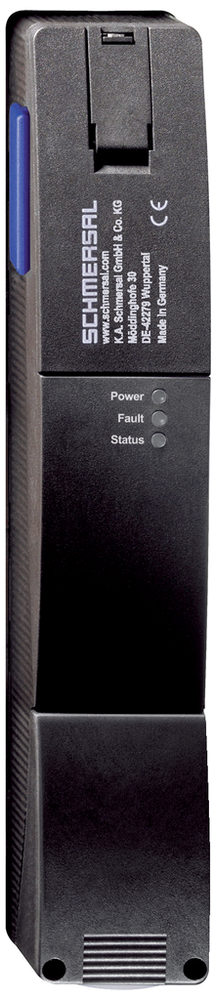

Schmersal 103044811

Accessory

• Recommendation (actuator)
  • AZ/AZM201-B1 | AZ/AZM201-B30

Ambient conditions

• Ambient temperature
  • -25 ... +60 °C
• Degree of protection
  • IP67 | IP66
• Note (Relative humidity)
  • non-condensing | non-icing
• Permissible installation altitude above sea level, maximum
  • 2,000 m
• Protection class
  • III
• Relative humidity, maximum
  • 93 %
• Resistance to vibrations
  • 10 … 150 Hz, amplitude 0.35 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | cULus | FCC | IC

Electrical data

• Current consumption with magnet ON, average
  • 200 mA
• Current consumption with magnet ON, peak
  • 700 mA / 100 ms
• External wire and device fuse rating
  • 4 A gG
• No-load supply current I
  • 50 mA
• Operating current
  • 1,200 mA
• Operating voltage
  • 24 VDC -15 % / +10 % (stabilised PELV power supply)
• Rated operating voltage
  • 24 VDC
• Required rated short-circuit current
  • 100 A
• Switching frequency, maximum
  • 1 Hz
• Time to readiness, maximum
  • 4,000 ms

Electrical data - Diagnostic outputs

• Current, Utilisation category DC-13
  • 0.05 A
• Designation, Diagnostic outputs
  • OUT
• Design of control elements
  • short-circuit proof, p-type
• Operating current
  • 50 mA
• Voltage drop U
  • 4 V
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Magnet control

• Classification ZVEI CB24I, Sink
  • C0
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Current consumption at 24 V
  • 10 mA
• Designation, Magnet control
  • IN
• Magnet switch-on time
  • 100 %
• Switching thresholds
  • -3 V … 5 V (Low) | 15 V … 30 V (High)
• Test pulse duration, maximum
  • 5 ms
• Test pulse interval, minimum
  • 40 ms

Electrical data - Safety digital inputs

• Classification ZVEI CB24I, Sink
  • C1
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Current consumption at 24 V
  • 5 mA
• Designation, Safety inputs
  • X1 and X2
• Switching thresholds
  • −3 V … 5 V (Low) | 15 V … 30 V (High)
• Test pulse duration, maximum
  • 1 ms
• Test pulse interval, minimum
  • 100 ms

Electrical data - Safety digital outputs

• Classification ZVEI CB24I, Sink
  • C1 | C2
• Classification ZVEI CB24I, Source
  • C2
• Current at Voltage drop U
  • 2 A
• Current, Utilisation category DC-13
  • 0.25 A
• Designation, Safety outputs
  • Y1 and Y2
• Design of control elements
  • short-circuit proof, p-type
• Leakage current I
  • 0.5 mA
• Rated operating current (safety outputs)
  • 250 mA
• Test pulse duration, maximum
  • 0.5 ms
• Test pulse interval, typical
  • 1000 ms
• Voltage drop U
  • 2 V
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Coding
  • Universal coding
• Coding level according to EN ISO 14119
  • Low
• Duration of risk, maximum
  • 200 ms
• Enclosure material
  • Glass-fibre, reinforced thermoplastic
• Frequency band RFID
  • 125 kHz
• Gross weight
  • 584 g
• Reaction time, switching off safety outputs via actuator, maximum
  • 100 ms
• Reaction time, switching off safety outputs via safety inputs, maximum
  • 1.5 ms
• Standards
  • EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
• Transmitter output RFID, maximum
  • -6 dB/m
• Working principle
  • RFID

General data - Features

• Cross-circuit detection
  • Yes
• Integral system diagnostics, status
  • Yes
• Manual release
  • Yes
• Number of safety contacts
  • 2
• Power to lock
  • Yes
• Safety functions
  • Yes
• Series-wiring
  • Yes
• Short circuit detection
  • Yes
• Solenoid interlock monitored
  • Yes

Mechanical data

• Actuating speed, maximum
  • 0.2 m/s
• Holding force F
  • 2,000 N
  • 2,600 N
• Latching force
  • 30 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Note
  • Torx T10
• Note (clamping force F
  • 1,300 N when used with the AZ/AZM201-B30 actuator, for indoor use.
  • 1,000 N when used with the AZ/AZM201-B30 actuator, for indoor use.
• Tightening torque of the fastening screws for the housing cover, maximum
  • 1 Nm
• Tightening torque of the fastening screws for the housing cover, minimum
  • 0.7 Nm
• Tightening torque of the fixing screws, maximum
  • 8 Nm
• Type of the fixing screws
  • 2x M6

Mechanical data - Connection technique

• Allowed type of cable
  • solid single-wire | solid multi-wire | flexible
• Cable entry
  • 1x M20
• Cable section, maximum
  • 1.5 mm²
• Cable section, minimum
  • 0.25 mm²
• Length of sensor chain, maximum
  • 200 m
• Note (Cable section)
  • All indications including the conductor ferrules.
• Note (length of the sensor chain)
  • Cable length and cross-section change the voltage drop dependiing on the output current
• Note (series-wiring)
  • Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
• Termination
  • Screw terminals
• Wire cross-section
  • 23 ... 15 AWG
• Wire cross-section, maximum
  • 15 AWG
• Wire cross-section, minimum
  • 23 AWG

Mechanical data - Dimensions

• Height of sensor
  • 220 mm
• Length of sensor
  • 50 mm
• Width of sensor
  • 40 mm

Note

• Note (General)
  • As long as the actuating unit remains inserted in the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

Safety classification

• Standards
  • EN ISO 13849-1 | EN IEC 61508

Safety classification - Guard locking function

• Category
  • 2
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • d
• PFD value
  • 8.90 x 10⁻⁴
• PFH value
  • 1.00 x 10⁻⁸ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 2

Safety classification - Interlocking function

• Category
  • 4
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFD value
  • 1.60 x 10⁻⁴
• PFH value
  • 1.90 x 10⁻⁹ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately. | Triangular key for AZM 201

Status indication

• Note (LED switching conditions display)
  • Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
