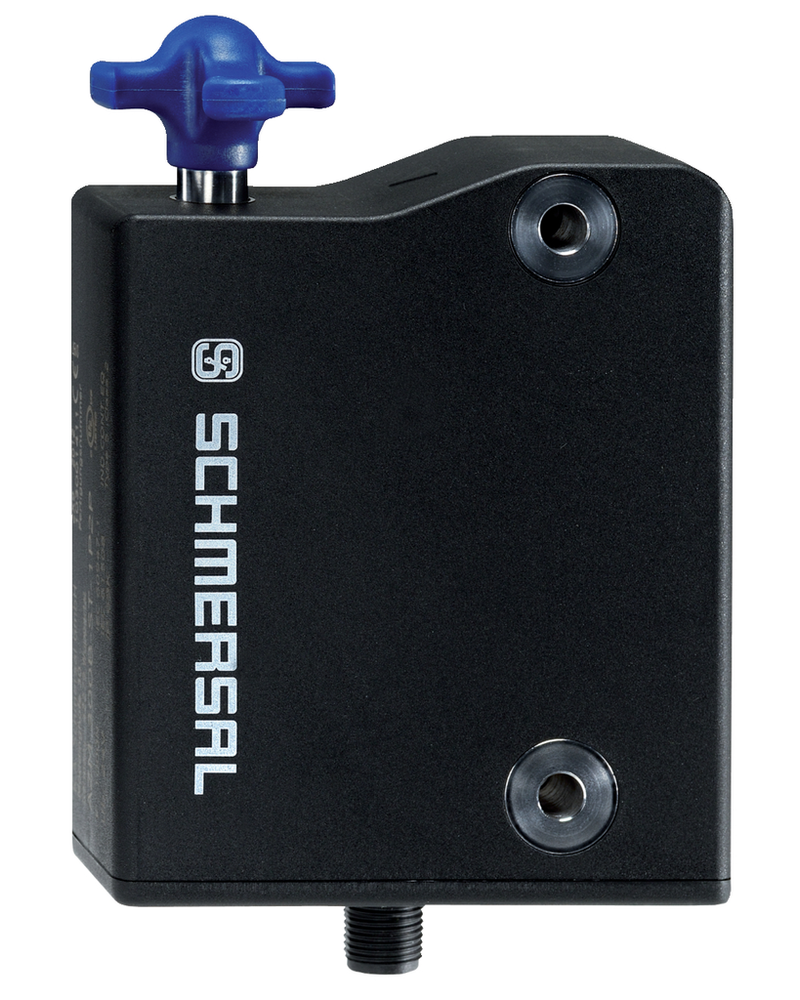

Schmersal 103044798

Accessory

• Recommendation (actuator)
  • AZ/AZM300-B1

Ambient conditions

• Ambient temperature
  • +0 ... +60 °C
• Degree of protection
  • IP67 | IP69 | IP66
• Note (Relative humidity)
  • non-condensing | non-icing
• Permissible installation altitude above sea level, maximum
  • 2,000 m
• Protection class
  • III
• Relative humidity, maximum
  • 93 %
• Resistance to vibrations
  • 10 … 150 Hz, amplitude 0.35 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +90 °C
• Storage and transport temperature, minimum
  • -10 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | cULus | ECOLAB | FCC | IC

Electrical data

• Current consumption with magnet ON, average
  • 200 mA
• Current consumption with magnet ON, peak
  • 350 mA / 200 ms
• External wire and device fuse rating
  • 2 A gG
• No-load supply current I
  • 100 mA
• Operating voltage
  • 24 VDC -15 % / +10 % (stabilised PELV power supply)
• Rated operating voltage
  • 24 VDC
• Required rated short-circuit current
  • 100 A
• Switching frequency, maximum
  • 0.5 Hz
• Time to readiness, maximum
  • 5,000 ms

Electrical data - Diagnostic outputs

• Current, Utilisation category DC-12
  • 0.05 A
• Current, Utilisation category DC-13
  • 0.05 A
• Designation, Diagnostic outputs
  • OUT
• Design of control elements
  • short-circuit proof, p-type
• Voltage drop U
  • 2 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Magnet control

• Classification ZVEI CB24I, Sink
  • C0
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Current consumption at 24 V
  • 10 mA
• Designation, Magnet control
  • IN
• Magnet switch-on time
  • 100 %
• Switching thresholds
  • -3 V … 5 V (Low) | 15 V … 30 V (High)
• Test pulse duration, maximum
  • 5 ms
• Test pulse interval, minimum
  • 40 ms

Electrical data - Safety digital inputs

• Classification ZVEI CB24I, Sink
  • C1
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Current consumption at 24 V
  • 5 mA
• Designation, Safety inputs
  • X1 and X2
• Switching thresholds
  • −3 V … 5 V (Low) | 15 V … 30 V (High)
• Test pulse duration, maximum
  • 1 ms
• Test pulse interval, minimum
  • 100 ms

Electrical data - Safety digital outputs

• Classification ZVEI CB24I, Sink
  • C1 | C2
• Classification ZVEI CB24I, Source
  • C2
• Current, Utilisation category DC-12
  • 0.25 A
• Current, Utilisation category DC-13
  • 0.25 A
• Designation, Safety outputs
  • Y1 and Y2
• Design of control elements
  • short-circuit proof, p-type
• Leakage current I
  • 0.5 mA
• Test pulse duration, maximum
  • 0.5 ms
• Test pulse interval, typical
  • 1000 ms
• Voltage drop U
  • 2 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Coding
  • Individual coding, multiple teaching
• Coding level according to EN ISO 14119
  • High
• Duration of risk, maximum
  • 200 ms
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Frequency band RFID
  • 125 kHz
• Gross weight
  • 550 g
• Reaction time, switching off safety outputs via actuator, maximum
  • 100 ms
• Reaction time, switching off safety outputs via safety inputs, maximum
  • 1.5 ms
• Standards
  • EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
• Transmitter output RFID, maximum
  • -6 dB/m
• Working principle
  • RFID

General data - Features

• Actuator monitored
  • Yes
• Cross-circuit detection
  • Yes
• Integral system diagnostics, status
  • Yes
• Latching
  • Yes
• Manual release
  • Yes
• Number of actuating directions
  • 3
• Number of fail-safe digital outputs
  • 2
• Power to lock
  • Yes
• Safety functions
  • Yes
• Series-wiring
  • Yes
• Short circuit detection
  • Yes

Mechanical data

• Angular misalignment between solenoid interlock and actuator, maximum
  • 2 °
• Holding force F
  • 1,500 N
  • 1,150 N
• Latching force, adjustable, position 1
  • 25 N
• Latching force, adjustable, position 2
  • 50 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Note (Mechanical life)
  • When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
• Tightening torque of the fixing screws, maximum
  • 7 Nm
• Tightening torque of the fixing screws, minimum
  • 6 Nm
• Type of the fixing screws
  • 2x M6

Mechanical data - Connection technique

• Length of sensor chain, maximum
  • 200 m
• Note (length of the sensor chain)
  • Cable length and cross-section change the voltage drop dependiing on the output current
• Note (series-wiring)
  • Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
• Termination
  • Connector M12, 8-pole, A-coded

Mechanical data - Dimensions

• Height of sensor
  • 35 mm
• Length of sensor
  • 120 mm
• Width of sensor
  • 87.5 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Assured switching distance "OFF" S
  • 20 mm
• Assured switching distance "ON" S
  • 1 mm
• Switch distance, typical
  • 2 mm

Note

• Note (General)
  • For doors that are flush with the door frame, the optional mounting plate MP-AZ/AZM300-1 can be used. | For glass and Makrolon doors, the optional mounting kit MS-AZ/AZM300-B1-1 can be used. | As long as the actuating unit remains inserted in the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

Pin assignment

• PIN 1
  • A1 Supply voltage UB
• PIN 2
  • X1 Safety input 1
• PIN 3
  • A2 GND
• PIN 4
  • Y1 Safety output 1
• PIN 5
  • OUT Diagnostic output
• PIN 6
  • X2 Safety input 2
• PIN 7
  • Y2 Safety output 2
• PIN 8
  • IN Solenoid control

Safety classification

• Standards
  • EN ISO 13849-1 | EN IEC 61508

Safety classification - Interlocking function

• Category
  • 4
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFD value
  • 4.50 x 10⁻⁵
• PFH value
  • 5.20 x 10⁻¹⁰ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
