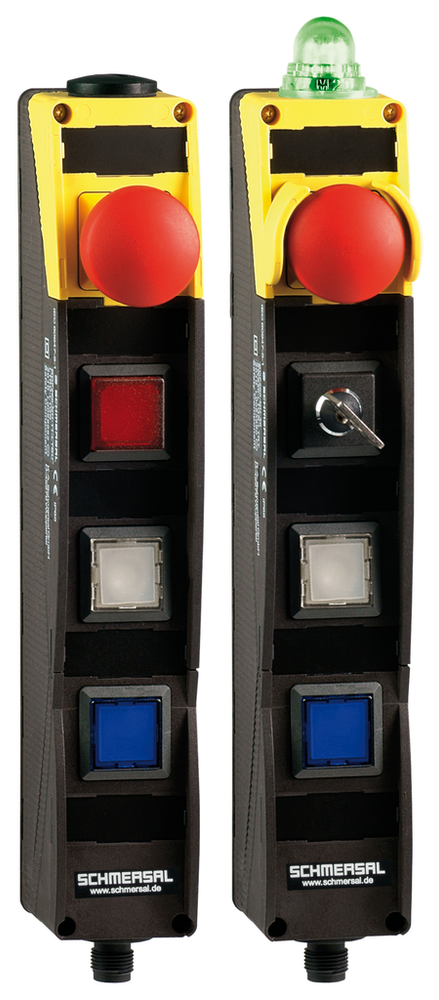

Schmersal 103039892

Ambient conditions

• Ambient temperature
  • -25 ... +65 °C
• Degree of protection
  • IP65
• Protection class
  • II
• Resistance to vibrations
  • 10 … 150 Hz, amplitude 0.35 mm / 5 g
• Restistance to shock
  • 15 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | ASi-SaW

Electrical data - AS Interface

• AS-i Current consumption, maximum
  • 150 mA
• Rated operating voltage
  • 18 ... 31.6 VDC (Protection against polarity reversal)

Electrical data - AS-Interface specification

• AS-i AS-i Parameter bits (A/B Slave), P0 ... P3
  • No function
• AS-i AS-i Parameter bits (Safety-Slave), P0 ... P3
  • No function
• AS-i Input, Channel 1 (Safety-Slave)
  • Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Input, Channel 2 (Safety-Slave)
  • Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input, DI 0 (A/B Slave)
  • Command device Position 4
• AS-i Input, DI 1 (A/B Slave)
  • Command device Position 3
• AS-i Input, DI 2 (A/B Slave)
  • Command device Position 2
• AS-i Input, DI 3 (A/B Slave)
  • Command device Position 2
• AS-i Input module address
  • 0
• AS-i Output, DO 0 (A/B Slave)
  • Illuminated signal position 4
• AS-i Output, DO 0 (Safety-Slave)
  • Indicator lamp G24 red
• AS-i Output, DO 1 (A/B Slave)
  • Illuminated signal position 3
• AS-i Output, DO 1 (Safety-Slave)
  • Indicator lamp G24 green
• AS-i Output, DO 2 (A/B Slave)
  • Illuminated signal position 2
• AS-i Output, DO 2 (Safety-Slave)
  • No Function
• AS-i Output, DO 3 (A/B Slave)
  • No Function
• AS-i Output, DO 3 (Safety-Slave)
  • No Function
• AS-i Profile (A/B Slave)
  • S-7.A.7.F
• AS-i Profile (Safety-Slave)
  • S-7.B.F.F
• AS-i Version (A/B Slave)
  • V 3.0
• AS-i Version (Safety-Slave)
  • V 3.0
• Note
  • Both AS-i slaves can be enabled and disabled through the integrated DIP switch. The addressing must take place via the M12 connector.
• Note (AS-i Input module address)
  • Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  • Set the parameter outputs to "1111" (0xF) | FID: periphery error

General data

• Climatic stress
  • DIN EN 60068
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Gross weight
  • 280 g
• Positions used, position 1
  • blanking plug
• Positions used, position 2
  • Key-operated switch, 1 latching position and 1 zero position, key removal position in position 0
• Positions used, position 3
  • Illuminated pushbutton, yellow
• Positions used, position 4
  • Pushbutton, white
• Reaction time, maximum
  • 100 ms
• Standards
  • EN IEC 62026-2 | EN ISO 13849-1 | EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 61508

General data - Features

• Indicator lamp
  • Yes

Mechanical data

• Mechanical life, Command devices
  • 1,000,000 Operations
• Mechanical life, Emergency-Stop button
  • 100,000 Operations

Mechanical data - Connection technique

• Termination
  • Connector plug M12, 4-pole, (A-coding)

Mechanical data - Dimensions

• Depth
  • 252.5 mm
• Height
  • 69 mm
• Width
  • 40 mm

Pin assignment

• PIN 1
  • AS-Interface +
• PIN 2
  • n.c.
• PIN 3
  • AS-Interface -
• PIN 4
  • n.c.

Safety classification

• Category
  • 4
• Mission time
  • 20 Year(s)
• Note (PFH-value)
  • up to max. 5,000 switching cycles/year
• Performance Level, up to
  • e
• PFH value
  • 1.40 x 10⁻⁸ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • EN IEC 61508

Specifications

• Depth
  • 252.5 mm
• Height
  • 69 mm
• Width
  • 40 mm
