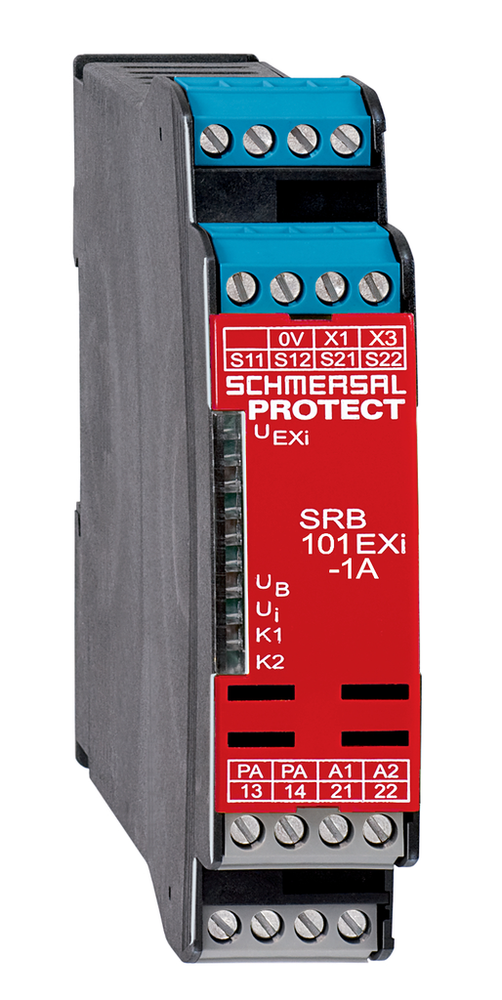

Schmersal 103037576

Ambient conditions

• Ambient temperature
  • -25 ... +60 °C
• Degree of protection of clips or terminals
  • IP20
• Degree of protection of the enclosure
  • IP40
• Degree of protection of the mounting space
  • IP54
• Resistance to vibrations
  • 10 ... 55 Hz, Amplitude 0.35 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -40 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 2
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 4 kV

Electrical data

• Contact resistance, maximum
  • 0.1 Ω
• Current consumption
  • 57 mA
• Drop-out delay in case of "emergency stop", maximum
  • 20 ms
• Drop-out delay in case of power failure, typically
  • 20 ms
• Electrical power consumption
  • 3 W
• Material of the contacts, electrical
  • AgSn0. self-cleaning, positive drive
• Note (Contact resistance)
  • in new state
• Operating voltage
  • 24 VDC -10 % / +20 %
• Pull-in delay at automatic start, maximum, typically
  • 300 ms
• Pull-in delay at RESET, typically
  • 20 ms
• Rated AC voltage for controls at DC minimum
  • 20.4 VDC
• Rated control voltage at DC, maximum
  • 28.8 VDC
• Rated operating voltage
  • 24 VDC
• Ripple voltage
  • 10 %
• Utilisation category AC-15
  • 2 A
  • 230 VAC
• Utilisation category DC-13
  • 2 A
  • 24 VDC

Electrical data - Digital inputs

• Conduction resistance, maximum
  • 30 Ω

Electrical data - Electromagnetic compatibility (EMC)

• EMC rating
  • EMC-Directive

Explosion protection

• Explosion protection category
  • 3G
• Explosion protection designation
  • II 3 G Ex nA nC IIC T5 Gc (Installation SRB, in Zone 2) | II (2) G [Ex ib Gb] IIC | II (2) D [Ex ib Db] IIIC
• Explosion protection: regulations
  • EN IEC 60079-0 | EN IEC 60079-11 | EN IEC 60079-15
• Explosion protection zones
  • 2

General data

• Climatic stress
  • EN 60068-2-78
• Enclosure material
  • Glass-fibre reinforced thermoplastic, ventilated
• Gross weight
  • 265 g

General data - Features

• Automatic reset function
  • Yes
• Cross-circuit detection
  • Yes
• Earth connection detection
  • Yes
• Integral system diagnostics, status
  • Yes
• Number of auxiliary contacts
  • 1
• Number of LEDs
  • 5
• Number of normally closed (NC)
  • 2
• Number of safety contacts
  • 1
• Stop-Category
  • 0
• Wire breakage detection
  • Yes

Mechanical data

• Mechanical life, minimum
  • 10,000,000 Operations
• Mounting
  • Snaps onto standard DIN rail to EN 60715

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm²
• Cable section, minimum
  • 0.25 mm²
• Terminal designations
  • IEC/EN 60947-1
• Tightening torque of Clips
  • 0.6 Nm

Mechanical data - Dimensions

• Depth
  • 121 mm
• Height
  • 100 mm
• Width
  • 22.5 mm

Note

• Note (General)
  • Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.

Other data

• Note (applications)
  • Safety sensor | Guard system | Emergency-Stop button | Pull-wire emergency stop switches

Safety classification

• Category, Stop 0
  • 4
• Common Cause Failure (CCF), minimum
  • 65
• Diagnostic Coverage (DC) Level, Stop 0
  • ≥ 99 %
• Mission time
  • 15 Year(s)
• Performance Level, stop 0, up to
  • e
• PFH value, Stop 0
  • 2.00 x 10⁻⁸ /h
• Safety Integrity Level (SIL), Stop 0, suitable for applications in
  • 3
• Standards
  • EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 61508

Specifications

• Depth
  • 121 mm
• Height
  • 100 mm
• Width
  • 22.5 mm

Wiring example

• Note (Wiring diagram)
  • The wiring diagram is shown with guard doors closed and in de-energised condition. | Monitoring 1 guard door(s), each with a magnetic safety sensor of the BNS range | If only one external relay or contactor is used to switch the load, the system can be classified in Control Category 3 to ISO 13849-1, if exclusion of the fault “Failure of the external contactor” can be substantiated and is documented, e.g. by using a reliable down-rated contactor. A second contactor leads to an increase in the level of security by redundant switching to switch the load off. | To secure a guard door up to PL e and Category 4 | The feedback circuit monitors the position of the contactors KA and KB. | Automatic start: The automatic start is programmed by connecting the feedback circuit to the terminals X1/X2. If the feedback circuit is not required, establish a bridge.
