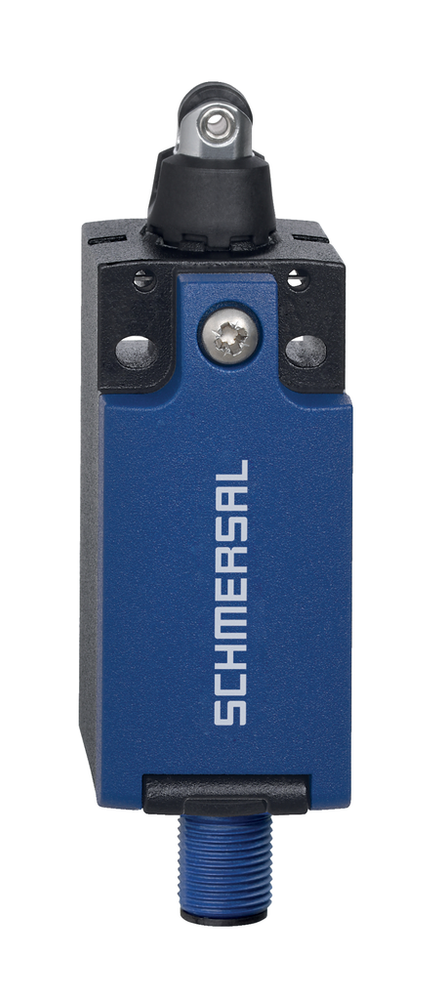

Schmersal 103033947
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PS215L-Z11A1-ST-R200
Schmersal 103033947 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +80 °C
- Degree of protection
- IP67 | IP66
- Protection class
- I
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Rated impulse withstand voltage U
- 0.8 kV
- Rated insulation voltage U
- 50 V
Approvals - Standards
- Certificates
- cULus | CCC
Electrical data
- Material of the contacts, electrical
- Gold-plated silver (AgNi 10 + Au 0,3µm)
- Required rated short-circuit current
- 400 A
- Switching element
- 1 NO contact, 1 NC contacts
- Switching frequency
- 5,000 /h
- Switching principle
- Snap action
- Thermal test current
- 4 A
- Utilisation category AC-15
- 3 A
- 50 VAC
- Utilisation category DC-13
- 3 A
- 24 VDC
General data
- Actuator type to EN 50047
- c
- Enclosure coating material
- painted
- Enclosure material
- Metal, zinc die-cast
- Gross weight
- 226 g
- Housing construction form
- Norm construction design
- Standards
- EN IEC 60947-5-1
General data - Features
- Number of auxiliary contacts
- 1
- Number of safety contacts
- 1
- Safety functions
- Yes
Mechanical data
- Actuating element
- Roller plunger R200
- Actuating speed, maximum
- 0.5 m/s
- Actuating speed, minimum
- 10 mm/min
- Mechanical life, minimum
- 10,000,000 Operations
- Mounting
- Enclosure with mounting slots
- Positive break force, minimum
- 40 N
- Tightening torque of the fastening screws for the housing cover
- 2.6 Nm
- Tightening torque of the fixing screws
- 2 Nm
Mechanical data - Connection technique
- Cable section, maximum
- 1.5 mm²
- Cable section, minimum
- 0.34 mm²
- Termination
- Connector M12, 4-pole
- Tightening torque of electrical connection, maximum
- 0.8 Nm
- Tightening torque of electrical connection, minimum
- 0.6 Nm
Mechanical data - Dimensions
- Height of sensor
- 85.6 mm
- Length of sensor
- 32.5 mm
- Width of sensor
- 31 mm
Safety classification
- Mission time
- 20 Year(s)
Safety classification - Safety outputs
- B
- 20,000,000 Operations
