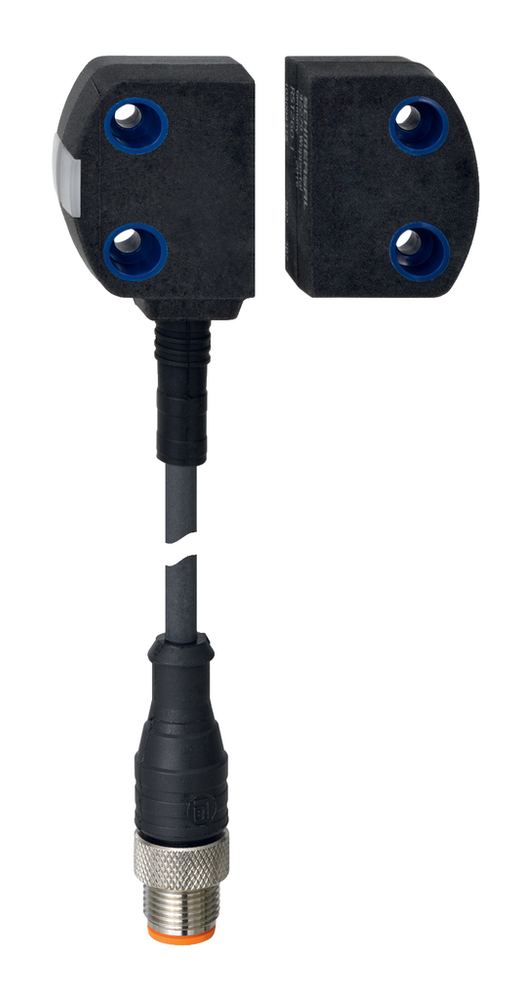

Schmersal 103026385

Accessory

• Recommendation (actuator)
  • RST16-1 | RST-U-2 | RST260-1

Ambient conditions

• Ambient temperature
  • -25 ... +65 °C
• Degree of protection
  • IP65 | IP67
• Note (Relative humidity)
  • non-condensing | non-icing
• Permissible installation altitude above sea level, maximum
  • 2,000 m
• Relative humidity, maximum
  • 93 %
• Resistance to vibrations
  • 10 … 55 Hz, amplitude 1 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | cULus | FCC | IC | UKCA

Electrical data

• No-load supply current I
  • 35 mA
• Operating current
  • 600 mA
• Operating current, minimum
  • 0.5 mA
• Operating voltage
  • 24 VDC -15 % / +10 % (stabilised PELV power supply)
• Rated operating voltage
  • 24 VDC
• Required rated short-circuit current
  • 100 A
• Switching frequency, maximum
  • 1 Hz
• Time to readiness, maximum
  • 2,000 ms

Electrical data - Diagnostic outputs

• Current, Utilisation category DC-12
  • 0.05 A
• Current, Utilisation category DC-13
  • 0.05 A
• Designation, Diagnostic outputs
  • OUT
• Operating current
  • 50 mA
• Voltage drop U
  • 2 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Electromagnetic compatibility (EMC)

• EMC rating
  • IEC 60947-3
• Interfering radiation
  • IEC 61000-6-4

Electrical data - Safety digital outputs

• Current, Utilisation category DC-12
  • 0.25 A
• Current, Utilisation category DC-13
  • 0.25 A
• Designation, Safety outputs
  • Y1 and Y2
• Design of control elements
  • short-circuit proof, p-type
• Leakage current I
  • 0.5 mA
• Output current, (fail-safe output), maximum
  • 0.25 A
• Rated operating current (safety outputs)
  • 250 mA
• Test pulse duration, maximum
  • 1 ms
• Test pulse interval, typical
  • 1000 ms
• Voltage drop U
  • 1 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Active area
  • Glass-fibre, thermoplastic
• Coding
  • Individual coding
• Coding level according to EN ISO 14119
  • High
• Duration of risk, maximum
  • 200 ms
• Enclosure material
  • Plastic, thermoplastic, self-extinguishing
• Frequency band RFID
  • 125 kHz
• Gross weight
  • 96 g
• Housing construction form
  • Block
• Installation conditions (mechanical)
  • not flush
• Reaction time, maximum
  • 100 ms
• Reaction time, switching off safety outputs via actuator, maximum
  • 100 ms
• Standards
  • EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508
• Transmitter output RFID, maximum
  • -6 dB/m
• Working principle
  • RFID

General data - Features

• Cross-circuit detection
  • Yes
• Number of fail-safe digital outputs
  • 2
• Number of poles
  • 5
• Safety functions
  • Yes
• Short circuit detection
  • Yes

Mechanical data

• Active area
  • lateral | front
• Actuating panels
  • lateral | front side
• Hysteresis (Switching distance), maximum
  • 2 mm
• Mounting
  • A 20 mm screw length usually suffices to mount the sensor. When the mounting plates are used, we recommend 25 mm long screws.
• Repeat accuracy R
  • 0.5 mm
• Tightening torque of the fixing screws, maximum
  • 0.8 Nm
• Type of the fixing screws
  • 2x M4

Mechanical data - Connection technique

• Note (length of the sensor chain)
  • Cable length and cross-section change the voltage drop dependiing on the output current
• Termination
  • Connector M12, 5-pole, A-coded

Mechanical data - Dimensions

• Height of sensor
  • 18 mm
• Length of sensor
  • 29.5 mm
• Width of sensor
  • 39.2 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Assured switching distance "OFF", frontal
  • 18 mm
• Assured switching distance "OFF", lateral
  • 15 mm
• Assured switching distance "ON", frontal
  • 10 mm
• Assured switching distance "ON", lateral
  • 6 mm
• Note (S
  • The specifications of the safety switching distance S | refer to a temperature range of | -10 °C ... +60 °C. For a temperature range of -25 °C ... +65 °C, S | is reduced by 2 mm.
• Note (switching distance)
  • Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range.
• Typical switching distance, frontal
  • 12 mm
• Typical switching distance, lateral
  • 9 mm

Pin assignment

• PIN 1
  • A1 Supply voltage UB
• PIN 2
  • Y2 Safety output 2
• PIN 3
  • A2 GND
• PIN 4
  • Y1 Safety output 1
• PIN 5
  • OUT Diagnostic output

Safety classification

• Category
  • 4
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFD value
  • 1.20 x 10⁻⁴
• PFH value
  • 6.80 x 10⁻¹⁰ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • EN ISO 13849-1 | EN IEC 61508

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault
