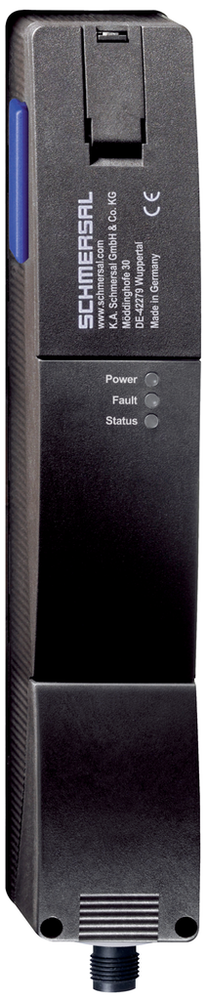

Schmersal 103025858

Accessory

• Recommendation (actuator)
  • AZ/AZM201-B1 | AZ/AZM201-B30

Ambient conditions

• Ambient temperature
  • -25 ... +60 °C
• Degree of protection
  • IP67 | IP66
• Note (Relative humidity)
  • non-condensing | non-icing
• Permissible installation altitude above sea level, maximum
  • 2,000 m
• Protection class
  • III
• Relative humidity, maximum
  • 93 %
• Resistance to vibrations
  • 10 … 150 Hz, amplitude 0.35 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | cULus | ASi-SaW | FCC | IC

Electrical data

• Switching frequency, maximum
  • 1 Hz
• Time to readiness, maximum
  • 4,000 ms

Electrical data - AS Interface

• AS-i Current consumption, maximum
  • 100 mA
• Rated operating voltage
  • 26.5 ... 31.6 VDC (Protection against polarity reversal)

Electrical data - AS-Interface specification

• AS-i, ID-Code
  • 0xB
• AS-i, ID-Code1
  • 0xF
• AS-i, ID-Code2
  • 0xE
• AS-i Input, Channel 1
  • Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Input, Channel 2
  • Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input module address
  • 0
• AS-i, IO-Code
  • 0x7
• AS-i Outputs, DO 0
  • Solenoid control
• AS-i Outputs, DO 1
  • No Function
• AS-i Outputs, DO 2
  • No Function
• AS-i Outputs, DO 3
  • No Function
• AS-i Parameter bits, P0
  • Safety guard and actuator detected
• AS-i Parameter bits, P1
  • Solenoid interlock locked
• AS-i Parameter bits, P2
  • Magnet voltage in tolerance range
• AS-i Parameter bits, P3
  • Internal device error (FID)
• AS-i Profile
  • S-7.B.F.E
• AS-i Specification
  • Safety-Slave
• AS-i Version
  • V 3.0
• Note (AS-i Input module address)
  • Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  • FID: periphery error

Electrical data - Auxiliary voltage

• Current consumption
  • 500 mA
• Operating voltage
  • 24 VDC -15 % / +10 % (stabilised PELV power supply)
• Rated operating voltage
  • 24 VDC

Electrical data - Magnet control

• Magnet switch-on time
  • 100 %

General data

• Coding
  • Individual coding
• Coding level according to EN ISO 14119
  • High
• Duration of risk, maximum
  • 200 ms
• Enclosure material
  • Glass-fibre, reinforced thermoplastic
• Frequency band RFID
  • 125 kHz
• Gross weight
  • 540 g
• Reaction time, maximum
  • 100 ms
• Standards
  • EN IEC 62026-2 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
• Transmitter output RFID, maximum
  • -6 dB/m
• Working principle
  • RFID

General data - Features

• Actuator monitored
  • Yes
• Integral system diagnostics, status
  • Yes
• Latching
  • Yes
• Manual release
  • Yes
• Number of actuating directions
  • 2
• Power to lock
  • Yes
• Safety functions
  • Yes

Mechanical data

• Actuating speed, maximum
  • 0.2 m/s
• Holding force F
  • 2,600 N
  • 2,000 N
• Latching force
  • 30 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Note
  • Torx T10
• Note (clamping force F
  • 1,300 N when used with the AZ/AZM201-B30 actuator, for indoor use.
  • 1,000 N when used with the AZ/AZM201-B30 actuator, for indoor use.
• Tightening torque of the fastening screws for the housing cover, maximum
  • 1 Nm
• Tightening torque of the fastening screws for the housing cover, minimum
  • 0.7 Nm
• Tightening torque of the fixing screws, maximum
  • 8 Nm
• Type of the fixing screws
  • 2x M6

Mechanical data - Connection technique

• Termination
  • Connector plug M12, 4-pole, (A-coding)

Mechanical data - Dimensions

• Height of sensor
  • 220 mm
• Length of sensor
  • 50 mm
• Width of sensor
  • 40 mm

Pin assignment

• PIN 1
  • AS-Interface +
• PIN 2
  • Aux - (P)
• PIN 3
  • AS-Interface -
• PIN 4
  • Aux + (P)

Safety classification

• Standards
  • EN ISO 13849-1 | EN IEC 61508

Safety classification - Interlocking function

• Category
  • 4
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFD value
  • 1.59 x 10⁻⁴
• PFH value
  • 1.81 x 10⁻⁹ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately. | Triangular key for AZM 201

Status indication

• Note (LED switching conditions display)
  • Status and diagnostics: Transmitter + receiver | (2) LED red: Internal device error | (3) LED yellow: Device condition
