Schmersal 103025654
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

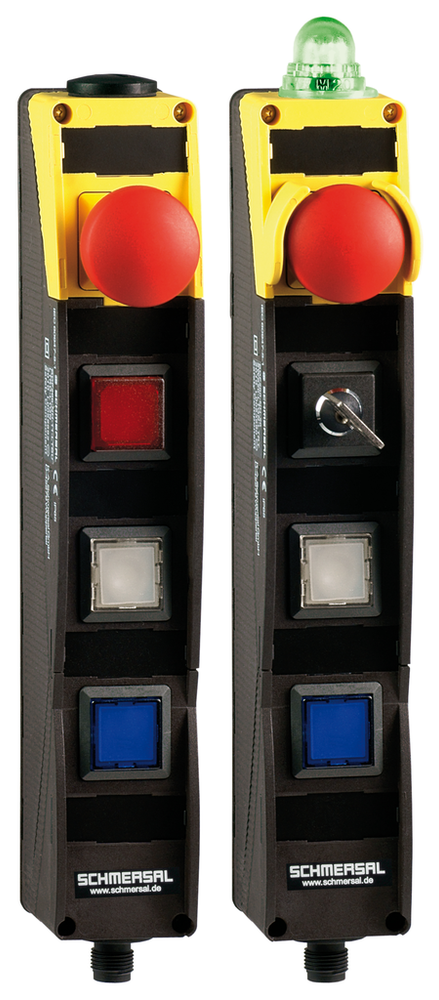

BDF200-FB-NHK-WS20-LTBU-LTBU-G24
Schmersal 103025654 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +65 °C
- Degree of protection
- IP64
- Protection class
- III
- Resistance to vibrations
- 10 … 150 Hz, amplitude 0.35 mm / 5 g
- Restistance to shock
- 30 g / 11 ms
- Storage and transport temperature, maximum
- +85 °C
- Storage and transport temperature, minimum
- -25 °C
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Overvoltage category
- III
- Rated impulse withstand voltage U
- 0.8 kV
- Rated insulation voltage U
- 32 VDC
Approvals - Standards
- Certificates
- TÜV | cULus
Electrical data
- Current consumption at 24V
- 5 mA
- Inputs, Switching thresholds
- −3 V … 5 V (Low) | 15 V … 30 V (High)
- No-load supply current I
- 35 mA
- Operating current
- 150 mA | 600 mA
- Rated operating voltage
- 24 VDC
- Required rated short-circuit current
- 100 A
- Utilisation category DC-12
- 0.25 A
- 24 VDC
- Utilisation category DC-13
- 0.25 A
- 24 VDC
Electrical data - Safety digital outputs
- Design of control elements
- short-circuit proof, p-type
- Leakage current I
- 0.5 mA
- Rated operating current (safety outputs)
- 250 mA
- Voltage drop U
- 1 V
General data
- Climatic stress
- IEC 60947-5-5
- Duration of risk, maximum
- 100 ms
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight
- 280 g
- Positions used, position 1
- Emergency stop, with protective collar
- Positions used, position 2
- Selector switch, 1 latching position and 1 zero position, standard knob
- Positions used, position 3
- Illuminated pushbutton, blue
- Positions used, position 4
- Illuminated pushbutton, blue
- Reaction time, maximum
- 50 ms
- Standards
- EN ISO 13849-1 | EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 60947-5-5 | EN IEC 61508
- Terminal (mechanical)
- Connector plug M12, 8-pole, A-coded
General data - Features
- Field box interface
- Ja
- Indicator lamp
- Yes
- Safety functions
- Yes
- Serial diagnostics
- No
Mechanical data
- Mechanical life, Command devices
- 1,000,000 Operations
- Mechanical life, Emergency-Stop button
- 100,000 Operations
Mechanical data - Dimensions
- Height
- 69 mm
- Length x Width x Height
- Depth: 233.5 - 252.5 mm (without and with indicator lamp)
- Width
- 40 mm
Safety classification
- Category
- 4
- Mission time
- 20 Year(s)
- Note (PFH-value)
- up to max. 5,000 switching cycles/year
- Performance Level, up to
- e
- PFH value
- 2.89 x 10⁻¹⁰ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
- Standards
- EN ISO 13849-1 | EN IEC 61508
Specifications
- Height
- 69 mm
- Width
- 40 mm
