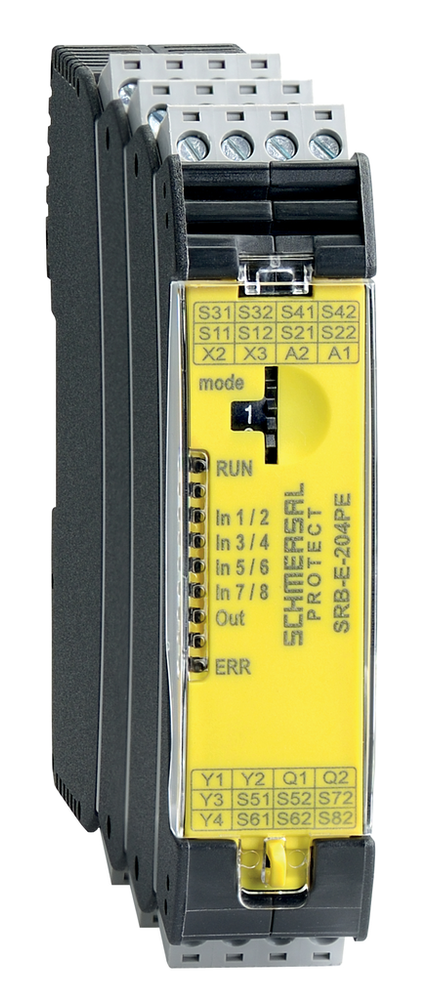

Schmersal 103016571

Ambient conditions

• Ambient temperature
  • -25 ... +60 °C
• Degree of protection of clips or terminals
  • IP20
• Degree of protection of the enclosure
  • IP40
• Degree of protection of the mounting space
  • IP54
• Resistance to vibrations
  • 10 ... 55 Hz, Amplitude 0.35 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -40 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 2
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV

Electrical data

• Drop-out delay in case of emergency, typically
  • 10 ms
• Drop-out delay in case of power failure, typically
  • 10 ms
• Electrical power consumption
  • 3 W
• Operating current
  • 125 mA
• Operating voltage
  • 24 VDC -20 % / +20 %
• Pull-in delay at automatic start, maximum, typically
  • 150 ms
• Rated AC voltage for controls at DC minimum
  • 19.2 VDC
• Rated control voltage at DC, maximum
  • 28.8 VDC
• Rated operating voltage
  • 24 VDC
• Ripple voltage
  • 10 %
• Switching frequency, maximum
  • 1 Hz

Electrical data - Digital inputs

• Conduction resistance, maximum
  • 40 Ω

Electrical data - Digital Output

• Current, Utilisation category DC-12
  • 0.1 A
• Voltage, Utilisation category DC-12
  • 24 VDC

Electrical data - Electromagnetic compatibility (EMC)

• EMC rating
  • EMC-Directive

Electrical data - Safety digital outputs

• Current, Utilisation category DC-12
  • 2 A
• Current, Utilisation category DC-13
  • 2 A
• Leakage current I
  • 1 mA
• Voltage drop U
  • 0.5 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Climatic stress
  • EN 60068-2-78
• Enclosure material
  • Glass-fibre reinforced thermoplastic, ventilated
• Gross weight
  • 250 g
• Standards
  • EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1

General data - Features

• Automatic reset function
  • Yes
• Cross-circuit detection
  • Yes
• Earth connection detection
  • Yes
• Electronic Fuse
  • Yes
• Integral system diagnostics, error code
  • Yes
• Integral system diagnostics, status
  • Yes
• Number of LEDs
  • 7
• Number of normally closed (NC)
  • 8
• Number of normally open (NO)
  • 4
• Number of safety digital outputs, Stop 0
  • 2
• Number of signalling outputs
  • 4
• Removable Terminals
  • Yes
• Stop-Category
  • 0
• Wire breakage detection
  • Yes

Mechanical data

• Mounting
  • Snaps onto standard DIN rail to EN 60715

Mechanical data - Connection technique

• Cable section, maximum
  • 1.5 mm²
• Cable section, minimum
  • 0.25 mm²
• Terminal designations
  • IEC/EN 60947-1
• Termination
  • Cage clamp, plug-in | rigid or flexible

Mechanical data - Dimensions

• Depth
  • 115 mm
• Height
  • 98 mm
• Width
  • 22.5 mm

Other data

• Note (applications)
  • Safety sensor | hinged safety guard | Emergency-Stop button | Pull-wire emergency stop switches | Safety light curtain

Safety classification

• Category
  • 4
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFD value
  • 2.42 x 10⁻⁵
• PFH value
  • 2.66 x 10⁻⁹ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • EN ISO 13849-1 | EN IEC 62061 | EN IEC 61508

Specifications

• Depth
  • 115 mm
• Height
  • 98 mm
• Width
  • 22.5 mm

Status indication

• Indicated operating states
  • Internal operating voltage U | Baustein-Status | Fault codes
