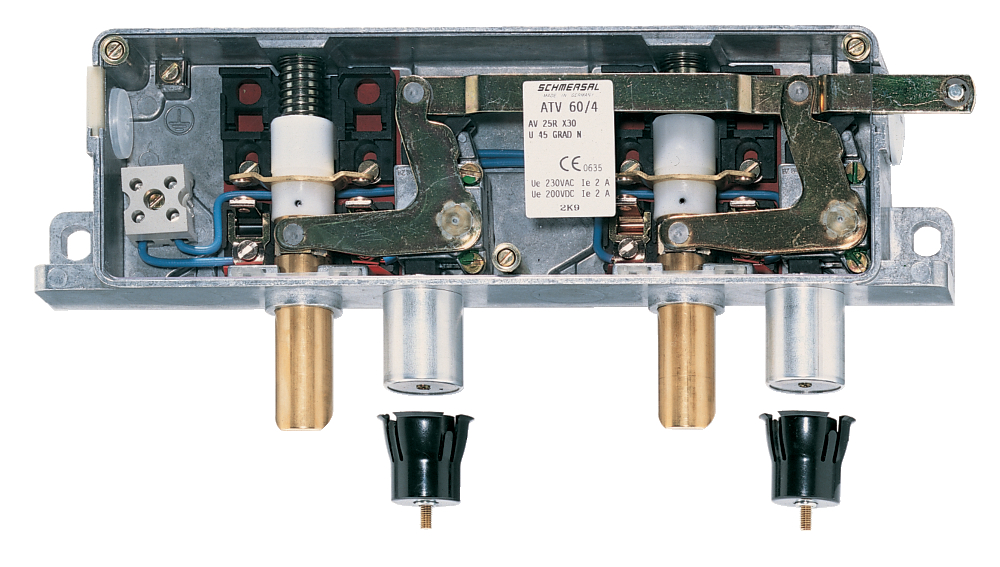

AV25LKX11.5U-GB215
Schmersal 103016463 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -15 ... +70 °C
- Degree of protection
- IP20
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 400 VAC
Approvals - Standards
- Certificates
- TÜV
Electrical data
- Material of the contacts, electrical
- Silver
- Switching element
- NC contact, NO contact
- Switching principle
- Slow action
- Thermal test current
- 10 A
- Utilisation category AC-15
- 2 A
- 230 VAC
- Utilisation category DC-13
- 2 A
- 200 VDC
General data
- Enclosure material
- Light alloy die-casting
- Gross weight
- 1,390 g
- Material of the latching bolt
- Brass
- Standards
- EN 81-20 | EN 81-50
General data - Features
- Manual release
- Yes
- Number of door leafs
- 2
- Number of safety contacts
- 2
- Safety functions
- Yes
- With fail-safe locking system (Y/N)
- Yes
Mechanical data
- Actuating element
- Pull strap
- Mounting
- rear-side mounting holes
- Orientation / Alignment
- left-hand model
- Permanent magnet
- Ceramic oxide magnets with high coercive field strength
Mechanical data - Connection technique
- Cable entry
- without cable gland
Mechanical data - Dimensions
- Depth
- 36 mm
- Diameter of the latching bolt
- 18 mm
- Height
- 80 mm
- Latching bolt bevelling, bottom
- 45 °
- Note (X-dimension of the latching bolt)
- The entire locking bolt length results from the prescribed insertion depth of the locking bolt into the door leaf of 21 mm and dimension X. Dimension X represents the distance between the bottom of the enclosure of the door closing device and the top of the door.
- Width
- 285 mm
- X-dimension of the latching bolt
- 11.5 mm
Note
- Note (Manual release)
- For manual release using M5 triangular key, available as accessory
