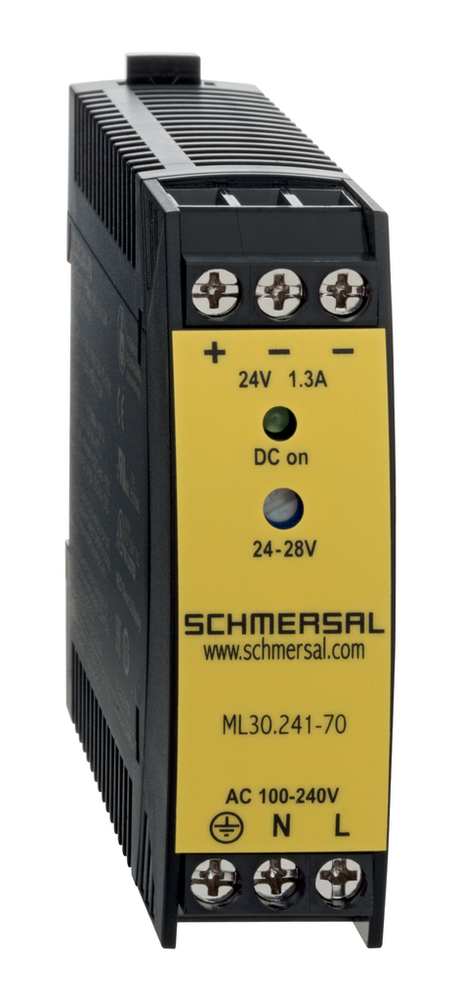

Schmersal 103015923
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ML30.241-70
Schmersal 103015923 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -10 ... +70 °C
- Degree of protection of the enclosure
- IP20
- Resistance to vibrations
- 2
- Restistance to shock
- 30 g 6 ms, 20 g 11 ms (IEC 60068-2-27)
- Storage and transport temperature, maximum
- +85 °C
- Storage and transport temperature, minimum
- -40 °C
Ambient conditions - Insulation values
- Degree of pollution
- 2
Electrical data
- Frequency range
- 50 Hz | 60 Hz
- Operating current
- 0.3 mA | 0.54 mA
- Operating voltage
- 100 ... 240 VAC -15 % / +10 %
- Rated AC voltage for controls, 50 Hz, minimum
- 100 VAC
- Rated AC voltage for controls, 60 Hz, minimum
- 100 VAC
- Rated AC voltage for controls at DC minimum
- 110 VDC
- Rated control voltage at AC 50 Hz, maximum
- 240 VAC
- Rated control voltage at AC 60 Hz, maximum
- 240 VAC
- Rated control voltage at DC, maximum
- 300 VDC
- Rated operating voltage
- 100 ... 240 VAC
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- EMC-Directive
General data
- Climatic stress
- IEC 60068-2-30
- Gross weight
- 140 g
- Standards
- EN 50178 | EN IEC 62061 | IEC 60364-4-41 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | IEC 62103 | EN IEC 60204-1 | EN IEC 60947-1
General data - Features
- Integral system diagnostics, status
- Yes
- Number of LEDs
- 1
Mechanical data
- Mounting
- Snaps onto standard DIN rails to IEC 60715
Mechanical data - Connection technique
- Cable section, maximum
- 6 mm²
- Cable section, minimum
- 0.5 mm²
- Termination
- rigid or flexible | Screw terminals M20 x 1.5
- Tightening torque of Clips
- 1 Nm
Mechanical data - Dimensions
- Depth
- 91 mm
- Height
- 75 mm
- Width
- 22.5 mm
Specifications
- Depth
- 91 mm
- Height
- 75 mm
- Width
- 22.5 mm
