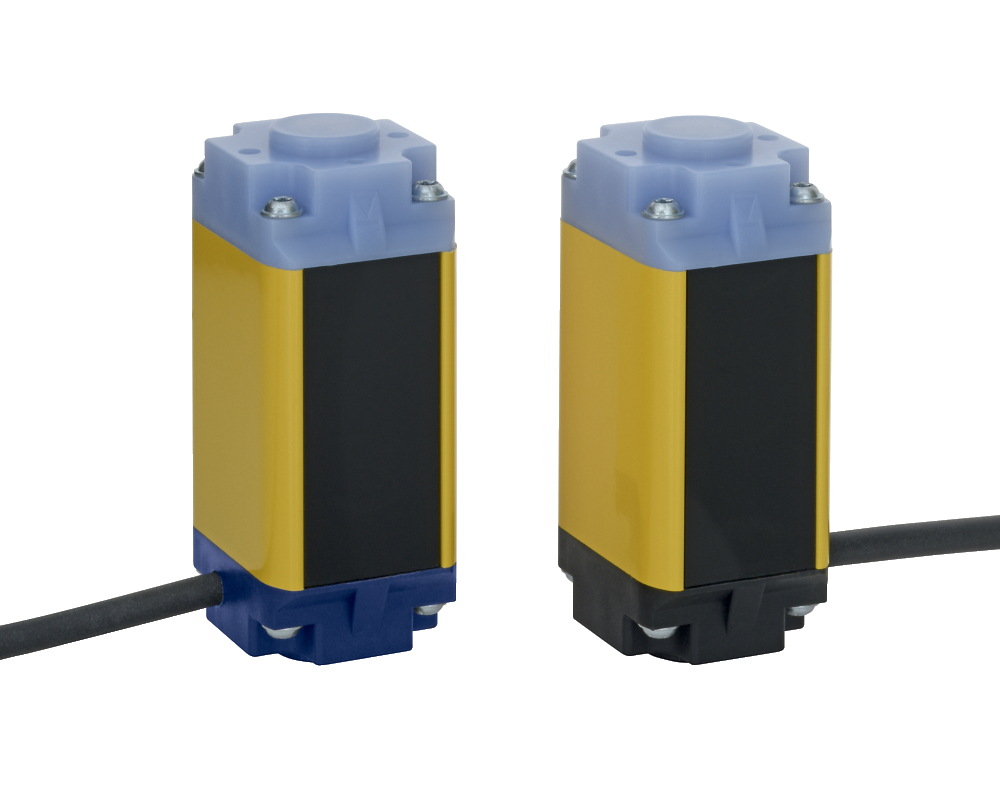

Schmersal 103015497
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SLB440-ER-1-LST-H-EH
Schmersal 103015497 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommended safety switchgear
- PROTECT PSC1 | SRB-E-204ST
Ambient conditions
- Ambient temperature
- -30 ... +50 °C
- Degree of protection
- IP67
- Protection class
- III
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -30 °C
Approvals - Standards
- Certificates
- TÜV
Electrical data
- Electrical power consumption of the receiver, maximum
- 45 W
- Electrical power consumption of the transmitter, maximum
- 45 W
- Length of cable, maximum
- 100 m
- Switching voltage OSSD, HIGH signal
- 24 V
Electrical data - Safety digital outputs
- Design of control elements
- p-type
- Output current, (fail-safe output), maximum
- 0.2 A
General data
- Enclosure material
- Aluminium
- Gross weight
- 310 g
- Reaction time, maximum
- 22 ms
- Reaction time, minimum
- 7 ms
- Standards
- EN IEC 61496-2 | EN IEC 61496-1
General data - Features
- Beam coding available
- Yes
- Integral system diagnostics
- Yes
- Integral system diagnostics, status
- Yes
- Number of beams
- 1
- Number of fail-safe digital outputs
- 2
- Restart interlock (manual reset)
- Yes
- Wave length of the sensor
- 880 nm
Mechanical data
- Detection ability for test bodies at v = 1.6 m/s
- 100 mm
- Range, protection field, maximum
- 75,000 mm
- Range, protection field, minimum
- 300 mm
Mechanical data - Connection technique
- Terminal connector, Recipient
- Cable with connector plug M12, 5-pole
- Terminal, Connector, Transmitter
- Cable with connector plug M12, 4-pole
- Termination
- Connector M12
Mechanical data - Dimensions
- Height
- 111 mm
- Width
- 27.8 mm
Safety classification
- Category
- 4
- Mission time
- 20 Year(s)
- Performance Level, up to
- e
- PFH value
- 1.50 x 10⁻⁸ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
- Safety type in accordance with IEC 61496-1
- 4
- Standards
- EN ISO 13849-1 | EN IEC 62061
Specifications
- Height
- 111 mm
- Length
- 33 mm
- Width
- 27.8 mm
