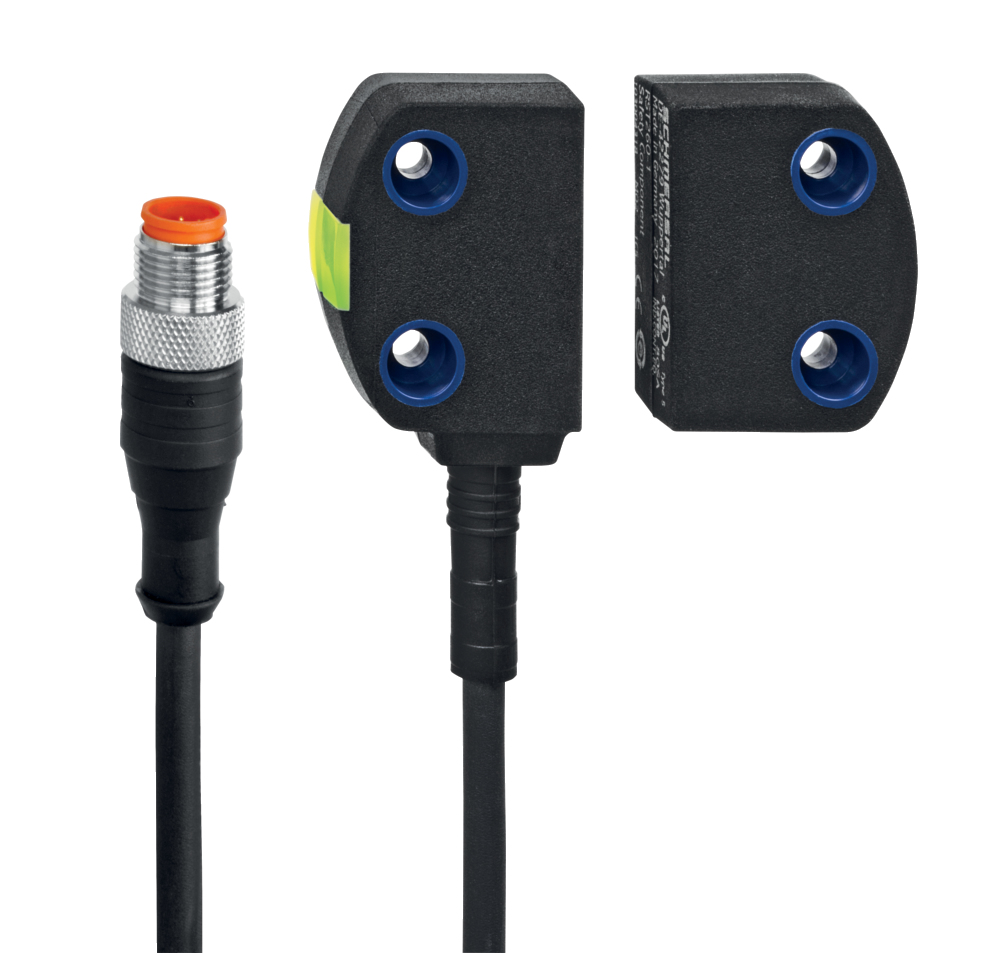

Schmersal 103014764

Accessory

• Recommendation (actuator)
  • RST260-1

Ambient conditions

• Ambient temperature
  • -25 ... +60 °C
• Degree of protection
  • IP65 | IP67
• Protection class
  • III
• Resistance to vibrations
  • 10 … 55 Hz, amplitude 1 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | cULus | ASi-SaW | FCC

Electrical data

• Switching frequency, maximum
  • 1 Hz
• Time to readiness, maximum
  • 2,000 ms

Electrical data - AS Interface

• AS-i Current consumption, maximum
  • 100 mA
• Rated operating voltage
  • 18 ... 31.6 VDC (Protection against polarity reversal)

Electrical data - AS-Interface specification

• AS-i, ID-Code
  • 0xB
• AS-i, ID-Code1
  • 0xF
• AS-i, ID-Code2
  • 0xE
• AS-i Input, Channel 1
  • Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Input, Channel 2
  • Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input module address
  • 0
• AS-i, IO-Code
  • 0x0
• AS-i Outputs, DO 0 … DO 3
  • No Function
• AS-i Parameter bits, P0
  • Actuator in
• AS-i Parameter bits, P1
  • Enabling inhibit (tamper protection time) active (FID))
• AS-i Parameter bits, P2
  • Enabling inhibit (tamper protection time) active (FID)
• AS-i Parameter bits, P3
  • Internal device error (FID)
• AS-i Profile
  • S-0.B.F.E
• AS-i Specification
  • Safety-Slave
• AS-i Version
  • V 2.1
• Note (AS-i Input module address)
  • Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  • Set the parameter outputs to "1111" (0xF) | FID: periphery error

General data

• Coding
  • Individual coding, multiple teaching
• Coding level according to EN ISO 14119
  • High
• Duration of risk, maximum
  • 200 ms
• Enclosure material
  • Thermoplastic hotmelt
• Gross weight
  • 83 g
• Reaction time, maximum
  • 100 ms
• Standards
  • EN IEC 62026-2 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
• Working principle
  • RFID

General data - Features

• Coding
  • Yes
• Integral system diagnostics, status
  • Yes
• Number of actuating directions
  • 2
• Safety functions
  • Yes

Mechanical data

• Hysteresis (Switching distance), maximum
  • 2 mm
• Repeat accuracy R
  • 0.5 mm

Mechanical data - Connection technique

• Length of cable
  • 0.25 m
• Termination
  • Connecting cable with M12 connector, straight, 4-pole

Mechanical data - Dimensions

• Height of sensor
  • 29.5 mm
• Length of sensor
  • 18 mm
• Width of sensor
  • 40 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Assured switching distance "OFF", frontal
  • 18 mm
• Assured switching distance "OFF", lateral
  • 15 mm
• Assured switching distance "ON", frontal
  • 10 mm
• Assured switching distance "ON", lateral
  • 6 mm
• Switching distance S
  • 12 mm | 9 mm (in case of approach from side)

Pin assignment

• PIN 1
  • AS-Interface +
• PIN 2
  • n.c. (≤ 30 VDC)
• PIN 3
  • AS-Interface -
• PIN 4
  • n.c. (≤ 30 VDC)

Safety classification

• Category
  • 4
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFD value
  • 6.89 x 10⁻⁵
• PFH value
  • 3.93 x 10⁻¹⁰ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • EN IEC 61508

Scope of delivery

• Note (scope of delivery, number and type)
  • Actuator incl. mounting plate
• Scope of delivery
  • Actuator must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • (1) green/red LED (AS-i Duo LED):Supply voltage / communication error / slave address = 0 / periphery error detected / Tamper protection time active | (2) yellow LED: device condition (enabling status) / hysteresis signal / device error
