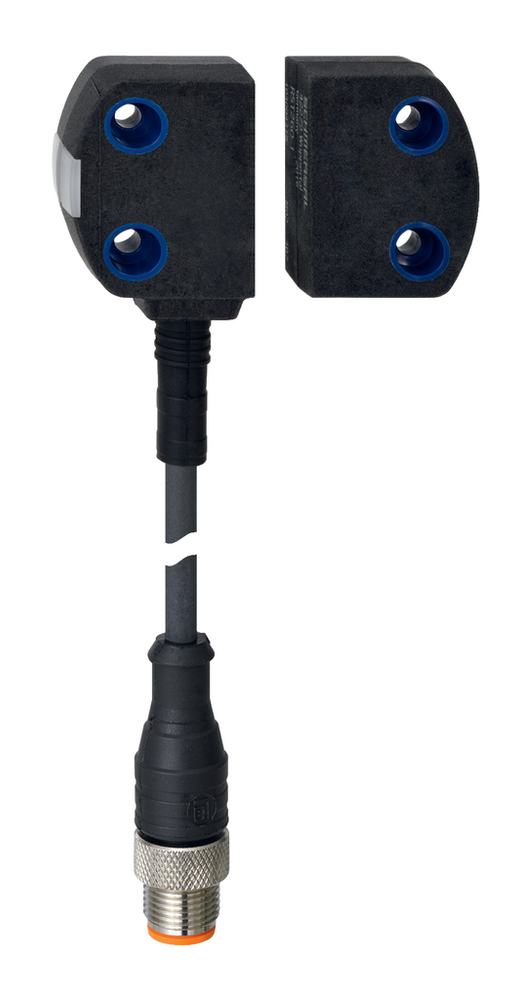

Schmersal 103014732

Accessory

• Recommendation (actuator)
  • RST16-1 | RST-U-2 | RST260-1

Ambient conditions

• Ambient temperature, maximum
  • +65 °C
• Ambient temperature, minimum
  • -25 °C
• Degree of protection
  • IP65 to EN 60529 | IP67 to EN 60529
• Resistance to vibrations to EN 60068-2-6
  • 10 … 55 Hz, amplitude 1 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation value

• Degree of pollution to VDE 0100
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approval - Standards

• Certificates
  • TÜV | cULus | EAC | FCC | IC

Electrical data

• No-load supply current I
  • 100 mA
• Operating current
  • 600 mA
• Rated operating voltage
  • 24 VDC -15% / +10%
• Rated operating voltage, maximum
  • 26.4 VDC
• Rated operating voltage, minimum
  • 20.4 VDC
• Required rated short-circuit current to EN 60947-5-1
  • 100 A
• Switching frequency, approx.
  • 1 Hz
• Voltage type
  • DC (direct current)

Electrical data - Diagnostic output

• Current, Utilisation category DC-12
  • 0.05 A
• Current, Utilisation category DC-13
  • 0.05 A
• Operating current
  • 50 mA
• Versions
  • p-type
• Voltage drop U
  • 2 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Electromagnetic compatibility (EMC)

• EMC rating
  • IEC 60947-3
• Interfering radiation
  • IEC 61000-6-4

Electrical data - Fail-safe digital outputs

• Current leakage I
  • 0.5 mA
• Current, Utilisation category DC-12
  • 0.25 A
• Current, Utilisation category DC-13
  • 0.25 A
• Versions
  • p-type
• Voltage drop U
  • 1 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Active area
  • Glass-fibre, thermoplastic
• Active principle
  • RFID
• Coding level according to ISO 14119
  • High
• Duration of risk, maximum
  • 200 ms
• Enclosure material
  • Plastic, thermoplastic, self-extinguishing
• general information
  • Individual coding, multiple teaching
• Gross weight
  • 161 g
• Housing construction form
  • Block
• Installation conditions (mechanical)
  • not flush
• Reaction time, maximum
  • 100 ms
• Standards
  • IEC 60947-5-3
• Time to readiness, maximum
  • 2,000 ms

General data - Features

• Number of poles
  • 8
• Safety functions
  • Yes
• Short circuit detection
  • Yes
• Short-circuit recognition
  • Yes

Mechanical data

• Active area
  • lateral | front
• Actuating panels
  • lateral | front side
• Hysteresis (Switch distance), maximum
  • 2 mm
• Mounting
  • A 20 mm screw length usually suffices to mount the sensor. When the mounting plates are used, we recommend 25 mm long screws.
• Repeat accuracy R R
  • 0.5 mm

Mechanical data - Connection technique

• Note
  • The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
• Terminal Connector
  • Connector M8, 8-pole

Mechanical data - Dimensions

• Height of sensor
  • 18 mm
• Length of sensor
  • 29.5 mm
• Width of sensor
  • 39.2 mm

Mechanical data - Switching distances according IEC 60947-5-3

• Ensured switch distance "OFF" S
  • 15 mm
• Ensured switching distance "OFF", front
  • 18 mm
• Ensured switching distance "ON", front
  • 10 mm
• Ensured switching distance "ON", side
  • 6 mm

Pin assignment

• PIN 1
  • A1 Supply voltage UB
• PIN 2
  • X1 Safety input 1
• PIN 3
  • A2 GND
• PIN 4
  • Y1 Safety output 1
• PIN 5
  • OUT Diagnostic output
• PIN 6
  • X2 Safety input 2
• PIN 7
  • Y2 Safety output 2
• PIN 8
  • without function

Safety appraisal

• Control category to EN13849
  • 4
• Mission Time
  • 20 Year(s)
• Performance level, up to
  • e
• PFH-value
  • 6.80 x 10⁻¹⁰ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • EN ISO 13849-1 | IEC 60947-5-3 | EN 62061 | IEC 61508

Status indication

• Note (LED switching conditions display)
  • (1) LED green: Supply voltage | LED yellow: Operating condition | LED red: Fault
