Description
PFB-IOP-4M12-IOP

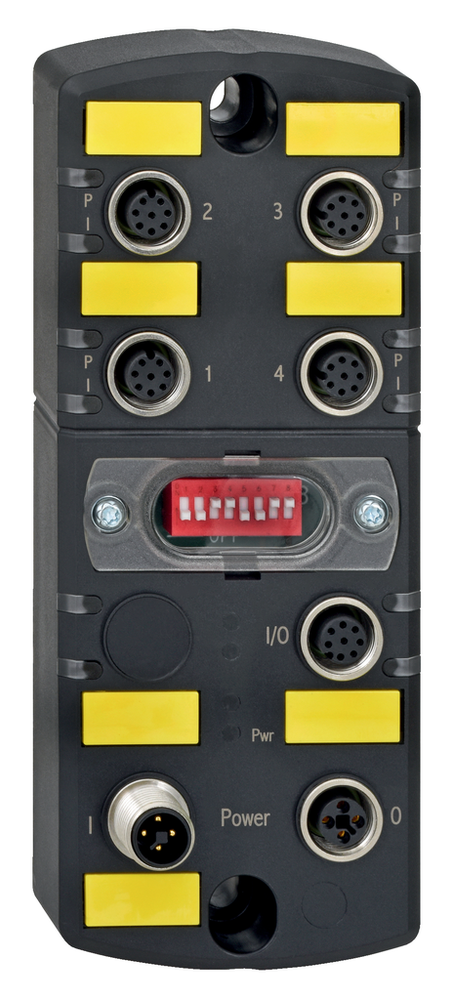

Schmersal 103013573 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -20 ... +65 °C
- Degree of protection
- IP67
- Note (Relative humidity)
- non-condensing
- Protection class
- III
- Relative humidity, maximum
- 95 %
- Relative humidity, minimum
- 10 %
- Resistance to vibrations
- 10 … 150 Hz, amplitude 0.35 mm
- Restistance to shock
- 30 g / 11 ms
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -40 °C
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Overvoltage category
- III
- Rated impulse withstand voltage U
- 0.8 kV
- Rated insulation voltage U
- 32 VDC
Approvals - Standards
- Certificates
- cULus
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- Rated operating voltage
- 24 VDC
General data
- Enclosure material
- Thermoplastic, Polyamide PA 6 GF
- Gross weight
- 450 g
- Standards
- EN IEC 62061 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 60204-1 | EN IEC 60947-1
General data - Features
- Integral system diagnostics, status
- Yes
- Number of LEDs
- 9
Mechanical data - Connection technique
- Termination
- M12 Connector socket/connector
Mechanical data - Dimensions
- Depth
- 36.1 mm
- Height
- 156.6 mm
- Width
- 63 mm
Specifications
- Depth
- 36.1 mm
- Height
- 156.6 mm
- Width
- 63 mm
