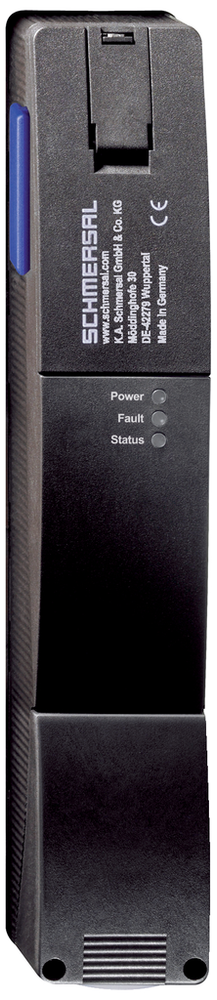

Schmersal 103013483

Accessory

• Recommendation (actuator)
  • AZ/AZM201-B1 | AZ/AZM201-B30

Ambient conditions

• Ambient temperature, maximum
  • +60 °C
• Ambient temperature, minimum
  • -25 °C
• Degree of protection
  • IP66 to EN 60529 | IP67 to EN 60529
• Note (Relative humidity)
  • non-condensing
• Protection rating
  • III
• Relative humidity, maximum
  • 95 %
• Relative humidity, minimum
  • 30 %
• Resistance to vibrations to EN 60068-2-6
  • 10 … 150 Hz, amplitude 0.35 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation value

• Degree of pollution to VDE 0100
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approval - Standards

• Certificates
  • TÜV | cULus | EAC | FCC | IC

Electrical data

• Current consumption with solenoid ON, average
  • 200 mA
• Current consumption with solenoid ON, peak
  • 700 mA / 100 ms
• No-load supply current I
  • 50 mA
• Operating current
  • 1,200 mA
• Operating voltage, maximum
  • 26.4 VDC
• Operating voltage, minimum
  • 20.4 VDC
• Switching frequency, approx.
  • 1 Hz

Electrical data - Diagnostic output

• Current, Utilisation category DC-13
  • 0.05 A
• Operating current
  • 50 mA
• Voltage drop U
  • 4 V
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Fail-safe digital inputs

• Classification ZVEI CB24I, Sink
  • C1
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Switching thresholds
  • −3 V … 5 V (Low) | 15 V … 30 V (High)

Electrical data - Fail-safe digital outputs

• Classification ZVEI CB24I, Sink
  • C1 | C2
• Classification ZVEI CB24I, Source
  • C2
• Current leakage I
  • 0.5 mA
• Current, Utilisation category DC-13
  • 0.25 A
• Rated operating current (safety outputs)
  • 250 mA
• Voltage drop U
  • 4 V
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Solenoid control

• Classification ZVEI CB24I, Sink
  • C0
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Switching thresholds
  • -3 V … 5 V (Low) | 15 V … 30 V (High)

General data

• Active principle
  • RFID
• Coding level according to ISO 14119
  • High
• Duration of risk, maximum
  • 200 ms
• Enclosure material
  • Glass-fibre, reinforced thermoplastic
• general information
  • Individual coding
• Gross weight
  • 588 g
• Response time safety outputs in case of switch-off by actuator, maximum
  • 100 ms
• Response time safety outputs in case of switch-off by safety inputs, maximum
  • 0.5 ms
• Standards
  • IEC 60947-5-1 | EN ISO 13849-1 | IEC 61508 | IEC 60947-5-3 | EN ISO 14119 | IEC 62061
• Time to readiness, maximum
  • 4,000 ms

General data - Features

• Guard locking monitored
  • Yes
• Integral System Diagnostics, status
  • Yes
• Manual release
  • Yes
• Number of safety contacts
  • 2
• Power to unlock
  • Yes
• Safety functions
  • Yes
• Series-wiring
  • Yes
• Short circuit detection
  • Yes
• Short-circuit recognition
  • Yes

Mechanical data

• Actuating speed, maximum
  • 0.2 m/s
• Clamping force in accordance with EN ISO 14119 F
  • 2,000 N
• Clamping force, maximum F
  • 2,600 N
• Latching force
  • 30 N
• Mechanical life, minimum
  • 1,000,000 Operations

Mechanical data - Connection technique

• Cable section, maximum
  • 1.5 mm²
• Cable section, minimum
  • 0.25 mm²
• Note (Cable section)
  • All indications about the cable section are including the conductor ferrules.
• Terminal Connector
  • Screw terminals M20 x 1.5
• Wire cross-section, maximum
  • 15 AWG
• Wire cross-section, minimum
  • 23 AWG

Mechanical data - Dimensions

• Height of sensor
  • 220 mm
• Length of sensor
  • 50 mm
• Width of sensor
  • 40 mm

Safety appraisal

• Standards
  • IEC 62061 | IEC 61508 | EN ISO 13849-1

Safety appraisal - Guard locking

• Control category
  • 2
• Mission Time
  • 20 Year(s)
• Performance level, up to
  • d
• PFD value
  • 8.90 x 10⁻⁴
• PFH-value
  • 1.00 x 10⁻⁸ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 2

Safety appraisal - Interlocking

• Control category
  • 4
• Mission Time
  • 20 Year(s)
• Performance level, up to
  • e
• PFD value
  • 1.60 x 10⁻⁴
• PFH-value
  • 1.90 x 10⁻⁹ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3

Scope of delivery

• Included in delivery
  • Actuators must be ordered separately. | Triangular key for AZM 201

Status indication

• Note (LED switching conditions display)
  • Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
