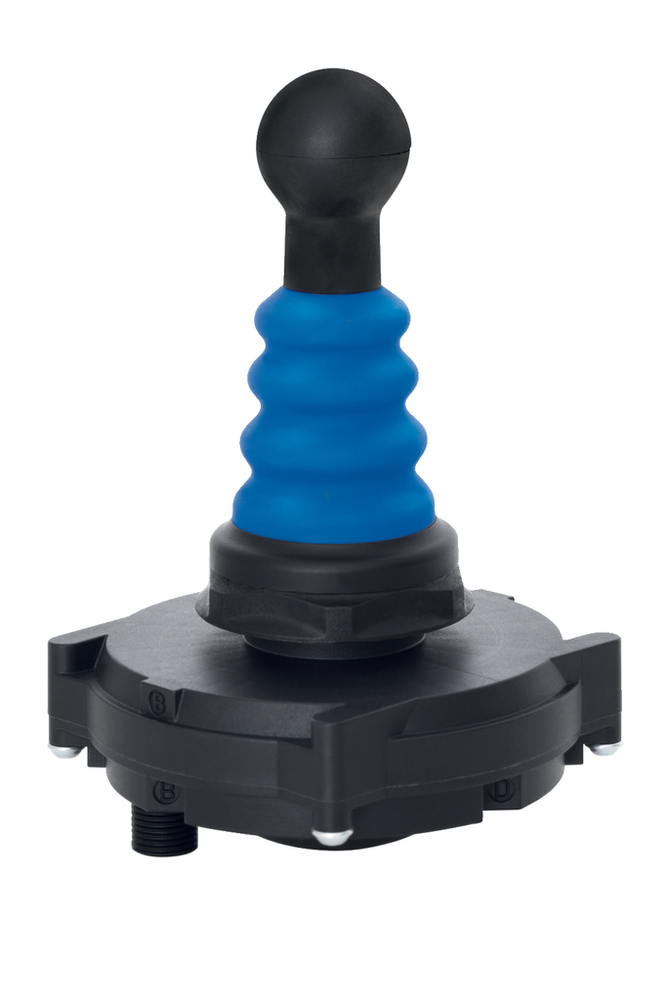

Schmersal 103012431
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
NK-T-41-1ST8-2
Schmersal 103012431 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -40 ... +80 °C
- Degree of protection of the contact element
- IP67
- Degree of protection of the front panel
- IP67 | IP69
- Restistance to shock
- 30 g / 11 ms
Ambient conditions - Insulation values
- Degree of pollution
- 2
- Rated impulse withstand voltage U
- 0.5 kV
- Rated insulation voltage U
- 30 V
Approvals - Standards
- Certificates
- BG | cULus
Electrical data
- Operating current
- 300 mA
- Switching capacity, maximum
- 7.2 W
- Switching frequency
- 1,200 /h
- Switching principle
- Reed contacts, Non-contact principle
- Utilisation category DC-12
- 30 VDC
- 0.3 A
General data
- Colour of the bellows
- Blue
- Colour of the front ring
- Black
- Gross weight
- 160 g
- Installation conditions (mechanical)
- arbitrarily
- Material of the bellows
- Silicone
- Material of the front ring
- Plastic
- Material of the operators
- Plastic
- Material thickness of the sealing bellows
- 1.5 mm
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
General data - Features
- External applications
- Yes
- Note (Touch positions)
- Position A, B, C, D
- Number of directions
- 4
- Number of mechanical terminals
- 1
- Number of the touch position
- 4
- Probing possible
- Yes
- Return to zero position
- Yes
- Sealing element, additional
- Yes
Mechanical data
- Actuating force, approx.
- 11 N
- Mechanical life, minimum
- 1,000,000 Operations
- Mechanical life, Touch position (for each position)
- 500,000 Operations
- Mounting
- central nut SW41
- switching angle
- 20 °
Mechanical data - Connection technique
- Termination
- Connector M12, 8-pole
Mechanical data - Dimensions
- Diameter for the Installation to EN 60947-1
- 22.3 + 0.4 mm
- Length of the actuator
- 85 mm
- Mounting depth
- 30 mm
- Mounting diameter
- 22.3 mm
- Note (Mounting depth)
- Plus connectors
- Spacing
- 90 x 90 mm
- Thickness of the front panel, maximum
- 6 mm
- Thickness, of the front panel, minimum
- 1.5 mm
