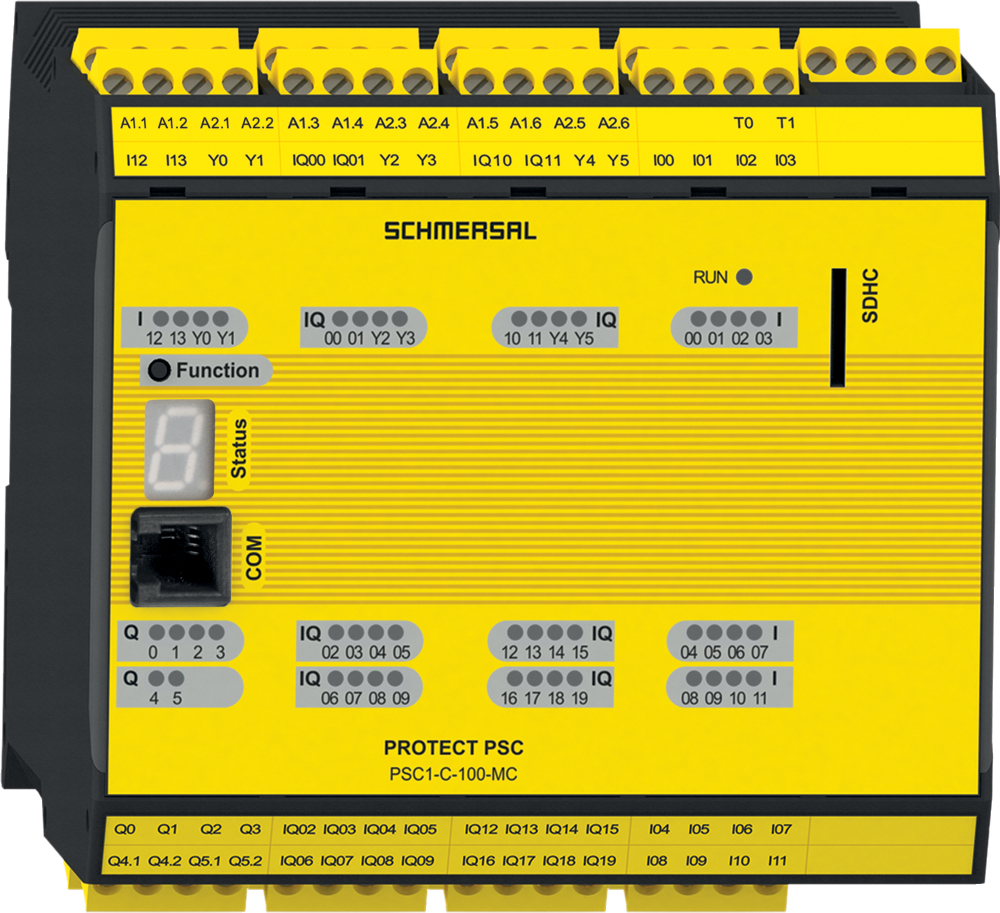

Schmersal 103008451
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PSC1-C-100-MC
Schmersal 103008451 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- +0 ... +50 °C
- Degree of protection
- IP20
- Note (Relative humidity)
- non-condensing
- Permissible installation altitude above sea level, maximum
- 2,000 m
- Relative humidity, maximum
- 85 %
- Relative humidity, minimum
- 5 %
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -25 °C
Ambient conditions - Insulation values
- Degree of pollution
- 2
- Overvoltage category
- III
Approvals - Standards
- Certificates
- TÜV | cULus
Electrical data
- Operating voltage
- 24 VDC -15 % / +20 %
- Rated operating voltage
- 24 VDC
Electrical data - Electromagnetic compatibility (EMC)
- Electromagnetic compatibility
- DIN EN 62061 | DIN EN 61800-3
- EMC rating
- DIN EN 61000-6-7 | DIN EN 61326-3 | DIN EN 61000-6-2
- Interfering radiation
- DIN EN 61000-6-4
Electrical data - Safety digital outputs
- Design of control elements
- short-circuit proof, p-type (Q2 und Q3)
General data
- Gross weight
- 1,200 g
- Terminal (mechanical)
- Removable screw terminals
General data - Features
- Anzahl der Erweiterungsbaugruppen, maximal
- 8
- Master-Master-Kommunikation
- No
- Number of digital fail-safe in-/outputs
- 20
- Number of digital fail-safe inputs
- 14
- Number of fail-safe digital outputs
- 4
- Number of pulse outputs (test pulse output)
- 6
- Number of relay outputs (1-channel)
- 2
- Number of signalling outputs
- 6
- SD Card Slot
- Yes
Mechanical data
- Mounting
- can be clipped into standard rail
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.2 mm²
- Wire cross-section
- 24 ... 12 AWG
- Wire cross-section, maximum
- 12 AWG
- Wire cross-section, minimum
- 24 AWG
Mechanical data - Dimensions
- Depth
- 115 mm
- Height
- 100 mm
- Width
- 112.5 mm
Safety classification
- Category
- 4
- Mission time
- 20 Year(s)
- Performance Level, up to
- e
- PFH value
- 1.22 x 10⁻⁸ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
Scope of delivery
- Scope of delivery
- Backplane bus connector | Connector terminals
Specifications
- Depth
- 115 mm
- Height
- 100 mm
- Width
- 112.5 mm
