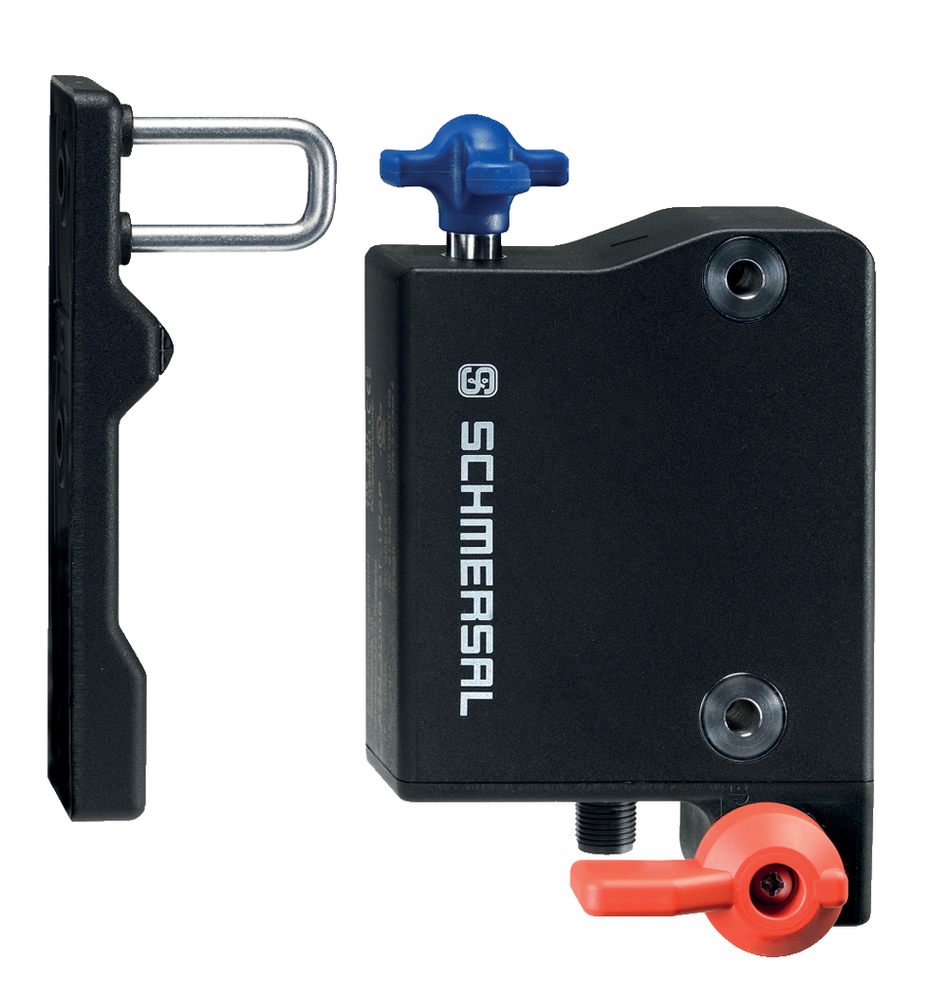

Schmersal 103008177

Accessory

• Recommendation (actuator)
  • AZ/AZM300-B1

Ambient conditions

• Ambient temperature, maximum
  • +60 °C
• Ambient temperature, minimum
  • +0 °C
• Degree of protection
  • IP66 to EN 60529 | IP67 to EN 60529 | IP69 to EN 60529
• Note (Relative humidity)
  • non-condensing | non-icing
• Protection rating
  • III
• Relative humidity, maximum
  • 93 %
• Resistance to vibrations to EN 60068-2-6
  • 10 … 150 Hz, amplitude 0.35 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +90 °C
• Storage and transport temperature, minimum
  • -10 °C
• Zulässige Aufstellhöhe über NN, maximum
  • 2,000 m

Ambient conditions - Insulation value

• Degree of pollution to IEC/EN 60664-1
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approval - Standards

• Certificates
  • TÜV | cULus | ECOLAB | EAC | FCC | IC

Electrical data

• Current consumption with solenoid ON, average
  • 200 mA
• Current consumption with solenoid ON, peak
  • 350 mA / 200 ms
• External wiring and device fuse rating
  • 2 A gG
• No-load supply current I
  • 100 mA
• Notes (Power supply, general)
  • stabilised PELV power supply
• Operating voltage, maximum
  • 26.4 VDC
• Operating voltage, minimum
  • 20.4 VDC
• Required rated short-circuit current to EN 60947-5-1
  • 100 A
• Switching frequency, maximum
  • 0.5 Hz

Electrical data - Diagnostic output

• Current, Utilisation category DC-12
  • 0.05 A
• Current, Utilisation category DC-13
  • 0.05 A
• Versions
  • short-circuit proof, p-type
• Voltage drop U
  • 4 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Fail-safe digital inputs

• Classification ZVEI CB24I, Sink
  • C1
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Current consumption at 24V
  • 5 mA
• Switching thresholds
  • −3 V … 5 V (Low) | 15 V … 30 V (High)
• Test pulse duration, maximum
  • 1 ms
• Test pulse interval, minimum
  • 100 ms

Electrical data - Fail-safe digital outputs

• Classification ZVEI CB24I, Sink
  • C1 | C2
• Classification ZVEI CB24I, Source
  • C2
• Current leakage I
  • 0.5 mA
• Current, Utilisation category DC-12
  • 0.25 A
• Current, Utilisation category DC-13
  • 0.25 A
• Test pulse duration, maximum
  • 0.5 ms
• Test pulse interval, typical
  • 1000 ms
• Versions
  • short-circuit proof, p-type
• Voltage drop U
  • 4 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Serial diagnostic SD

• Operation current
  • 150 mA
• Wiring capacity
  • 50 nF

Electrical data - Solenoid control

• Classification ZVEI CB24I, Sink
  • C0
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Duty cycle solenoid
  • 100 %
• Switching thresholds
  • -3 V … 5 V (Low) | 15 V … 30 V (High)
• Test pulse duration, maximum
  • 5 ms
• Test pulse interval, minimum
  • 40 ms

General data

• Active principle
  • RFID
• Coding level according to ISO 14119
  • Low
• Duration of risk, maximum
  • 200 ms
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Frequency band RFID
  • 125 kHz
• general information
  • Universal coding
• Gross weight
  • 650 g
• Response time safety outputs in case of switch-off by actuator, maximum
  • 100 ms
• Response time safety outputs in case of switch-off by safety inputs, maximum
  • 1.5 ms
• Standards
  • IEC 61508 | IEC 60947-5-3 | EN ISO 13849-1 | EN ISO 14119
• Time to readiness, maximum
  • 5,000 ms
• Transmit power, maximum
  • -6 dB/m

General data - Features

• Emergency exit
  • Yes
• Guard locking monitored
  • Yes
• Integral System Diagnostics, status
  • Yes
• Latching
  • Yes
• Number of fail-safe digital outputs
  • 2
• Power to unlock
  • Yes
• Safety functions
  • Yes
• Serial diagnostics
  • Yes
• Series-wiring
  • Yes
• Short circuit detection
  • Yes
• Short-circuit recognition
  • Yes

Mechanical data

• Angular offset between interlocking device and actuator, maximum
  • 2 °
• Clamping force in accordance with EN ISO 14119 F
  • 1,150 N
• Clamping force, maximum F
  • 1,500 N
• Latching force, adjustable, position 1
  • 25 N
• Latching force, adjustable, position 2
  • 50 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Note (Mechanical lifetime)
  • When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
• Tightening torque for the fixing screws, maximum
  • 7 Nm
• Tightening torque of the fixing screws, minimum
  • 6 Nm
• Type of the fixing screws
  • 2x M6

Mechanical data - Connection technique

• Length of sensor chain, maximum
  • 200 m
• Note (length of the sensor chain)
  • Cable length and cross-section change the voltage drop dependiing on the output current
• Note (series connection of the sensors)
  • Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
• Terminal Connector
  • Connector M12, 8-pole, A-coded

Mechanical data - Dimensions

• Height of sensor
  • 55 mm
• Length of sensor
  • 146 mm
• Width of sensor
  • 87.5 mm

Mechanical data - Switching distances according IEC 60947-5-3

• Ensured switch distance "OFF" S
  • 20 mm
• Ensured switch distance "ON" S
  • 1 mm
• Switch distance
  • 2 mm

Pin assignment

• PIN 1
  • A1 Supply voltage UB
• PIN 2
  • X1 Safety input 1
• PIN 3
  • A2 GND
• PIN 4
  • Y1 Safety output 1
• PIN 5
  • OUT serial diagnostic output
• PIN 6
  • X2 Safety input 2
• PIN 7
  • Y2 Safety output 2
• PIN 8
  • IN serial diagnostic input

Safety appraisal

• Standards
  • EN ISO 13849-1 | IEC 61508

Safety appraisal - Interlocking

• Control category
  • 4
• Mission Time
  • 20 Year(s)
• Performance level, up to
  • e
• PFD value
  • 4.50 x 10⁻⁵
• PFH-value
  • 5.20 x 10⁻¹⁰ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3

Scope of delivery

• Included in delivery
  • Actuators must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
