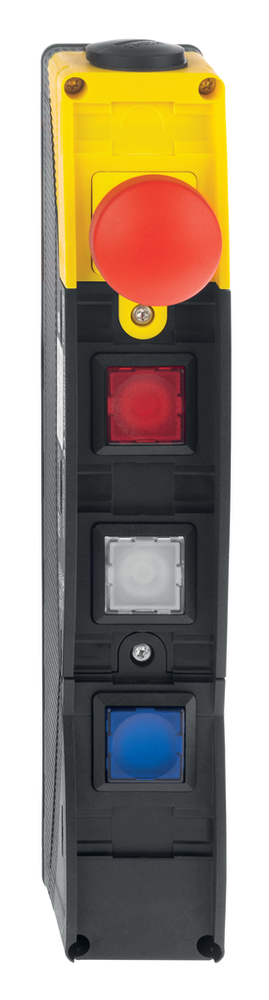

Schmersal 103007782
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
BDF200-NH-11-LT-LT-LT-2875
Schmersal 103007782 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +65 °C
- Degree of protection
- IP65
- Restistance to shock
- 100 g / 6 ms
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Overvoltage category
- III
- Rated impulse withstand voltage U
- 2.5 kV
- Rated insulation voltage U
- 250 VAC
Approvals - Standards
- Certificates
- cULus
Electrical data
- Rated operating voltage
- 24 VDC
- Suitable for low-voltages
- ≥ 5 V / ≥ 1 mA
- Switching principle
- Slow action
- Utilisation category DC-13
- 24 VDC
- 1 A
General data
- Climatic stress
- DIN EN 60068
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight
- 280 g
- Positions used, position 1
- Emergency stop pushbutton
- Positions used, position 2
- Illuminated pushbutton, color exchangeable
- Positions used, position 3
- Illuminated pushbutton; color exchangeable
- Positions used, position 4
- Illuminated pushbutton, color exchangeable
- Standards
- EN ISO 13849-1 | EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 60947-5-5 | EN IEC 60947-1
- Terminal (mechanical)
- Removable screw terminals
General data - Features
- Emergency-Stop button
- Yes
- Front plate mounting
- No
- Removable Terminals
- Yes
- Safety functions
- Yes
Mechanical data
- Mechanical life, Command devices
- 1,000,000 Operations
- Mechanical life, Emergency-Stop button
- 100,000 Operations
- Mounting
- interior mounting holes
- Position of the cable gland
- bottom
- Type of the fixing screws
- 2x M5
Mechanical data - Connection technique
- Cable cross-section of the cable glands, maximum
- 13 mm
- Cable cross-section of the cable glands, minimum
- 6 mm
- Cable entry
- M20 cable gland
- Wire cross-section
- 0.5 mm
Mechanical data - Dimensions
- Depth
- 220 mm
- Height
- 69 mm
- Length x Width x Height
- Depth: 233.5 - 252.5 mm (without and with indicator lamp)
- Width
- 40 mm
Safety classification
- Mission time
- 20 Year(s)
Specifications
- Depth
- 220 mm
- Height
- 69 mm
- Width
- 40 mm
