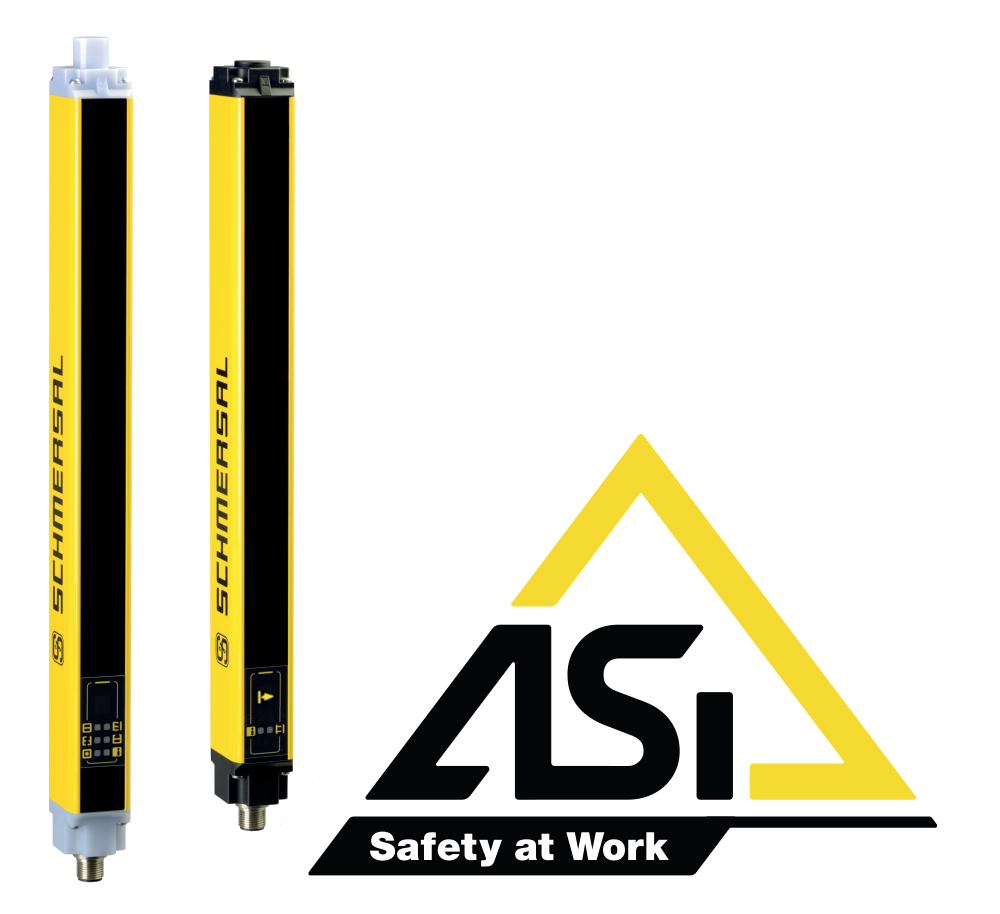

Schmersal 103007435
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SLC440AS-ER-0170-30
Schmersal 103007435 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -10 ... +50 °C
- Degree of protection
- IP67
- Protection class
- III
- Resistance to vibrations
- 10 … 55 Hz, amplitude 0.35 mm
- Restistance to shock
- 10 g / 16 ms
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -25 °C
Ambient conditions - Insulation values
- Degree of pollution
- 2
- Overvoltage category
- III
- Rated impulse withstand voltage U
- 0.8 kV
- Rated insulation voltage U
- 32 VDC
Approvals - Standards
- Certificates
- TÜV | cULus | ASi-SaW
Electrical data - AS Interface
- AS-i Current consumption, maximum
- 50 mA
- Rated operating voltage
- 18 ... 31.6 VDC (Protection against polarity reversal)
Electrical data - AS-Interface specification
- AS-i Input, Channel 1
- Data bits DI 0 / DI 1 = dynamic code transmission
- AS-i Input, Channel 2
- Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Input module address
- 0
- AS-i Outputs, DO 0 … DO 3
- No Function
- AS-i Parameter bits, P0
- No function
- AS-i Parameter bits, P1
- Low beam quality
- AS-i Parameter bits, P2
- No function
- AS-i Parameter bits, P3
- Internal device error (FID)
- AS-i Profile
- S-0.B.F.E
- AS-i Specification
- Safety-Slave
- AS-i Version
- V 3.0
- Note (AS-i Input module address)
- Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
- Note (AS-i Parameter bits)
- Set the parameter outputs to "1111" (0xF) | FID: periphery error
Electrical data - Auxiliary voltage
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- Power consumption, Receiver
- 150 mA
- Power consumption, Transmitter
- 75 mA
- Rated operating voltage
- 24 VDC
General data
- Enclosure material
- Aluminium
- Gross weight
- 530 g
- Reaction time, maximum
- 13 ms
- Standards
- CLC/TS 61496-2 | EN 50295 | EN IEC 62061 | EN ISO 13849-1 | EN IEC 61496-1
- Working principle
- optoelectronic
General data - Features
- 7-segment display
- Yes
- Blanking function
- Yes
- Integral system diagnostics, status
- Yes
- Number of beams
- 8
- Safety functions
- Yes
- Wave length of the sensor
- 880 nm
Mechanical data
- Detection ability for test bodies at v = 1.6 m/s
- 30 mm
- Height of the protection field
- 170 mm
- Range, protection field, maximum
- 10,000 mm
- Range, protection field, minimum
- 300 mm
Mechanical data - Connection technique
- Terminal connector, Recipient
- Connector plug M12, 5-pole
- Terminal, Connector, Transmitter
- Connector plug M12, 4-pole
- Termination
- Connector
Mechanical data - Dimensions
- Height of Receiver
- 303 mm
- Height of the Sensor (Transmitter)
- 283 mm
- Length of sensor
- 33 mm
- Width of sensor
- 27.8 mm
Safety classification
- Category
- 4
- Mission time
- 20 Year(s)
- Performance Level, up to
- e
- PFH value
- 5.17 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
- Safety type in accordance with IEC 61496-1
- 4
- Standards
- EN IEC 62061
Status indication
- Note (LED switching conditions display)
- Green/red LED (AS-i duo LED): Supply voltage / communication error / slave address = 0 / periphery error detected
