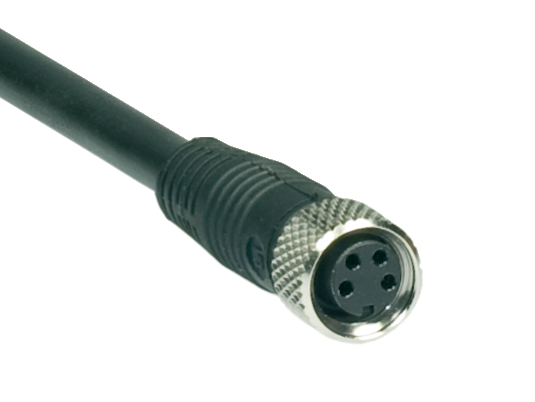

Schmersal 103007356
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
A-K4P-M8-S-G-5M-BK-2-X-X-2
Schmersal 103007356 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (Connector)
- -30 ... +90 °C
- Ambient temperature (fixed)
- -50 ... +90 °C
- Ambient temperature (moved)
- -30 ... +90 °C
- Degree of protection
- IP65 | IP67
Electrical data
- Operating current
- 4,000 mA
- Rated operating voltage
- 30 VDC
- 30 VAC
- Thermal test current
- 4 A
General data
- Gross weight
- 151 g
- Standards
- EN IEC 61076-2-104
General data - Features
- Cable drag chain suitable
- Yes (1)
- Halogen free
- Yes (1)
- Number of poles
- 4
Mechanical data
- Tightening torque, maximum
- 0.6 Nm
Mechanical data - Connection technique
- Bending radius (fixed)
- 5 x Ø-cable
- Bending radius (repeated)
- 10 x Ø-cable
- Cable diameter
- 4.3 mm
- Colour of the Cable mantle
- Black
- Length of cable
- 5 m
- Material of the Cable mantle
- PUR
- Wire cross-section
- 0.34 mm
Mechanical data - connector side A
- Colour of the handle
- Black
- Connector latching
- Screw locking
- Connector typ
- Female connector, M8
- Design
- straight
- Material of the gland
- Metal, CuZn, nickel-plated
- Material of the handle
- Plastic, TPU
Pin assignment
- PIN 1
- Brown
- PIN 2
- White
- PIN 3
- Blue
- PIN 4
- Black
