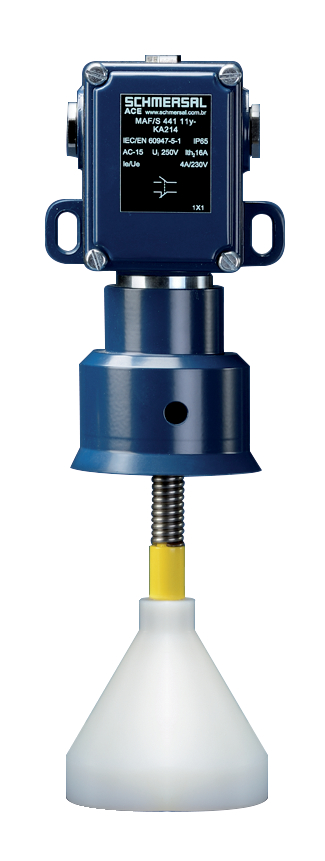

Schmersal 103006789
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MAF/S 441-11Y
Schmersal 103006789 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +90 °C
- Degree of protection
- IP65
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 250 VAC
Electrical data
- Bounce duration, maximum
- 5 ms
- Material of the contacts, electrical
- Silver
- Note (Switching element)
- galvanically separated contact bridges
- Switching element
- NO contact, NC contact
- Switching principle
- Snap action
- Switchover time, maximum
- 35 ms
- Thermal test current
- 16 A
- Utilisation category AC-15
- 4 A
- 250 VAC
General data
- Enclosure coating material
- painted
- Enclosure material
- Aluminium
- Gross weight
- 1,460 g
- Material of the Detection cone
- Plastic
- Standards
- EN IEC 60947-5-1
- Working principle
- mechanical
General data - Features
- Number of normally closed (NC)
- 1
- Number of normally open (NO)
- 1
Mechanical data
- Actuating element
- Detection cone
- Actuating force
- 14 N
- Actuating speed, maximum
- 1 m/s
- Actuating speed, minimum
- 1 mm/min
- Mechanical life, minimum
- 1,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 1.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Diameter of the Detection cone
- 90 mm
- Height of sensor
- 438 mm
- Length of sensor
- 61 mm
- Width of sensor
- 106 mm
