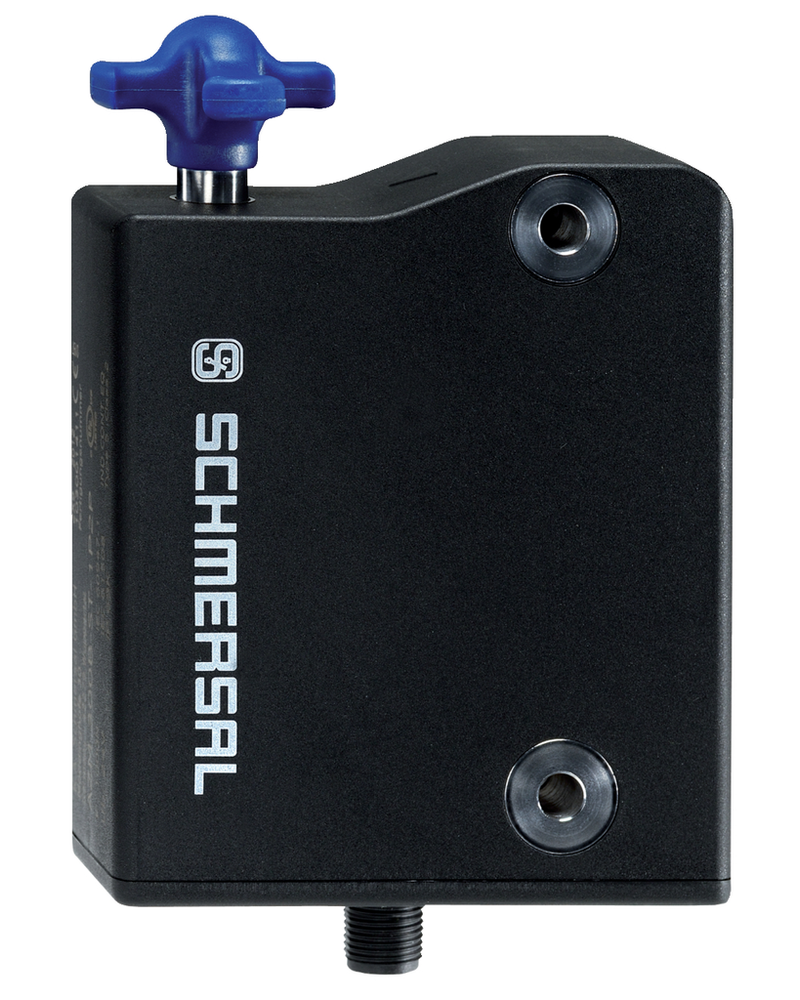

Schmersal 103005918

Accessory

• Recommendation (actuator)
  • AZ/AZM300-B1

Ambient conditions

• Ambient temperature, maximum
  • +60 °C
• Ambient temperature, minimum
  • +0 °C
• Degree of protection
  • IP66 to EN 60529 | IP67 to EN 60529 | IP69K to DIN 40050-9
• Protection rating
  • II
• Resistance to vibrations to EN 60068-2-6
  • 10 … 150 Hz, amplitude 0.35 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +90 °C
• Storage and transport temperature, minimum
  • -10 °C

Ambient conditions - Insulation value

• Degree of pollution to VDE 0100
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approval - Standards

• Certificates
  • TÜV | cULus | ASi-SaW | ECOLAB | EAC | FCC

Electrical data - AS Interface

• AS-i Current consumption, maximum
  • 100 mA
• AS-i Operating voltage AS-i maximum
  • 31.6 VDC
• AS-i Operating voltage, minimum
  • 18 VDC
• Note (AS-i Operating voltage)
  • Protection against polarity reversal

Electrical data - AS-Interface specification

• AS-i Input, Channel 1
  • Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Input, Channel 2
  • Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input module address
  • 0
• AS-i Outputs, DO 0
  • Solenoid control
• AS-i Outputs, DO 1
  • No Function
• AS-i Outputs, DO 2
  • No Function
• AS-i Outputs, DO 3
  • No Function
• AS-i Parameter bits, P0
  • Safety guard closed and can be locked
• AS-i Parameter bits, P1
  • Solenoid interlock locked
• AS-i Parameter bits, P2
  • Auxiliary voltage in
• AS-i Parameter bits, P3
  • Internal device error (FID)
• AS-i Profile
  • S-7.B.F.E
• AS-i Specification
  • Safety-Slave
• AS-i Version
  • V 3.0
• Note (AS-i Input module address)
  • Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  • Set the parameter outputs to "1111" (0xF) | FID: periphery error

Electrical data - Auxiliary voltage

• Operating current
  • 300 mA
• Rated operating voltage
  • 24 VDC -15% / +10% (stabilised PELV)

General data

• Active principle
  • RFID
• Coding level according to ISO 14119
  • High
• Duration of risk, maximum
  • 200 ms
• Enclosure material
  • Glass-fibre, reinforced thermoplastic
• general information
  • Individual coding, multiple teaching
• Gross weight
  • 595 g
• Reaction time, maximum
  • 120 ms
• Standards
  • IEC 61508 | EN 60947-5-1 | EN ISO 14119 | EN 62026-2 | EN ISO 13849-1
• Time to readiness, maximum
  • 5,000 ms

General data - Features

• Guard locking monitored
  • Yes
• Integral System Diagnostics, status
  • Yes
• Latching
  • Yes
• Manual release
  • Yes
• Number of actuating directions
  • 3
• Power to unlock
  • Yes
• Safety functions
  • Yes

Mechanical data

• Clamping force
  • 1,150 N
• Latching force, adjustable, position 1
  • 25 N
• Latching force, adjustable, position 2
  • 50 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Note (Mechanical lifetime)
  • When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)

Mechanical data - Connection technique

• Terminal Connector
  • Connector plug M12, 4-pole, (A-coding)

Mechanical data - Dimensions

• Height of sensor
  • 102.6 mm
• Length of sensor
  • 34.4 mm
• Width of sensor
  • 87.4 mm

Mechanical data - Switching distances according IEC 60947-5-3

• Ensured switch distance "OFF" S
  • 20 mm
• Ensured switch distance "ON" S
  • 1 mm
• Switch distance
  • 2 mm

Pin assignment

• PIN 1
  • AS-Interface +
• PIN 2
  • Aux - (P)
• PIN 3
  • AS-Interface -
• PIN 4
  • Aux + (P)

Safety appraisal

• Control category to EN13849
  • 4
• Mission Time
  • 20 Year(s)
• Performance level, up to
  • e
• PFD value
  • 7.00 x 10⁻⁵
• PFH-value
  • 4.00 x 10⁻¹⁰ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • IEC 61508

Scope of delivery

• Included in delivery
  • Actuators must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • (1) green/red LED (AS-i duo LED): Supply voltage/communication error/slave address = 0/periphery error detected/device error detected/manipulation protection active | (2) LED yellow: Device condition (Enabling status) | (3) LED red: Internal device error
