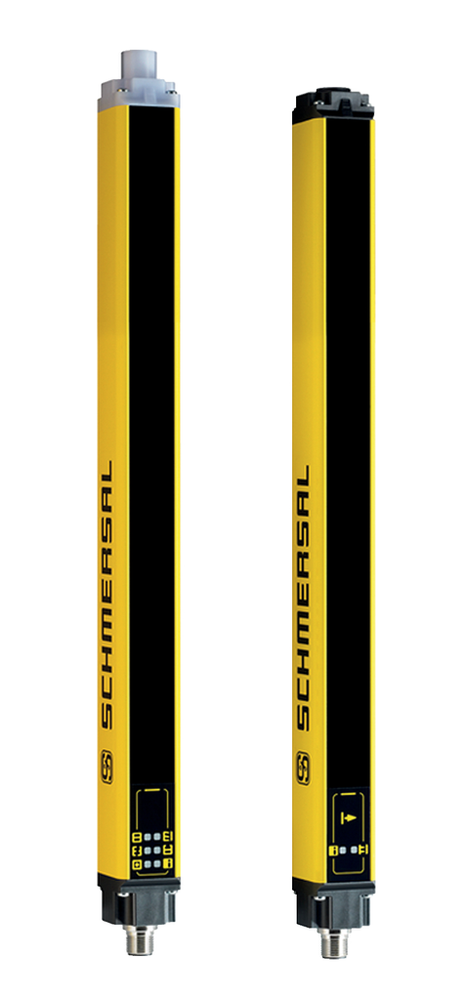

Schmersal 103005389
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SLC445-ER-0410-14-01
Schmersal 103005389 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommended safety switchgear
- SRB-E 301
Ambient conditions
- Ambient temperature
- -25 ... +50 °C
- Degree of protection
- IP67
- Protection class
- III
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -25 °C
Approvals - Standards
- Certificates
- TÜV | cULus
Electrical data
- Electrical power consumption of the receiver, maximum
- 10 W
- Electrical power consumption of the transmitter, maximum
- 5 W
- Switching voltage OSSD, HIGH signal
- 24 V
Electrical data - Safety digital outputs
- Design of control elements
- p-type
- Output current, (fail-safe output), maximum
- 0.25 A
General data
- Enclosure material
- Aluminium
- Gross weight
- 980 g
- Reaction time, maximum
- 10 ms
- Standards
- CLC/TS 61496-2 | EN IEC 61496-1
General data - Features
- 7-segment display
- Yes
- Beam coding available
- Yes
- Blanking function
- Yes
- Clock control possible
- Yes
- Contactor control integrated
- Yes
- Integral system diagnostics
- Yes
- Integral system diagnostics, status
- Yes
- Muting function
- Yes
- Number of beams
- 40
- Number of fail-safe digital outputs
- 2
- Override
- Yes
- Reduced resolution
- Yes
- Restart interlock (manual reset)
- Yes
- Wave length of the sensor
- 880 nm
Mechanical data
- Detection ability for test bodies at v = 1.6 m/s
- 14 mm
- Height of the protection field
- 410 mm
- Range, protection field, maximum
- 7,000 mm
- Range, protection field, minimum
- 300 mm
Mechanical data - Connection technique
- Length of the connectable cable, maximum
- 100 m
- Terminal connector, Recipient
- Connector plug M12, 12-pole
- Terminal, Connector, Transmitter
- Connector plug M12, 4-pole
- Termination
- Connector
Mechanical data - Dimensions
- Height of the Sensor (Receiver)
- 501 mm
- Height of the Sensor (Transmitter)
- 491 mm
- Length of sensor
- 33 mm
- Width of sensor
- 27.8 mm
Note
- Note (General)
- I | In case of failure (interruption of the 0 V supply) the maximum leakage current is 1 mA.
Safety classification
- Category
- 4
- Mission time
- 20 Year(s)
- Performance Level, up to
- e
- PFH value
- 5.14 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
- Safety type in accordance with IEC 61496-1
- 4
- Standards
- EN ISO 13849-1 | EN IEC 62061
Scope of delivery
- Scope of delivery
- Kit with 2 mounting angles
