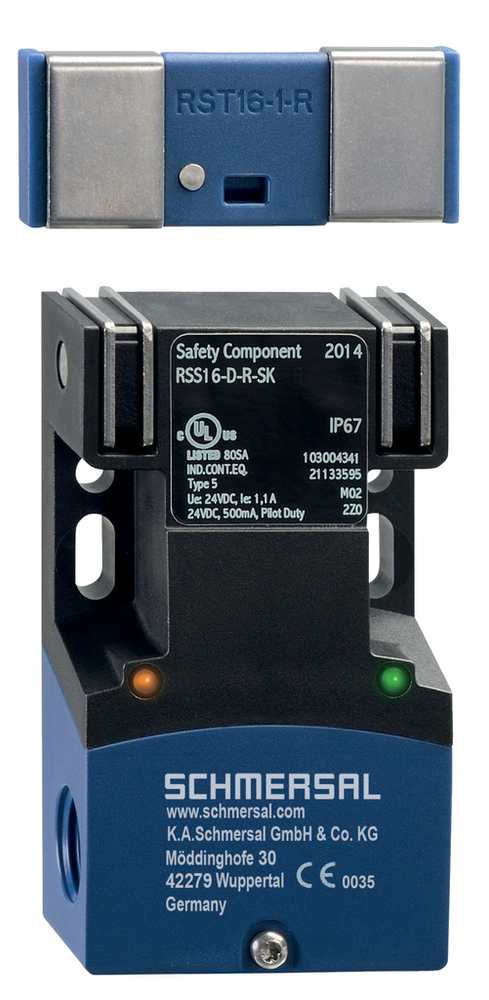

Schmersal 103004341

Accessory

• Recommendation (actuator)
  • RST16-1-R
• Recommended safety switchgear
  • PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC

Ambient conditions

• Ambient temperature
  • -25 ... +70 °C
• Degree of protection
  • IP65 | IP67
• Note (Relative humidity)
  • non-condensing | non-icing
• Permissible installation altitude above sea level, maximum
  • 2,000 m
• Relative humidity, maximum
  • 93 %
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | cULus | FCC | IC | UKCA

Electrical data

• No-load supply current I
  • 100 mA
• Operating current
  • 2,100 mA
• Operating current, minimum
  • 0.5 mA
• Operating voltage
  • 24 VDC -15 % / +10 %
• Rated operating voltage
  • 24 VDC
• Required rated short-circuit current
  • 100 A
• Switching frequency, maximum
  • 1 Hz
• Time to readiness, maximum
  • 2,000 ms

Electrical data - Diagnostic outputs

• Current, Utilisation category DC-12
  • 0.05 A
• Current, Utilisation category DC-13
  • 0.05 A
• Design of control elements
  • p-type
• Operating current
  • 50 mA
• Voltage drop U
  • 2 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Electromagnetic compatibility (EMC)

• EMC rating
  • IEC 60947-3
• Interfering radiation
  • IEC 61000-6-4

Electrical data - Safety digital inputs

• Current consumption of the safety inputs
  • 5 mA

Electrical data - Safety digital outputs

• Current, Utilisation category DC-12
  • 1 A
• Current, Utilisation category DC-13
  • 1 A
• Design of control elements
  • p-type
• Leakage current I
  • 0.5 mA
• Output current, (fail-safe output), maximum
  • 1 A
• Rated operating current (safety outputs)
  • 1,000 mA
• Voltage drop U
  • 1 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Active area
  • Glass-fibre, reinforced thermoplastic
• Coding
  • Universal coding
• Coding level according to EN ISO 14119
  • Low
• Duration of risk, maximum
  • 200 ms
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Gross weight
  • 208 g
• Housing construction form
  • Block
• Installation conditions (mechanical)
  • not flush
• Reaction time, maximum
  • 100 ms
• Sensor topology
  • Sensor for series wiring
• Standards
  • EN IEC 60947-5-3
• Working principle
  • RFID

General data - Features

• Cascadable
  • Yes
• Cross-circuit detection
  • Yes
• Diagnostic output
  • Yes
• Integral system diagnostics, status
  • Yes
• Latching magnet
  • Yes
• Number of fail-safe digital outputs
  • 2
• Number of LEDs
  • 2
• Number of semi-conductor outputs with signaling function
  • 1
• Safety functions
  • Yes
• Series-wiring
  • Yes
• Short circuit detection
  • Yes

Mechanical data

• Active area
  • lateral | front side | cover-side
• Actuating panels
  • front side | rear | from head
• Hysteresis (Switching distance), maximum
  • 2 mm
• Mounting
  • 2 x M5, Cylinder head screw
• Repeat accuracy R
  • 0.5 mm
• Tightening torque of the fixing screws
  • 2 Nm

Mechanical data - Connection technique

• Cable entry
  • 4 x M16 x 1,5
• Note (length of the sensor chain)
  • Cable length and cross-section change the voltage drop dependiing on the output current
• Note (series-wiring)
  • Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
• Termination
  • Screw terminals

Mechanical data - Dimensions

• Height of sensor
  • 30 mm
• Length of sensor
  • 91 mm
• Width of sensor
  • 52 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Assured switching distance "OFF" S
  • 30 mm
• Assured switching distance "ON" S
  • 5 mm
• Switch distance, typical
  • 15 mm

Safety classification

• Category
  • 4
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFD value
  • 1.50 x 10⁻⁵
• PFH value
  • 6.30 x 10⁻¹¹ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • EN ISO 13849-1 | EN IEC 61508

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • Multi-coloured LED: Green, Red | LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault
