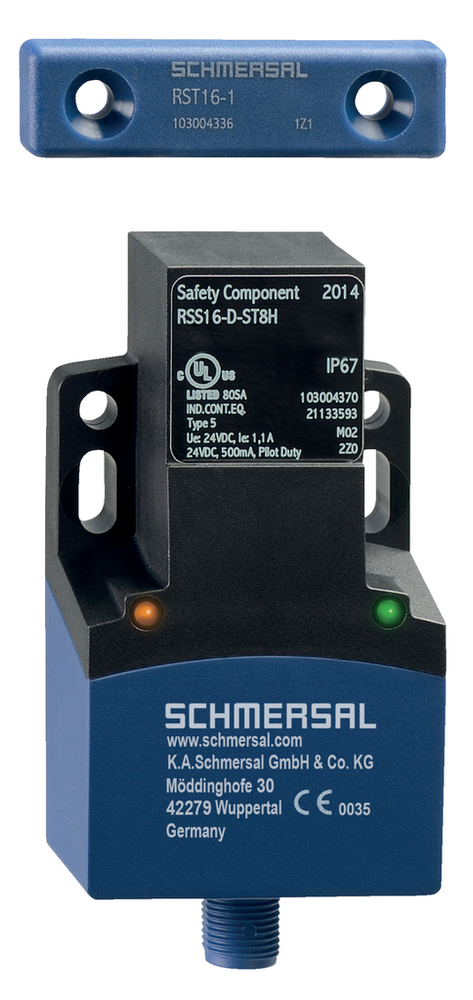

Schmersal 103004339

Accessory

• Recommendation (actuator)
  • RST16-1 | RST-U-2
• Recommended safety switchgear
  • PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC

Ambient conditions

• Ambient temperature, maximum
  • +70 °C
• Ambient temperature, minimum
  • -25 °C
• Degree of protection
  • IP65 to EN 60529 | IP66 to EN 60529 | IP67 to EN 60529
• Protection rating
  • 0
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation value

• Degree of pollution to VDE 0100
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approval - Standards

• Certificates
  • TÜV | cULus | EAC | FCC | IC

Electrical data

• No-load supply current I
  • 100 mA
• Operating current
  • 2,100 mA
• Rated operating voltage, maximum
  • 26.4 VDC
• Rated operating voltage, minimum
  • 20.4 VDC
• Required rated short-circuit current to EN 60947-5-1
  • 100 A
• Switching frequency, approx.
  • 1 Hz
• Voltage type
  • DC (direct current)

Electrical data - Diagnostic output

• Current, Utilisation category DC-12
  • 0.05 A
• Current, Utilisation category DC-13
  • 0.05 A
• Operating current
  • 50 mA
• Versions
  • p-type
• Voltage drop U
  • 2 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Electromagnetic compatibility (EMC)

• EMC rating
  • IEC 60947-3
• Interfering radiation
  • IEC 61000-6-4

Electrical data - Fail-safe digital outputs

• Current leakage I
  • 0.5 mA
• Current, Utilisation category DC-12
  • 1 A
• Current, Utilisation category DC-13
  • 1 A
• Output current, (fail-safe output), maximum
  • 1 A
• Rated operating current (safety outputs)
  • 1,000 mA
• Versions
  • p-type
• Voltage drop U
  • 1 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Active area
  • Glass-fibre, reinforced thermoplastic
• Active principle
  • RFID
• Coding level according to ISO 14119
  • High
• Duration of risk, maximum
  • 200 ms
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• general information
  • Individual coding, multiple teaching
• Gross weight
  • 275 g
• Housing construction form
  • Block
• Installation conditions (mechanical)
  • not flush
• Reaction time, maximum
  • 100 ms
• Sensor topology
  • Sensor for series wiring
• Standards
  • IEC 60947-5-3
• Time to readiness, maximum
  • 2,000 ms

General data - Features

• Cascadable
  • Yes
• Diagnostic output
  • Yes
• Integral System Diagnostics, status
  • Yes
• Number of fail-safe digital outputs
  • 2
• Number of LEDs
  • 2
• Number of semi-conductor outputs with signaling function
  • 1
• Safety functions
  • Yes
• Series-wiring
  • Yes
• Short circuit detection
  • Yes
• Short-circuit recognition
  • Yes

Mechanical data

• Active area
  • lateral | front side | cover-side
• Actuating panels
  • front side | rear | from head
• Hysteresis (Switch distance), maximum
  • 2 mm
• Mounting
  • 2 x M5, Cylinder head screw
• Repeat accuracy R R
  • 0.5 mm
• Tightening torque of nuts, maximum
  • 2 Nm

Mechanical data - Connection technique

• Note
  • The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
• Terminal Connector
  • Connector M12, 8-pole

Mechanical data - Dimensions

• Height of sensor
  • 30 mm
• Length of sensor
  • 91 mm
• Width of sensor
  • 52 mm

Mechanical data - Switching distances according IEC 60947-5-3

• Ensured switch distance "OFF" S
  • 30 mm
• Ensured switch distance "ON" S
  • 12 mm
• Switch distance
  • 15 mm

Safety appraisal

• Control category to EN13849
  • 4
• Mission Time
  • 20 Year(s)
• Performance level, up to
  • e
• PFH-value
  • 6.30 x 10⁻¹¹ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • EN ISO 13849-1 | IEC 60947-5-3 | EN 62061 | IEC 61508

Scope of delivery

• Included in delivery
  • Actuators must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • Multi-coloured LED: Green, Red | LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault
