Schmersal 103003724

Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

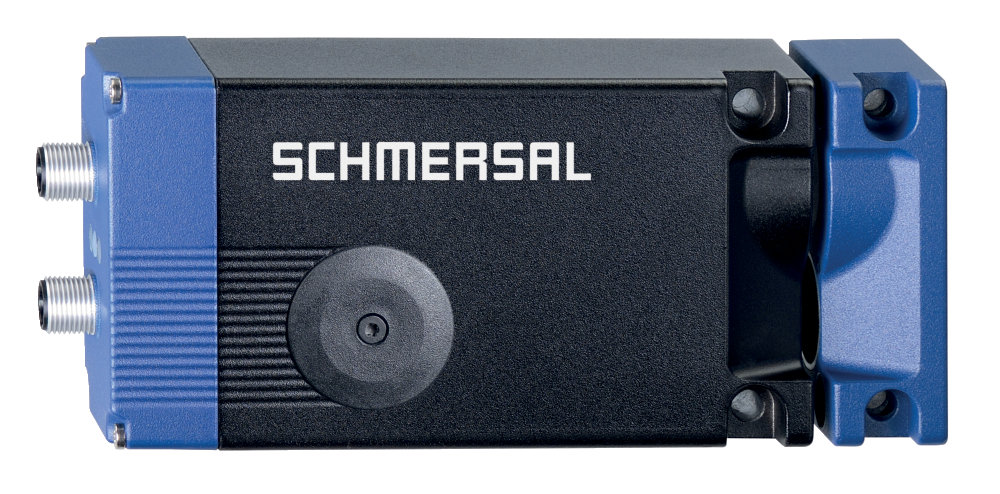

Schmersal 103003724 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommendation (actuator)
- AZM400-B1
Ambient conditions
- Ambient temperature, maximum
- +55 °C
- Ambient temperature, minimum
- -20 °C
- Degree of protection
- IP66 to EN 60529 | IP67 to EN 60529
- Protection rating
- III
- Resistance to vibrations to EN 60068-2-6
- 10 … 150 Hz, amplitude 0.35 mm
- Restistance to shock
- 30 g / 11 ms
- Storage and transport temperature, maximum
- +85 °C
- Storage and transport temperature, minimum
- -40 °C
Ambient conditions - Insulation value
- Degree of pollution to VDE 0100
- 3
- Overvoltage category
- III
- Rated impulse withstand voltage U
- 0.8 kV
- Rated insulation voltage U
- 32 VDC
Approval - Standards
- Certificates
- TÜV | cULus | EAC | FCC | IC
Electrical data
- Current consumption at 24V, maximum
- 15 mA
- Current consumption at 24V, minimum
- 10 mA
- Current consumption, maximum
- 600 mA
- Minimal average cycle time (with continuous operation)
- 20 s
- No-load supply current I
- 100 mA
- Open / close cycle (Motor), minimum
- 3
- Operating current
- 50 mA
- Operating Current
- 100 mA
- Rated operating voltage
- 24 VDC
- Required rated short-circuit current to EN 60947-5-1
- 100 A
- Switching frequency, approx.
- 0.3 Hz
Electrical data - Control inputs
- Allowable discrepancy time (input), maximum
- 10 s
- Classification ZVEI CB24I, Sink
- C0
- Classification ZVEI CB24I, Source
- C1 | C2 | C3
- Switching thresholds of the control inputs
- −3 V … 5 V (Low) | 15 V … 30 V (High)
Electrical data - Diagnostic output
- Current, Utilisation category DC-12
- 0.05 A
- Current, Utilisation category DC-13
- 0.05 A
- Note
- The diagnostic output are not safety relevant outputs!
- Versions
- short-circuit proof, p-type
- Voltage drop U
- 2 V
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
Electrical data - Fail-safe digital inputs
- Classification ZVEI CB24I, Sink
- C1
Electrical data - Fail-safe digital outputs
- Classification ZVEI CB24I, Sink
- C1 | C2
- Classification ZVEI CB24I, Source
- C2
- Current leakage I
- 1.5 mA
- Current, Utilisation category DC-12
- 0.25 A
- Current, Utilisation category DC-13
- 0.25 A
- Rated operating current (safety outputs)
- 250 mA
- Voltage drop U
- 2 V
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
General data
- Active principle
- Magnetic field | RFID
- Coding level according to ISO 14119
- High
- Enclosure material
- Light alloy die-casting
- general information
- Individual coding
- Gross weight
- 692 g
- Reaction time, maximum
- 100 ms
- Standards
- IEC 60947-5-1 | EN ISO 13849-1 | IEC 61508 | EN ISO 14119
- Time to readiness, maximum
- 1,500 ms
General data - Features
- Electronic manual release
- Yes
- Guard locking monitored
- Yes
- Integral System Diagnostics, status
- Yes
- Manual release
- Yes
- Number of diagnostic signals
- 2
- Number of safety contacts
- 2
- Safety functions
- Yes
- Short circuit detection
- Yes
- Short-circuit recognition
- Yes
Mechanical data
- Clamping force in accordance with EN ISO 14119 F
- 10,000 N
- Clamping force, maximum F
- 13,000 N
- Interlocking principle
- bistable
- Lateral force at bolt return, maximal (against locked door)
- 300 N
- Mechanical life, minimum
- 1,000,000 Operations
- Minimum distance devices
- 30 mm
- Note (Lateral force at bolt return)
- Does not apply to emergency exit, Bowden cable and manual release
- Note (Mechanical lifetime)
- Which have a lateral force Ftrans = 100 N: 100.000 operations
- Tightening torque of the screw
- 8 Nm
Mechanical data - Connection technique
- Terminal Connector
- 2 connector M12, 8 and 5 pin
Mechanical data - Dimensions
- Height of sensor
- 166.7 mm
- Length of sensor
- 46.7 mm
- Width of sensor
- 77.8 mm
Pin assignment
- Connection
- Connector 1
- Connector 2
- PIN 1
- A1 Supply voltage UB
- PIN 2
- H2 GND
- E1 Control input 1
- PIN 3
- A2 GND
- n.c.
- PIN 4
- Y1 Safety output 1
- H1 Auxiliary voltage Uhe
- PIN 5
- FE (functional earth connection)
- OUT1 Diagnostic output 1
- PIN 6
- E3 Control input 3
- PIN 7
- Y2 Safety output 2
- PIN 8
- E2 Control input 2
Safety appraisal
- Standards
- IEC 61508 | EN ISO 13849-1
Safety appraisal - Guard locking
- Control category
- 4
- Mission Time
- 20 Year(s)
- Performance level, up to
- e
- PFD value
- 1.60 x 10⁻⁴
- PFH-value
- 1.80 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
Safety appraisal - Interlocking
- Control category
- 4
- Mission Time
- 20 Year(s)
- Performance level, up to
- e
- PFD value
- 9.00 x 10⁻⁵
- PFH-value
- 1.00 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
Scope of delivery
- Delivery scope of Mounting material
- 2 x M6 (10.9)
- Included in delivery
- Actuators must be ordered separately.
Status indication
- Note (LED switching conditions display)
- Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
