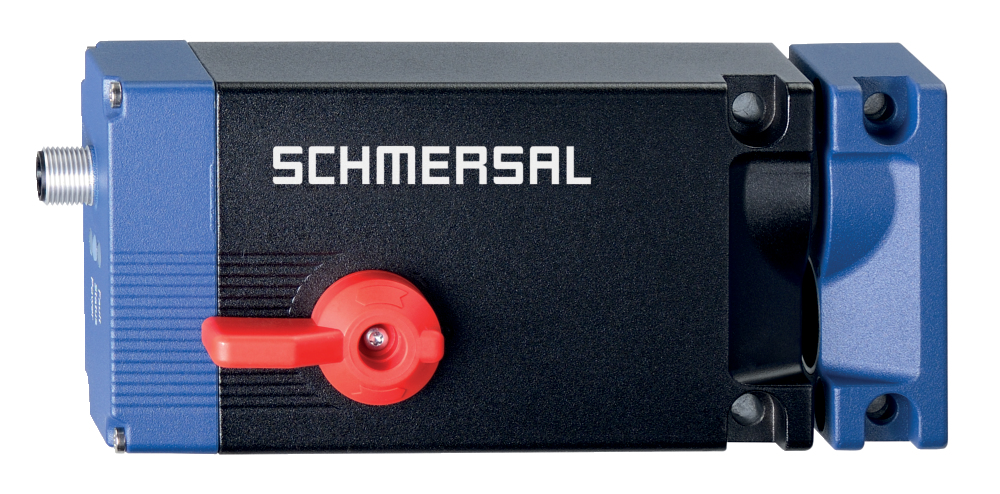

Schmersal 103003593

Accessory

• Recommendation (actuator)
  • AZM400-B1

Ambient conditions

• Ambient temperature
  • -20 ... +55 °C
• Degree of protection
  • IP67 | IP66
• Note (Relative humidity)
  • non-condensing | non-icing
• Permissible installation altitude above sea level, maximum
  • 2,000 m
• Protection class
  • III
• Relative humidity, maximum
  • 93 %
• Resistance to vibrations
  • 10 … 150 Hz, amplitude 0.35 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -40 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | cULus | FCC | IC

Electrical data

• Current consumption, maximum
  • 600 mA
• External wire and device fuse rating
  • 2 A gG
• Minimal average cycle time (with continuous operation)
  • 20 s
• No-load supply current I
  • 100 mA
• Open / close cycle (motor), minimum
  • 3
• Operating current
  • 50 mA
• Operating voltage
  • 24 VDC -15 % / +10 % (stabilised PELV power supply)
• Rated operating voltage
  • 24 VDC
• Required rated short-circuit current
  • 100 A
• Switching frequency, maximum
  • 0.3 Hz
• Time to readiness, maximum
  • 1,500 ms

Electrical data - Control inputs Guard locking function

• Allowable discrepancy time (input), maximum
  • 10 s
• Classification ZVEI CB24I, Sink
  • C0
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Current consumption at 24V, maximum
  • 10 mA
• Current consumption at 24V, minimum
  • 5 mA
• Switching thresholds of the control inputs
  • −3 V … 5 V (Low) | 15 V … 30 V (High)

Electrical data - Diagnostic outputs

• Current, Utilisation category DC-12
  • 0.05 A
• Current, Utilisation category DC-13
  • 0.05 A
• Designation, Diagnostic outputs
  • OUT
• Design of control elements
  • short-circuit proof, p-type
• Note
  • The diagnostic output are not safety relevant outputs!
• Voltage drop U
  • 2 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Safety digital outputs

• Classification ZVEI CB24I, Sink
  • C1 | C2
• Classification ZVEI CB24I, Source
  • C2
• Current, Utilisation category DC-12
  • 0.25 A
• Current, Utilisation category DC-13
  • 0.25 A
• Designation, Safety outputs
  • Y1 and Y2
• Design of control elements
  • short-circuit proof, p-type
• Leakage current I
  • 0.5 mA
• Rated operating current (safety outputs)
  • 250 mA
• Test pulse duration, maximum
  • 0.5 ms
• Test pulse interval, typical
  • 1000 ms
• Voltage drop U
  • 2 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Coding
  • Universal coding
• Coding level according to EN ISO 14119
  • Low
• Enclosure material
  • Light alloy die-casting
• Frequency band RFID
  • 125 kHz
• Gross weight
  • 846 g
• Reaction time, switching off safety outputs via actuator, maximum
  • 100 ms
• Standards
  • EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
• Transmitter output RFID, maximum
  • -6 dB/m
• Working principle
  • Magnetic field | RFID

General data - Features

• Cross-circuit detection
  • Yes
• Emergency exit
  • Yes
• Integral system diagnostics, status
  • Yes
• Number of diagnostic signals
  • 1
• Number of safety contacts
  • 2
• Safety functions
  • Yes
• Short circuit detection
  • Yes
• Solenoid interlock monitored
  • Yes

Mechanical data

• Angular misalignment between solenoid interlock and actuator, maximum
  • 2 °
• Holding force F
  • 13,000 N
  • 10,000 N
• Interlocking principle
  • bistable
• Lateral force at bolt return, maximal (against locked door)
  • 300 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Minimum distance devices
  • 30 mm
• NOTE_DESIGN_MOUNTING_SCREW
  • Property class min. 10.9
• Note (Lateral force at bolt return)
  • Does not apply to emergency exit, Bowden cable and manual release
• Note (Mechanical life)
  • Which have a lateral force Ftrans = 100 N: 100.000 operations
• Tightening torque of the screw
  • 8 Nm
• Type of the fixing screws
  • 2x M6

Mechanical data - Connection technique

• Termination
  • Connector M12, 8-pole, A-coded

Mechanical data - Dimensions

• Height of sensor
  • 156.7 mm
• Length of sensor
  • 65.3 mm
• Width of sensor
  • 77.8 mm

Pin assignment

• PIN 1
  • A1 Supply voltage UB
• PIN 2
  • E1 Control input 1
• PIN 3
  • A2 GND
• PIN 4
  • Y1 Safety output 1
• PIN 5
  • OUT Diagnostic output
• PIN 6
  • E3 Control input 3
• PIN 7
  • Y2 Safety output 2
• PIN 8
  • E2 Control input 2

Safety classification

• Standards
  • EN ISO 13849-1 | EN IEC 61508

Safety classification - Guard locking function

• Category
  • 4
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFD value
  • 1.60 x 10⁻⁴
• PFH value
  • 1.80 x 10⁻⁹ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3

Safety classification - Interlocking function

• Category
  • 4
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFD value
  • 9.00 x 10⁻⁵
• PFH value
  • 1.00 x 10⁻⁹ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
