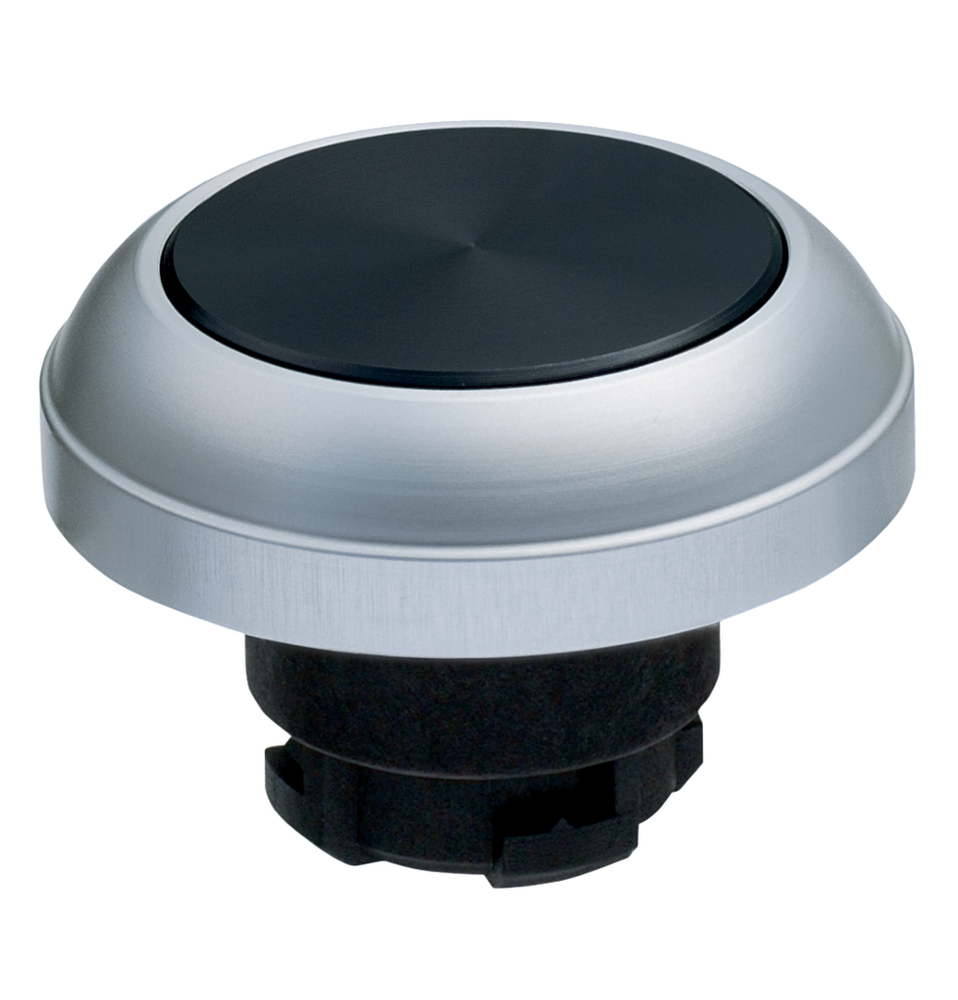

Schmersal 103002103
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EX-RDTSW/510D
Schmersal 103002103 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature, maximum
- +55 °C
- Restistance to shock
- 50 g
Approval - Standards
- Certificates
- TÜV | TÜV EX
Explosion protection
- Explosion protection category
- 2D | 2G
- Explosion protection designation
- II 2G Ex ib IIC Gb | II 2D Ex ib IIIC Db
- Explosion protection: regulations
- EN 60079-0 | EN 60079-11 | EN 60079-31 | EN 60079-14
- Explosion protection zones
- 22 | 2 | 1 | 21
General data
- Colour of the front ring
- Silver
- Colour of the operating element
- Black
- Design
- Round
- Gross weight
- 67 g
- Material of the front ring
- Aluminium
- Material of the identification label
- Stainless steel (V4A)
- Standards
- IEC 60947-5-1 | EN 60947-5-1 | IEC 60947-5-5 | IEC/EN 60947-1 | EN ISO 13849-1
Mechanical data
- Actuating force, approx.
- 1.5 N
- Actuating stroke
- 4 mm
Mechanical data - Dimensions
- Diameter hole
- 22.3 mm
- Diameter hole, with tolerance indication
- 22,3 + 0,4 mm
- Diameter of touch surface
- 28 mm
- Height
- 11 mm
- Height of touch surface
- 0.5 mm
- Spacing
- 40 x 50 mm
- Thickness of the front panel, maximum
- 6 mm
- Thickness, of the front panel, minimum
- 1 mm
Safety appraisal
- Mission Time
- 20 Year(s)
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 100,000 Operations
Specifications
- Height
- 11 mm
