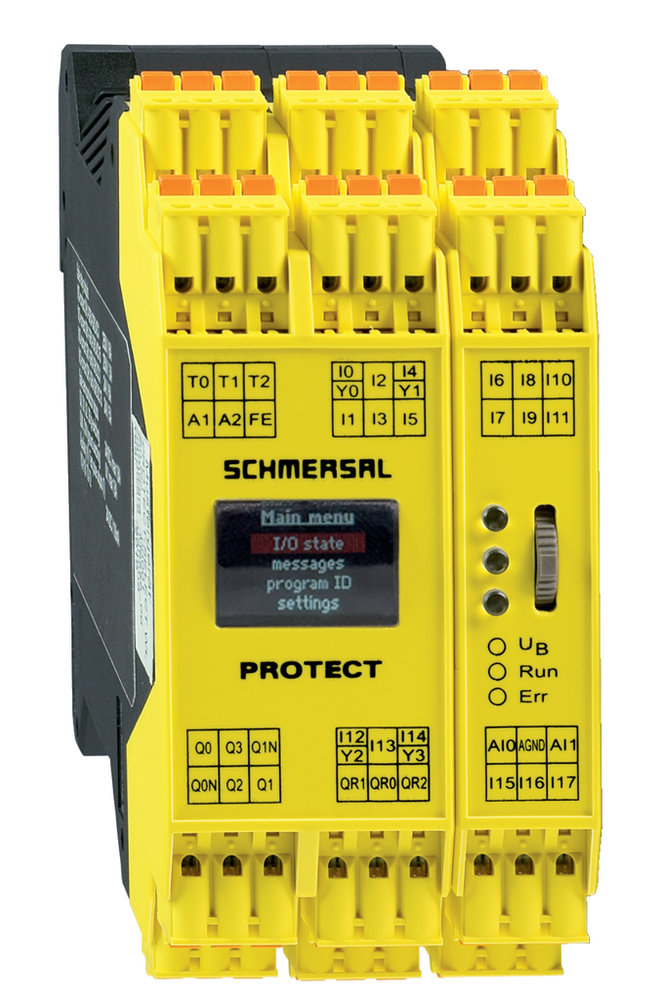

Schmersal 101218030

Ambient conditions

• Ambient temperature
  • -25 ... +55 °C
• Degree of protection
  • IP20
• Degree of protection of the mounting space
  • IP54
• Note (Relative humidity)
  • non-condensing
• Relative humidity, maximum
  • 90 %
• Relative humidity, minimum
  • 15 %
• Resistance to vibrations
  • 10 … 57 Hz, amplitude 0.75 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +75 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 2
• Overvoltage category
  • III

Approvals - Standards

• Certificates
  • TÜV | cULus | CCC

Electrical data

• Current consumption at 24V, maximum
  • 500 mA
• Material of the contacts, electrical
  • Tin
• No-load supply current I
  • 500 mA
• Note (Electrical data, Fuse rating)
  • slow blow
• Operating voltage
  • 12 VDC -10 % / +10 %
• Rated operating voltage
  • 12 VDC
• Required rated short-circuit current
  • 1,000 A
• Switching frequency, maximum
  • 0.1 Hz

Electrical data - Diagnostic outputs

• Design of control elements
  • Limited short-circuit protection, p-type
• Operating current
  • 100 mA

Electrical data - Electromagnetic compatibility (EMC)

• EMC rating
  • EMC-Directive

Electrical data - Safe relay outputs

• Current, Utilisation category AC-1
  • 4 A
• Current, Utilisation category AC-15
  • 3 A
• Current, Utilisation category DC-1
  • 4 A
• Current, Utilisation category DC-13
  • 4 A
• Voltage, Utilisation category AC-1
  • 250 VAC
• Voltage, Utilisation category AC-15
  • 230 VAC
• Voltage, Utilisation category DC-1
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Safety digital inputs

• Current consumption at 24 V
  • 6 mA
• Switching thresholds
  • -3 V … 2 V (LOW) | 18 V … 28.8 V

Electrical data - Safety digital outputs

• Design of control elements
  • short-circuit proof, p-type / n-type (Q0/0N and Q1/1N) | short-circuit proof, p-type (Q2 und Q3)
• Leakage current I
  • 2 mA
• Rated operating current (safety outputs)
  • 700 mA

General data

• Climatic stress
  • EN 60068-2-1 | EN 60068-2-2 | EN 61496
• Enclosure material
  • Polyamide / V0
• Gross weight
  • 300 g
• Standards
  • EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1
• Terminal (mechanical)
  • Removable screw terminals

General data - Features

• Automatic reset function
  • Yes
• Cross-circuit detection
  • Yes
• Earth connection detection
  • Yes
• Feedback circuit
  • Yes
• Integral system diagnostics, status
  • Yes
• Integrated Display, Supply Voltage
  • Yes
• Number of digital fail-safe in-/outputs
  • 4
• Number of digital fail-safe inputs
  • 14
• Number of fail-safe analogue inputs
  • 2
• Number of fail-safe digital outputs
  • 4
• Number of pulse outputs (test pulse output)
  • 3
• Number of relay outputs (1-channel)
  • 2
• Number of signalling outputs
  • 4
• Removable Terminals
  • Yes
• Reset edge detection
  • Yes
• Short circuit detection
  • Yes
• Start input
  • Yes
• Start-up test
  • Yes
• Wire breakage detection
  • Yes

Mechanical data

• Mechanical life, minimum
  • 10,000,000 Operations
• Mounting
  • Snaps onto standard DIN rail to EN 60715

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm²
• Cable section, minimum
  • 0.25 mm²
• Terminal designations
  • IEC 61131-2 | IEC/EN 60947-1
• Termination
  • rigid or flexible
• Tightening torque of Clips
  • 0.6 Nm

Mechanical data - Dimensions

• Depth
  • 118 mm
• Height
  • 100 mm
• Width
  • 52.5 mm

Other data

• Note (applications)
  • Safety sensor | Guard system | Emergency-Stop button | Pull-wire emergency stop switches | Safety light curtain

Safety classification

• Category
  • 4
  • 2
• Common Cause Failure (CCF), minimum
  • 65
• Demand rate
  • high or continuous
• Diagnostic Coverage (DC) Level
  • 99
• Hardware fault tolerance (HFT)
  • 1
• Mission time
  • 20 Year(s)
• Notice
  • Valid for dual channel and 60% relay load
• Performance Level, up to
  • d
  • e
• PFH value
  • 1.78 x 10⁻⁸ /h
• Safe Failure Fraction (SFF), minimum
  • 90
• Safety Integrity Level (SIL), suitable for applications in
  • 2
  • 3
• Standards
  • EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 62061 | EN IEC 61508

Specifications

• Depth
  • 118 mm
• Height
  • 100 mm
• Width
  • 52.5 mm
